Summary of Contents for Visual Land V-MOTION 904

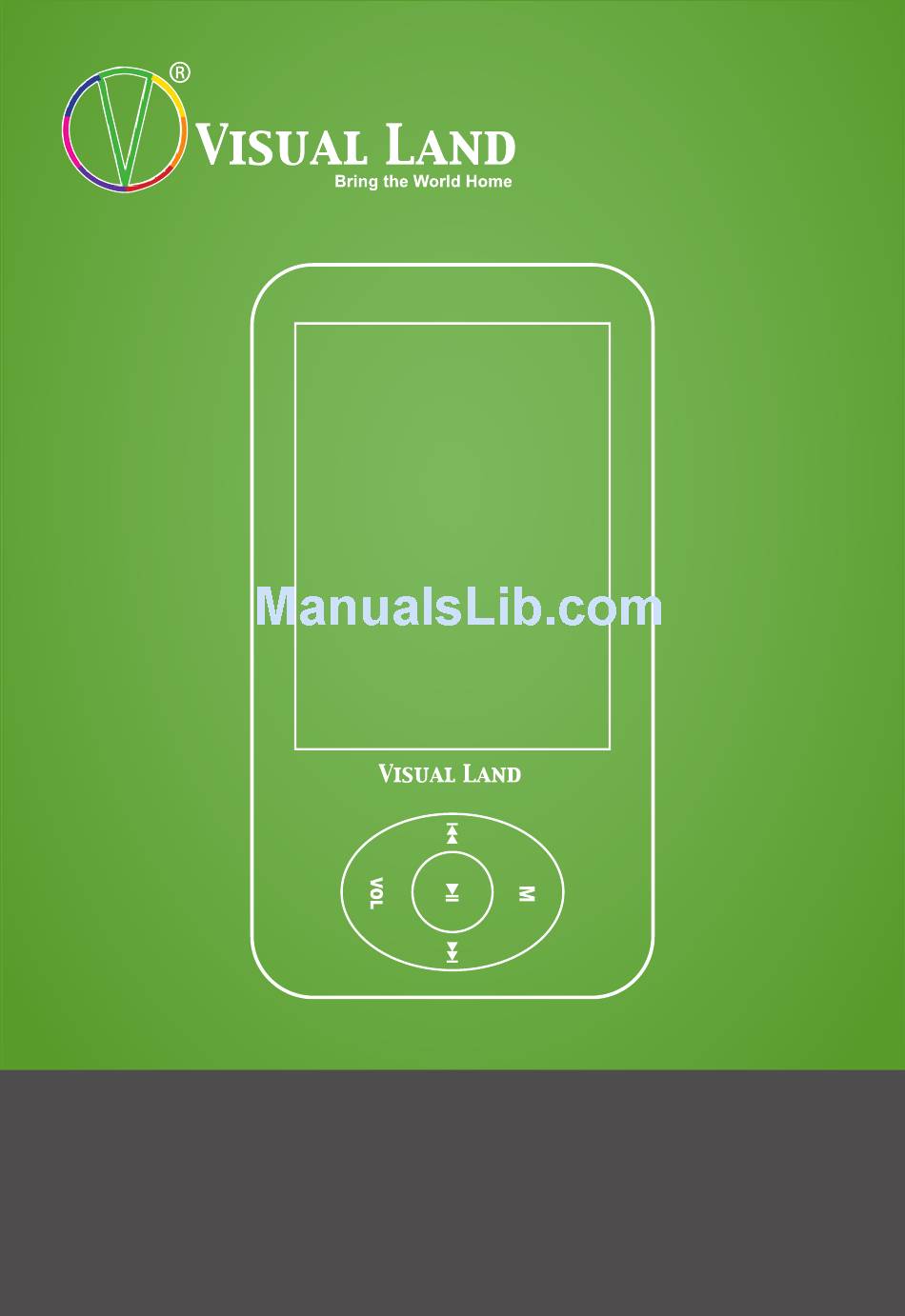

  • Page 1 V-MOTION PRO MANUAL 904 Series...
  • Page 2: Table Of Contents

    Table Of Contents Basic Features System Requirements Powering On/Off Low Battery Controls Additional Controls PC Connection Charger Connection File Storage Music Pictures Videos Camera Video Recorder Recordings FM Radio E-Book Tools Games File Navigation Settings Troubleshooting Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 3: Basic Features

    Video Card: 640 * 480 or more models, at least High Color (16 bit) POWERING ON/OFF • Hold the power switch (located at the top of the player) to the right for 2-3 seconds to power on. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 4: Low Battery

    CONTROLS M: In each section it will bring up additional options as a sub-menu interface. ◄: push once to switch to previous; press and hold to rewind within the file. ►: push once to switch to next; press and hold to fast-forward within the file. MENU: (represented by a 4-Line Icon): Return to Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 5: Additional Controls

    5 seconds, the player will accept the change and exit the volume window automatically. PC CONNECTION • Use the supplied USB cable to connect a PC with the player. Select a mode to enter. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 6: Charger Connection

    Play” if you wish to use your player with an external power source, otherwise select “USB Charging” to charge your player. FILE STORAGE Different types of files should be stored in differ- ent directories, such as: music files to be placed in the MUSIC directory, recorded audio files should be placed in the RECORD directory, and so on, other- Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 7: Music

    • My music list: a total of five play lists, users can change these playlists according to their demand to classify songs. • Dir listing: Built-in memory, external memory. Built-in Memory displays music files stored internally. External Memory displays music files stored externally. If external card is connected, Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 8 When the songs are in play or pause, press and hold ◄ / ► button to fast forward or rewind within the song. Press ◄ / ► buttons to switch to the previous song or the next song. During music playback, press the M button to enter sub-menu: 1. AB Repeat Select “AB Repeat”, press ►ll buttons, when the screen displays “A-”, the player is confirm- ing A; press ►ll button again, when the screen displays “-B”, the A-point is set, the player is Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 9 M button to select the different bars (Selected Bar is yellow), press◄ / ► buttons to change values. “SRS User Mode” allows you create your own SRS equalizer settings: adjust settings similar to User EQ. “FADEIN/FADEOUT” allows you to enable fading between songs. 5. Replay times Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 10 Once entered select the appropriate list and returned to the previous screen. At this point, this song has been added to the playlist. 12. Delete the Files Press ►ll to enter the interface to delete or undelete. 13. Information Displays any information related to the current song. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 11: Pictures

    When manually browsing a particular image, press the M button to enter sub-menu: • Rotate: Select the desired rotation angle: 90, 180 or 270 degrees. • Zoom: choose to zoom in or out. Press ◄ / ► Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 12 • Set as Shutdown: set the current picture as your shutdown picture. • Delete the File: deletes the current picture. • Information: displays the current picture’s file information. PICTURE COMPATIBILITY The V-Motion Pro supports JPG, GIF and BMP files. Recommended settings are 320x240. Larger files can be displayed however the larger the file, the longer it will take to display. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 13: Videos

    • In the playback interface, press the M button to enter the sub-menu: • Play, Pause: press ►ll button, switch between play or pause. • Note: This mode does not support multi-tasking function. • Fast forward, rewind: When the file is playing or paused, press and hold ◄ / ► buttons to re- wind or fast-forward within the current video file. • File Switch • When the file is playing or paused, press the ◄ / ► buttons to switch to the next or previous file. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 14: Video Format Compatibility

    Note: These are the recommended settings for best possible playback. A majority of video files downloaded from the inter- net are playable on the V-Motion Pro without prior conversion. However should you need to convert videos for playback, you may download a conversion program from our website: http://www.visual-land.com/downloads/MP4Tools. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 15: Camera

    × 768, 1280 × 960. The default is 1280 × 960. • Self-timer: off (default), 5 seconds, 10 seconds, 15 seconds, 20 seconds. • Shutter sound: off, audio 1 (default), Sound 2, Sound 3. • Date stamp: off (default), date, date and Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 16: Video Recorder

    • Special effect: None (default), Black and White, Retro, Negative. • Save Path: internal memory and external memory (if there is no card, it is not shown). • Resolution: 320 × 240 (default), 224 × 176, 176 × 144. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 17: Recordings

    3. Recording Volume: adjust recording volume: 1-7. FM RADIO In the main menu, select “radio”, to enter the FM Radio function. Note: the player will enter the Radio Interface only after it has detected headphones connected to the player. In the playback interface, press ►ll button to switch Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 18 3. Recording Quality: similar to Audio Recording. 4. Save\Delete the Station: press ►ll button to save the current station, the saved location can be selected in the station list. After saving, the current station can be deleted. 5. Scanning • Manual Scanning: In normal mode, press ◄ / ► buttons to search stations, long press for Quick Search. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 19: E-Book

    Note: To stop the radio, press ►ll button while in the radio function to pause the sound. Then exit the radio function. E-BOOK In the Main Menu, select “e-book” to enter the E- book function: • Now reading: displays last file read. • Dir list: lists all available e-book files in “Internal Memory” or “External Memory.” Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 20: Delete Files

    3-15 seconds, 3 seconds a step, the default is 6 seconds. 4. Fonts Change the font size to small, medium or large. 5. Bookmark Press ►ll button will bookmark the current page. 6. Delete Files Deletes the current file. Note: E-Book files must be in standard TXT format. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 21: Tools

    PC with the USB cable. Select “Power & Play”. Go to your “Tools” then “PC Camera”. Selecting “PC Camera” will automatically put it into web- cam state and should be immediately useable Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 22: Games

    2. Audio output: Select to turn on or off game sound 3. Keyboard mapping: sets the functions of each of the buttons for game play. 4. Display mode: set the normal display or full screen display. • Exit: Exits back to main menu. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 23: File Navigation

    If a MicroSD card is present, you can choose between “Internal Memory” (player’s internal memory) or “External Memory” (MicroSD card). Select a folder for file navigation, press ►ll button, it will display a list of all the files in that folder. Select the desired file. Press ►ll to open it. Press M button to enter sub-menu: “Move”, “Copy”: press ►ll button to move or copy a document to another folder. “Delete”: press ►ll button to delete the file, confirm delete files. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 24: Settings

    If the backlight timer is off, the screen will never turn off. If the backlight timer is set, the player’s screen will turn off after the specific set time. 4. Power Saving: • Idle Time: Off, 10 seconds, 30 seconds, 1 minute, 3 minutes, 5 minutes, 10 minutes. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 25 • Player Information: Shows basic player information: player name, firmware version, internal storage, external card storage. • Desktop Theme: Choose between multiple desktop themes. • Key Tone: Choose between multiple key tones for button presses or turn off the key Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 26: Troubleshooting

    USB or wall charger, then try to power on. No sound in earphones Check if the volume has been set to 0. Check if the earphones are fully plugged in. Loud Noise Check whether the earphone plug is clean, dirt can cause noise. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 27 Check whether the HOLD lock is on. Cannot download files Check whether the player is properly connected to the computer. Check whether the internal memory storage space is full. Check whether the USB cable is damaged. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 28 Do not attempt to repair or modify the player. • Do not attempt to replace the battery. • Do not listen to the player using headphones at a high volume, so as to avoid adverse effects on hearing. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 29 • Please dispose of packaging waste, batteries, old electronic products according to its classification. If you have a problem with your player please visit our website and view our support pages. http://www.visual-land.com Copyright © 2011 Visual Land Inc. Copyright©2011 Visual Land Inc. www.visual-land.com...
  • Page 30 Copyright©2011 Visual Land Inc.
