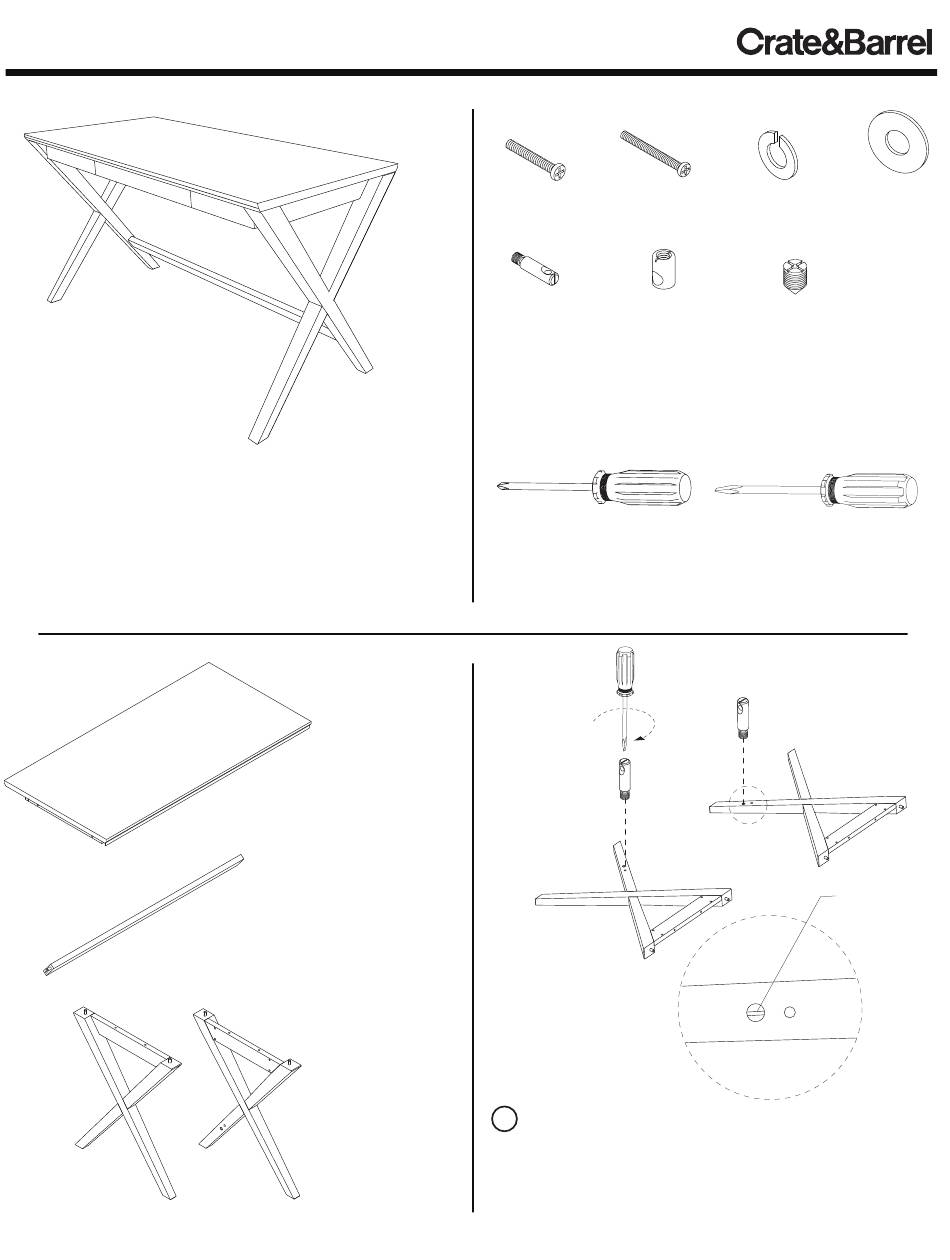

Crate&Barrel Spotlight Large Assembly Instructions

SPOTLIGHT
Thank you for purchasing the Spotlight Large Desk.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
1 - crossbar
Made in Vietnam - r03
LARGE DESK
1 - tabletop
assembly
2 - leg frames
(1 left, 1 right)
Customer Service 800.967.6696 | Lastest instructions available at www.crateandbarrel.com
HARDWARE
4 - long
8 - short
bolts
bolts
2 - screw 2 - barrel
posts nuts
Missing hardware? Please call 800.606.6387 for replacements.
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
NOTE:
Do not over
tighten screw
posts
left leg frame
Lay both leg frames face down on a clean, padded
1
surface as shown. Insert 1 screw post into each leg and
secure with a flat head screwdriver. Note: Make sure to
align slot on top of screw post parallel to leg. Do not over
tighten screw posts.
12- spring
12 - flat
washers
washers
2 - set screws
flat head screwdriver
right leg frame
NOTE:
Make sure to align
slot of screw post
parallel to leg
Page 1 of 2
