A s s e m b l y
G u i d e
T9250, T9350HRT
T9450HRT
AND
FOLDING TREADMILLS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Folding Treadmill. T9350HRT T9350HRT and is the answer not in the manual?

Questions and answers

Related Manuals for Vision Fitness Folding Treadmill. T9350HRT T9350HRT

Summary of Contents for Vision Fitness Folding Treadmill. T9350HRT T9350HRT

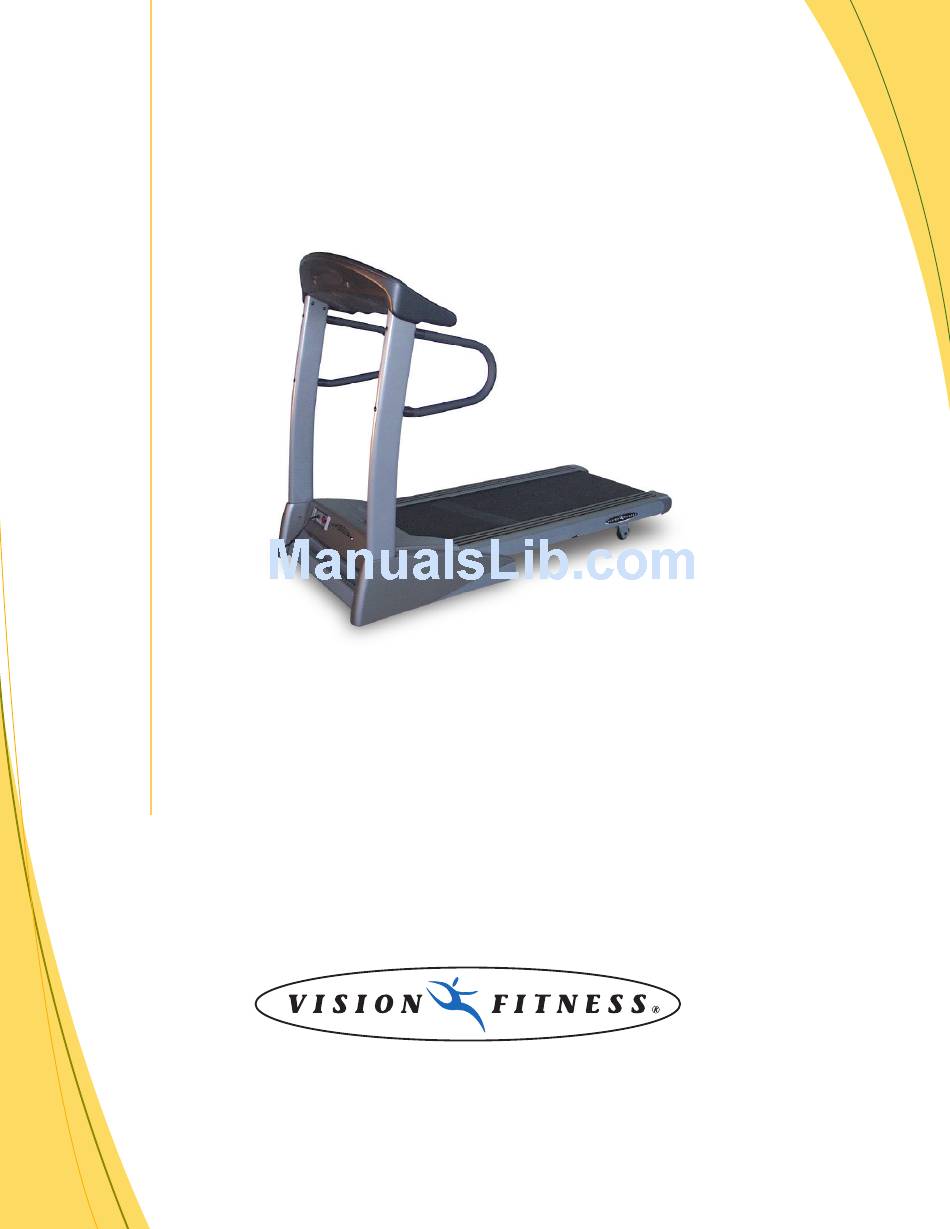

  • Page 1 A s s e m b l y G u i d e T9250, T9350HRT T9450HRT FOLDING TREADMILLS...
  • Page 2 T9250, T9350HRT AND T9450HRT To avoid possible damage to this Folding Treadmill, please follow these assembly steps in the correct order. Before proceeding though, find your new Folding Treadmill’s serial number, located on the underside of the main frame, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
  • Page 3 TOOLS, HARDWARE, & PARTS INCLUDED 5mm Allen Wrench PARTS BOX Water Bottle, Qty: 1 Heart Rate Chest Strap, Qty: 1 Color-coded Hardware Bags 8mm Allen Wrench ( Except T9250 ) Owner’s Guide Assembly Guide Warranty Card Screwdriver...
  • Page 4 HARDWARE INCLUDED PINK BAG ORANGE BAG M8 x 20L Bolts M8 x 20L Bolts Quantity: 2 Quantity: 4 M8 x 50L V-Head Bolts Quantity: 2 BLUE BAG M4 x 12L V-head Screw Quantity: 2 M4 x 12L V-head Flat Screw M8 x 135L Bolts Quantity: 4 Quantity: 4...
  • Page 5 STEP STEP STEP STEP ORANGE BAG • Fold up the right-hand console mast to the vertical position. Be sure not to pinch the data cables. • Insert the bolt (M8 x 50L) in the side and tighten with the blue-handled 5mm Allen Wrench.
  • Page 6 PINK BAG STEP • Mount the right-hand side mount handlebars to the console mast using two bolts (M8 x 135L). Repeat this on the left-hand side. • Plug in the large data cable into the large plug connection in the connection box on the right-hand side of the console.
  • Page 7 AUTO-CALIBRATION STEP Once the treadmill is plugged in, you need to perform an Auto-Calibration to assure maximum performance. MODELS T9350HRT & T9450HRT: DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO-CALIBRATION • You need to access User Engineering Mode to run the Auto-Calibration. With the Safety Key in place, please hold down SPEED DOWN and SELECT for 5 seconds.
  • Page 8 STEP 500 South CP Avenue • P.O. Box 280 • Lake Mills, WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2004 Vision Fitness. All Rights Reserved. 7.04 Part #Z92TM42C-AG AG18.31PRD REV1 BELT TENSION • If the running belt slips when used,...
