Vision Fitness S7200HRT Assembly Manual

Suspension elliptical trainer

Hide thumbs Also See for S7200HRT:

Download this manual See also: Owner's Manual

Enlarged version

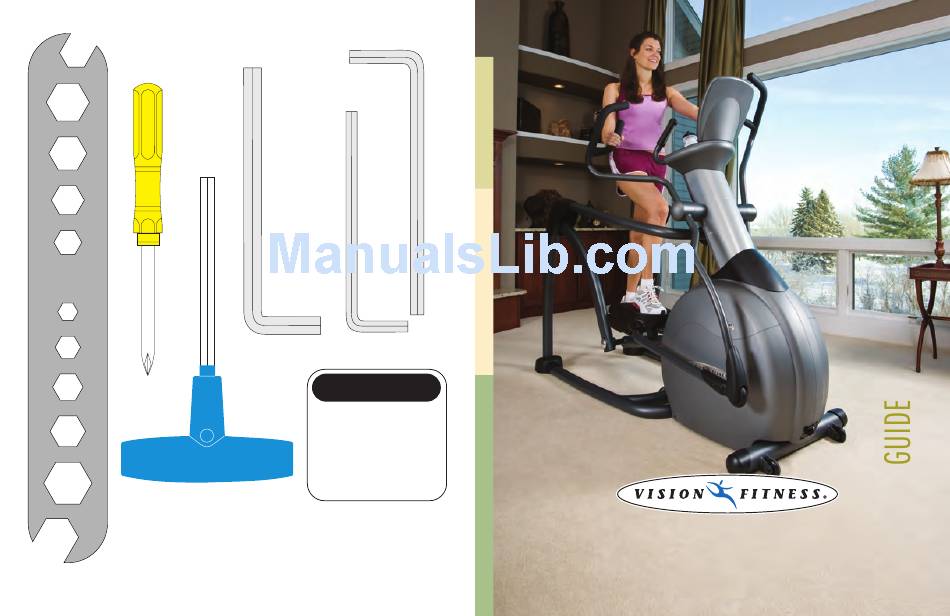

TOOLS & PARTS INCLUDED

6mm L-Shaped Wrench

Screwdriver

8mm L-Shaped Wrench

5mm L-Shaped Wrench

PARTS BOX

ASSEMBLY

Power Cord

Console Mast Bracket

Console Mast Cover

Accessory Tray

Color-coded Hardware Bags

Owner's Guide

Assembly Guide

Warranty Card

6mm T-Shaped Wrench

500 South CP Avenue • P .O. Box 280 • Lake Mills, WI 53551

toll free 800.335.4348 • phone 920.648.4090 • fax 920.648.3373

S7200HRT

www.visionfitness.com

SUSPENSION ELLIPTICAL

™

US 5813949, US 5813949, US 5924962, US 5938567, US 6135927, US 6149551, US 7316633, TW 364373, TW 371899, CN 99808486.7

Multi-Wrench,

TRAINER

4.08

AG18.57PRD

Qty. 2

REV2

Page 1 800.335.4348 • phone 920.648.4090 • fax 920.648.3373 S7200HRT www.visionfitness.com 2008 Vision Fitness. All Rights Reserved. May be covered by one or more patents or patents pending: US 5540637, US 5573480, SUSPENSION ELLIPTICAL ™ US 5813949, US 5813949, US 5924962, US 5938567, US 6135927, US 6149551, US 7316633, TW 364373, TW 371899, CN 99808486.7...
Page 2 S7200HRT SUSPENSION ELLIPTICAL TRAINER To avoid possible damage to this Suspension Elliptical™ Trainer, please follow assembly steps in the correct order. Before proceeding, find your new Suspension Elliptical™ Trainer’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
Page 3 ORANGE BAG STEP NOTE: A second person will be helpful to complete this step. • Slide the console mast boot onto the console mast. • Locate the data cable and elevation motor connector in the main frame recess. Make sure they are pulled out of the opening and can be easily plugged in when the mast is inserted.
