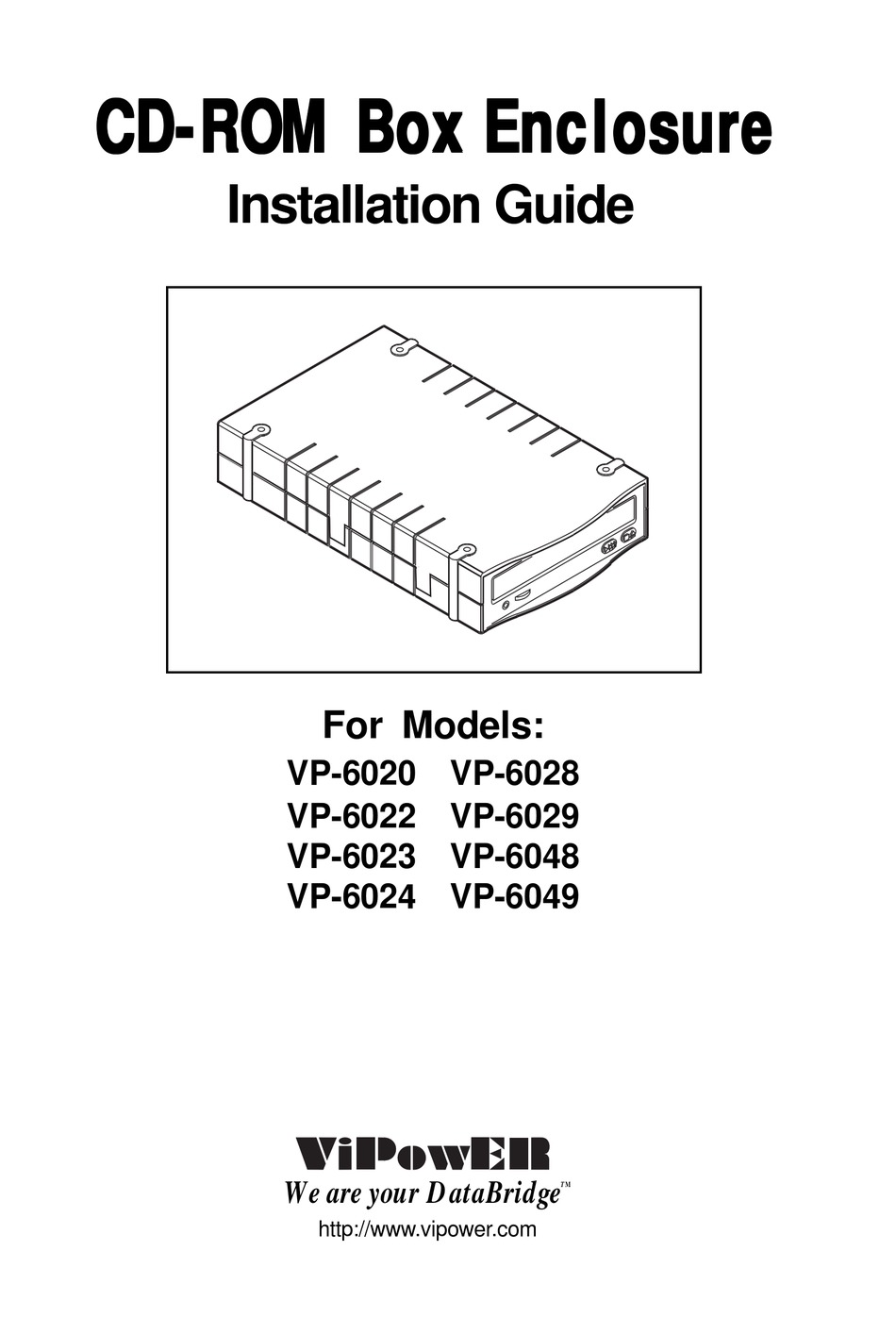

CD-ROM Box Enclosur CD-ROM Box Enclosur e e e e e CD-ROM Box Enclosur CD-ROM Box Enclosur CD-ROM Box Enclosur Installation Guide VP-6020 VP-6028 VP-6022 VP-6029 VP-6023 VP-6048 VP-6024 VP-6049 We are your DataBridge For Models: http://www.vipower.com...
3-1 Operation with a Docking Kit ... 5 3-1.1 Disconnecting the CD-ROM Box ... 6 ViPowER Inc. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ViPowER Inc. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
1-1 Introduction Congratulations on your purchase of one of the following CD-ROM Box Enclosures. Each CD-ROM Box Enclosure is an external enclosure which is designed to enable portable, hot-swap, plug-and-play operation of same-interface type 5.25” devices installed in the box. VP-6020 for IDE/ATA/ATAPI devices VP-6022 for SCSI (50-pin) interface VP-6024 for IDE Shuttle Module...
1-1.1 CD-ROM Box Enclosure Features • Enables portable use of 5.25” internal model removable media devices with computers equipped with the same interface • Supports hot-swap and plug-and-play features of the selected interface • Model VP-6020: enables cross-platform interface compatibility of 5.25” form factor IDE/ATA/ATA devices and ATAPI CD-ROM drives with computers using the same interface as the Docking Kit model (USB, Parallel, 1394/FireWire, SCSI, CARDBUS and PCMCIA).
Top Cover (Note alignment flanges) Connectors/Fan End-Panel Bottom Cover (Note cut-out for flange) Retaining Screws (x4) CD-ROM Box Enclosure Components 2-1.2 Assemble CD-ROM Box with CD-ROM Drive 1. Attach the two connectors from the end-panel assembly to the appropriate connectors on the CD-ROM drive. End-Panel Assembly Pin-1 Colored...
Page 6
a. Attach the IDE 40-pin data cable from the end-panel to the 40-pin connector on the back of the CD-ROM drive. To ensure pin-1 to pin-1 connection, orient the cable so the colored stripe edge is closest to the power connector. b.
Page 7
6. Align the cover’s mounting holes with the mounting holes on the drive rails and secure with four screws (two on each side). 7. Replace the four rubber stands, one on each of the four corners. Orient each stand so the raised nub is on the bottom. These help heat dissipation and provide secure placement of the CD-ROM Box.
3.1 Operation with a Docking Kit Perform the following steps (in the order given) to set up a Docking Unit with your CD-ROM Box Enclosure for operation. (Also refer to your Docking Kit’s installation manual for further details. Some Docking Kits do not provide a Power Select switch.) 1.
b. When using the Docking Kit’s interface for power, set switch to the RIGHT position. Note: it is recommended that you use the +5V /+12V power adapter whenever possible. 6. Connect the Docking Kit’s interface cable into the appropriate interface port on your computer;...
