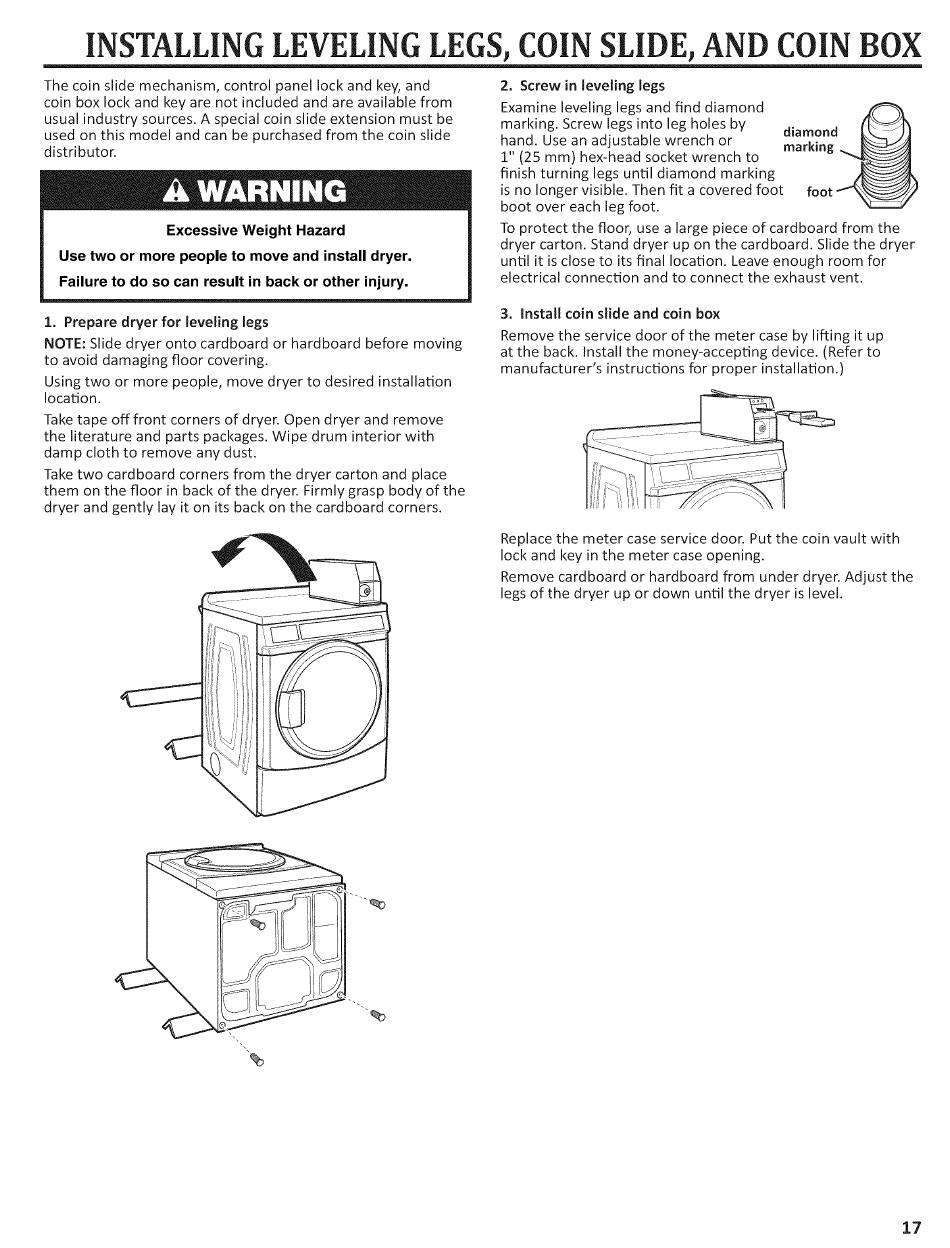

INSTALLINGLEVELING LEGS, COIN SLIDE, AND COIN BOX
The coin slide mechanism, control panel lock and key, and
coin box lock and key are not included and are available from
usual industry sources. A special coin slide extension must be
used on this model and can be purchased from the coin slide
distributor.
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1. Prepare
dryer
for leveling
legs
NOTE: Slide dryer
onto
cardboard
or hardboard
before
moving
to avoid damaging
floor
covering.
Using two or more
people,
move dryer
to desired
installation
location.
Take tape off front corners of dryer. Open dryer and remove
the literature
and parts packages. Wipe drum interior with
damp cloth to remove any dust.
Take two cardboard corners from the dryer carton and place
them on the floor in back of the dryer. Firmly grasp body of the
dryer and gently lay it on its back on the cardboard corners.
2.
Screw
in leveling
legs
Examine leveling legs and find diamond
marking. Screw legs into leg holes by
,.
,
(1_
.
QlamonQ
hand. Use an adjustable wrench or
m=_i_o
1" (25 mm) hex-head socket wrench to
........ _
finish turning legs until diamond marking
is no longer visible. Then fit a covered foot
foot
boot over each leg foot.
To protect the floor, use a large piece of cardboard from the
dryer carton. Stand dryer up on the cardboard. Slide the dryer
until it is close to its final location. Leave enough room for
electrical connection
and to connect the exhaust vent.
3. Install
coin slide
and coin box
Remove the service door of the meter case by lifting it up
at the back. Install the money-accepting
device. (Refer to
manufacturer's
instructions
for proper installation.)
Replace the meter case service door. Put the coin vault with
lock and key in the meter case opening.
Remove cardboard or hardboard
from under dryer. Adjust the
legs of the dryer up or down until the dryer is level.
17
