Adam Equipment

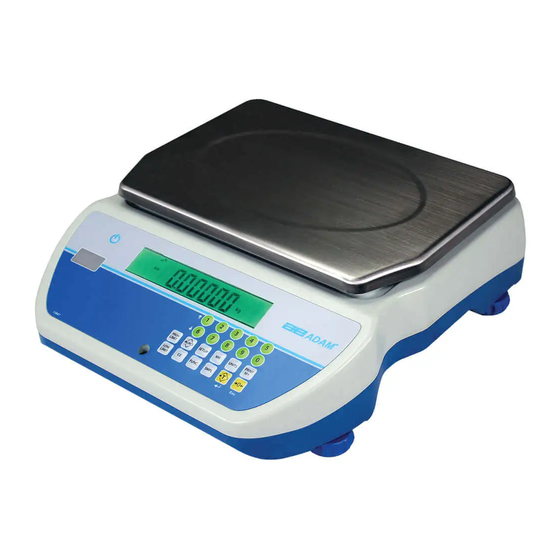

Cruiser (CKT & CKT‐M)
SERIES
Adam Equipment strives to be more environmentally focused and uses recycled materials and environmentally
friendly packaging where possible. As part of this initiative we have developed a short form manual that uses
less paper and ink to describe the main functions of your new Adam scale. A complete version is available at
www.adamequipment.com. Thank you for your support of Adam Equipment and we hope that you enjoy your
new scale.
© Adam Equipment Company 2020
Advertisement
Table of Contents
Related Manuals for Adam Equipment Cruiser CKT Series
Summary of Contents for Adam Equipment Cruiser CKT Series
- Page 1 As part of this initiative we have developed a short form manual that uses less paper and ink to describe the main functions of your new Adam scale. A complete version is available at www.adamequipment.com. Thank you for your support of Adam Equipment and we hope that you enjoy your new scale.
- Page 2 Easy Reference: Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: © Adam Equipment Company 2020...
-
Page 3: Table Of Contents
CAPACITY ........................... 13 9.12 COUNT UNIT........................13 9.13 DUAL ........................... 14 9.14 Linear calibration ........................14 10.0 SERVICE INFORMATION ....................... 15 WARRANTY INFORMATION ......................16 © Adam Equipment Company 2020... -
Page 4: Cruiser (Ckt & Ckt-M) Series
(LCD) with backlight. The scales include automatic zero tracking, LED checkweighing lights with selectable Hi/Low limits, automatic tare, an accumulation facility that allows the count to be stored and recalled as an accumulated total. © Adam Equipment Company 2020... -
Page 5: Specifications
0.3 g 0.6 g 1.2 g Tare range -8000 g -16000 g -32000 g -482000 g Pounds Maximum 16 lb 35 lb 70 lb 100 lb Capacity Readability 0.0001 lb 0.0002 lb 0.0005 lb 0.001 lb © Adam Equipment Company 2020... -
Page 6: Other Specifications
14°F to 104°F 110 - 240vAC Power supply adapter Battery Internal rechargeable battery (~90 hours operation) Calibration Automatic External 7 digits LCD digital display Display With symbols for units Scale Housing ABS Plastic, Stainless Steel platform © Adam Equipment Company 2020... - Page 7 CKT 20M CKT 40M Grams 4000 g 8000 g 20000 g 40000 g 10 g 3000 3000 3000 3000 Kilograms 4 kg 8 kg 20 kg 40 kg 0.001 kg 0.002 kg 0.005 kg 0.01 kg © Adam Equipment Company 2020...
- Page 8 Weighing, Parts counting, % weighing, Check weighing, Functions Check counting, Accumulation of weights. Real Time Clock (RTC), To print date and time information- battery backed Date/Time NOTE: For use in approved applications the scales do not come with the RS-232 interface. © Adam Equipment Company 2020...
-
Page 9: Operation
The scale can be opened by unscrewing the 5 designated points located beneath the scale: 2 next to the battery 2 at the front of the scale 1 in the centre next to the recharge board. © Adam Equipment Company 2020... -
Page 10: Scale Components
1 – PCB 2 – Keypad 3 – Display 4 – Spirit level 5 – Load cell metal frame (upper supporter) 6 – Load cell 7 – Load cell metal frame (lower supporter) 8 – Power cable © Adam Equipment Company 2020... -
Page 11: Replacing The Load Cell
Lift the display from the pegs located in the corners of the display Once detached, attach the new display to the pegs then connect the previously detached wires to the new display unit. Screw in to secure. © Adam Equipment Company 2020... -
Page 12: Module Option Covers/ Boards
Once disconnected, unscrew the board from the base in the 3 designated locations Once unscrewed, simply lift the board from the scale and reverse these steps to replace with a new board. © Adam Equipment Company 2020... -
Page 13: Calibration/ Linearity Settings
[Tare] ↵ key. You will need to ensure that the weight value displayed matches that of the calibration weight for reliable weighing results. © Adam Equipment Company 2020... -
Page 14: Factory Parameters
Press the [Tare] ↵ key to return to the PARAMETER menu. C-Con This setting will allow the user to see how many times the machine has been calibrated. (Calibration control) To enter this parameter, press the [Tare] ↵ key when “C-Con” is shown. © Adam Equipment Company 2020... -
Page 15: Dot
To enter this parameter, press the [Tare] ↵ key when “Filter” is shown. Use the numeric [1] or [6] keys to alternate between the options and press [Tare] ↵ to select. © Adam Equipment Company 2020... -
Page 16: P-Zero
To enter this parameter, press the [Tare] ↵ key when “Capa” is shown. Use the numeric [1] or [6] keys to alternate between the options and press [Tare] ↵ to select. 9.12 COUNT UNIT This parameter allows you to set the weighing/ counting unit. © Adam Equipment Company 2020... -
Page 17: Dual
To enter this parameter, press the [Tare] ↵ key when “Dual” is shown. Use the numeric [1] or [6] keys to alternate between the options and press [Tare] ↵ to select. 9.14 Linear calibration For information about the linear calibration procedure, please see section 8. © Adam Equipment Company 2020... -
Page 18: Service Information
Include any recent history of the unit. For example: -Has it been working since it’s delivered -Has it been in contact with water -Damaged from a fire -Electrical Storms in the area -Dropped on the floor, etc. © Adam Equipment Company 2020... -
Page 19: Warranty Information
WARRANTY INFORMATION Adam Equipment offers Limited Warranty (Parts and Labour) for any components that fail due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company. - Page 20 State of California to cause cancer and birth defects or other reproductive harm. Adam Equipment products have been tested with, and are always supplied with mains power adaptors which meet all legal requirements for the intended country or region of operation, including electrical safety, interference and energy efficiency.
- Page 21 © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 22 © Adam Equipment Company 2020...
