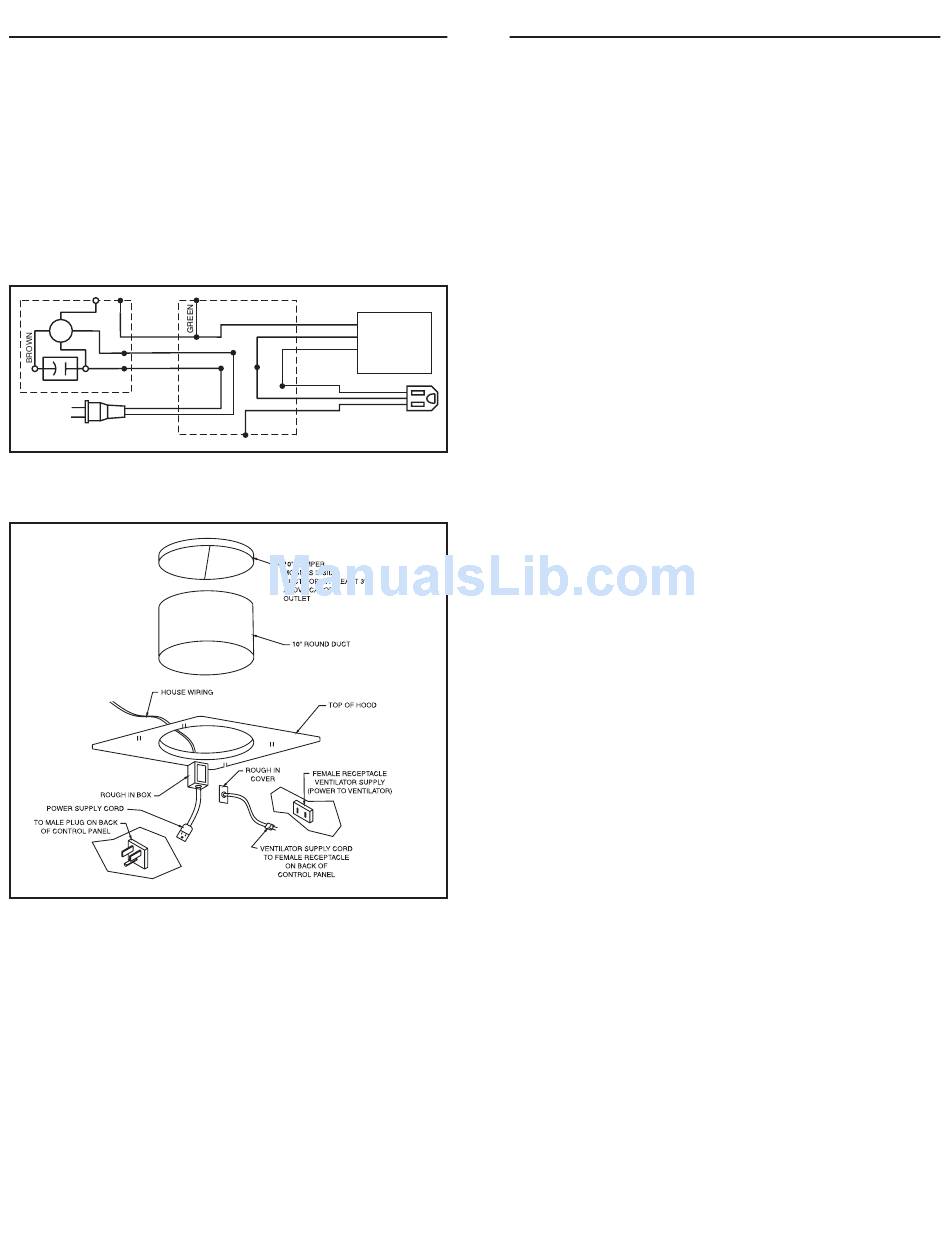

INSTALL THE ROUGH-IN PLATE
1. Run 10" round steel ductwork, from exterior ventilator to
the installation location. For best performance, use the
straightest possible duct run and the fewest number of
elbows. Tape all joints.
2. Run 120 VAC electrical power cable from service panel
and from remote ventilator to installation location.
3. Remove wiring box cover. Remove knockouts from the
wiring box. Feed 6" of power cable through openings and
attach cables to wiring box with appropriate connectors.
GREEN / YELLOW
BLUE
M
GROUND
BLACK
WHITE
BLACK BLACK
CAPACITOR
EXTERIOR
BLACK
VENTILATOR
WHITE
ROUGH-IN PLATE LEAD
4. Wire black to black, white to white, and green or bare wire
beneath green ground screw. Replace wiring box cover.
5. Connect ductwork to transition and tape joint.
6. Turn on power and check ventilator operation.
VIKING RANGE CORPORATION
GREENWOOD, MISSISSIPPI 38930 USA
WIRING BOX
GREEN
LINE IN
WHITE
120 VAC
BLACK
60 HZ
10 A MAX.
BLACK
WHITE
GREEN
ROUGH-IN PLATE LEAD

USE AND CARE

Disconnect electrical power supply and lock out service
panel before cleaning or servicing this unit.
CLEANING
Remove cover and carefully vacuum ventilator and inside of
housing. Be careful not to bend or otherwise damage
ventilator wheel.

MOTOR LUBRICATION

The motor is permanently lubricated. Do not oil or
disassemble motor.
99043051D
F20221
