Viking Designer DEWD101 Specification Sheet

Standard Features & Accessories
All models include
• Drawer capacity
o 27"W. models—1.4 cu. ft.–425 watts
17-1/4"W. x 6"H. x 22-3/4"D.
•
o 30"W. models—1.6 cu. ft.–450 watts
20-1/2"W. x 6"H. x 22-3/4"D.
•
o 36"W. models—2.0 cu. ft.–550 watts
25"W. x 6"H. x 22-3/4"D.
•
• Temperature settings 90°F – 250°F
o Low setting is ideal for
platewarming or breadproofing
o High setting keeps soups and
sauces piping hot
• Versatile moisture-selector control
regulates the amount of moisture
released from drawer (not available on
custom front models)
• Exclusive—two half-sized low racks
o Stainless steel low racks with slots
for heat distribution
o Racks cover entire bottom of pan for
the largest loads or for only half
coverage by removing one section
Model Options

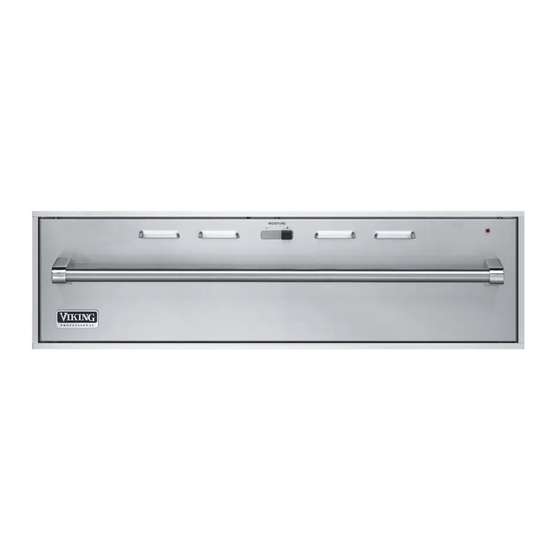

VEWD173/103/163
Professional
Warming Drawer
FINISH DETAILS FOR PROFESSIONAL
MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates drawer and control
panel fronts. Black knob.
• White (WH)
o Finish designates drawer and control
panel fronts. White knob.
• Silver finished vertical/horizontal trim,
with stainless steel handle with
chrome-plated brackets.
• Brass Trim Option (BR)—nameplate,
drawer handle/brackets, and knob bezel.
Brass components have a durable
protective coating for maintenance-free
normal use.
ORDERING INSTRUCTIONS
First specify model number, and then color code (VEWD173SS). If ordering optional brass trim, specify code at end (VEWD173SSBR).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
Professional & Designer Built-In Electric
27"/30"/36"W. Warming Drawer
• Exclusive—moisture cup
o Moisture cup holds water to
increase interior humidity
• Entire drawer removes for easy
cleaning
• Stainless steel roller bearing glides for
smooth drawer operation
• Power on indicator light cycles on and
off with heating element
Professional models include
• Commercial-type size, construction,
design, and styling
o Heavy-duty drawer handle and
perimeter trim
o Large, easy-to-read, commercial-
type knob (hidden when door is
closed)
• Model numbers
o VEWD173—27"W.
o VEWD103—30"W.
o VEWD163—36"W.
DEWD171/101
Designer
Warming Drawer
FINISH DETAILS FOR DESIGNER MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
o Finish designates door panel,
stainless steel knob, and handle.
Black knob grips.
• White (WH)
o Finish designates door panel,
stainless steel knob, and handle.
Gray knob grips.
• Brass Trim Option (BR)—handle and
knobs. Brass components have a
durable protective coating for
maintenance-free normal use.
• 1 - 8 8 8 - V I K I N G 1
COOKING
Designer models include
• Professional construction and design
o Styling matches other Designer
products
o Ergonomically designed handle
• Model numbers
o DEWD171—27"W.
o DEWD101—30"W.
Custom front models include
• Blends seamlessly into cabinetry with
locally supplied front panel
• Accessory options include Professional
Series handle, Designer Series handle,
or custom handle.
• Model numbers
o DFWD171—27"W.
o DFWD101—30"W.
DFWD171/101
Custom Front
Warming Drawer
FINISH DETAILS FOR CUSTOM FRONT
MODELS
• 3/4" thick custom panel
• See Installation Notes & Accessories
for handle kits.
• See Custom Panels section for more
information and additional specifications.
© 2 0 0 7 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
R E L E A S E D 1 2 / 1 / 0 7
