Viking DFUD042/142 Custom Front Specification Sheet

Standard Features & Accessories
All models include
• Capacity—accommodates 16
international place settings
• Automatic water heating
(85°F – 170°F, depending on cycle)
o 1,200-watt heater
o Two separate thermostats
• Extremely efficient, energy- and water-
saving operation
• Electronic controls offer wash cycles
and options that reduce energy costs
o Cycles: Pots/Pans, Heavy, Normal,
Light/China, Quick, Rinse/Hold
o Options: Temperature Selection,
Extra Dry, Five-Hour Delay
o Controls on inside top of door—
hidden when door is closed
• Commercial construction and design
o Rustproof surgical stainless steel
tank/inner door
o Counterbalanced, heavy-duty door
springs
o Tough, zinc-coated steel frame and
one-piece galvanized steel base pan
o Twin fill valve and overflow
protection switch
Model Options
DFUD042/142*
Professional
FINISH DETAILS FOR 042/142 MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Stainless steel handle with chrome-
plated brackets.
• Brass Trim Option (BR)—nameplate and
handle/brackets. Brass components have
a durable protective coating for
maintenance-free normal use.
*Shown throughout with door panel. See Installation Notes & Accessories for details.
ORDERING INSTRUCTIONS
Must order either a Professional (PTD24) or Designer (DTD24) door panel if a custom panel will not be used. Specify color code at end
(PTD24SS). If ordering a custom model (to be fit with a custom panel or with a color panel), use no color or trim code (DFUD042).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
Undercounter 24"W. Dishwasher
• Quiet Clean System™ with asphalt,
felt, and foam insulation
o Absorbs sound
o Retains heat
• Super-extendable graphite nylon racks
o Adjustable tines
o Taller upper rack with two dual-level
cup racks
o Silverware/cutlery basket with lidded
compartment for small items
• Multi-level wash system
o Stainless steel lower and upper
wash arms turn opposite directions
for complete coverage
o Additional spray zone targets
heavily soiled dishes
• Triple filtration and waste removal
system
o Separate motors/pumps for
circulation and drain
Drains quietly
•
o Anti-jam, auto-reversing pump
o Removable strainer
o Removable, self-cleaning fine filter
captures smaller particles
DFUD042/142*
Designer
FINISH DETAILS FOR 042/142 MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Cast stainless steel handle.
• Brass Trim Option (BR)—nameplate
and handle. Brass components have a
durable protective coating for
maintenance-free normal use.
• 1 - 8 8 8 - V I K I N G 1
KITCHEN CLEANUP
• Convect-Air™ fan drying safely vents
away from controls and cabinets
• Extra-tall tank
o Eliminates need for top fill strip
o Allows loading of full-size plates in
top rack
• Automatic detergent/rinse agent
dispensers
• End of cycle signal
• Shipped with stainless steel door
installed, or with no front—to accept
custom front panel or optional door
panel
• Shipped with two stainless steel side
trim strips (1⁄4"W.)
Step-up features on 142 models
• Special cradle for long knives and
utensils
• Express and Top or Bottom Rack Only
cycle options
• Control lock safety feature
• Halogen interior light—turns on when
door is opened

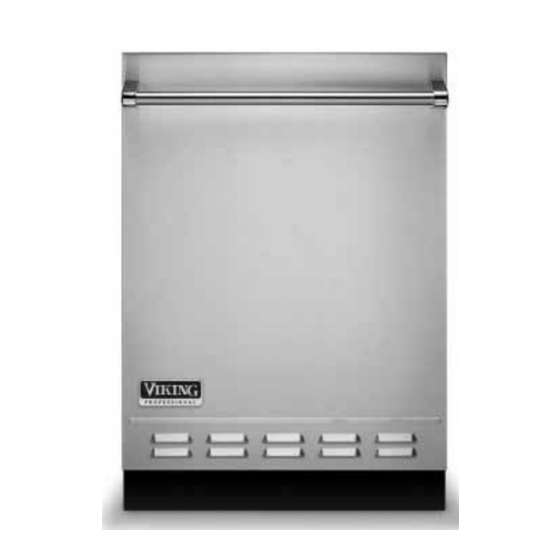

DFUD042/142
Custom Front
FINISH DETAILS FOR 042/142 MODELS
• Door not included—opt for a 3/4"-
thick custom panel (locally supplied), or
purchase a Viking Professional Series or
Designer Series door panel kit (see
Installation Notes & Accessories)
• Handle not included—opt for a custom
handle, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories)
• See Custom Panels section for more
information and additional
specifications.
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
R E L E A S E D 1 2 / 1 / 0 7
