- Page 1 VMP72 FULL HD media player - User Guide - Guide de l’utilisateur - Guía del usuario - Bedienungsanleitung - Guida dell’utente Model No.: VS13057...
- Page 2 The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.
- Page 3 This product has been designed and manufactured in compliance with Directive 2002/95/ EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Substance Lead (Pb)
- Page 4 ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
- Page 5 Safety Instructions This product has been engineered and manufactured to assure your personal safety. However, improper use can result in potential electric shock or fire hazards. In order not to defeat the safe-guards incorporated in this instrument and its accessories, please adhere to the following instructions when installing, operating and servicing.
- Page 6 Usage Warning To reduce the risk of electric shock, do not remove the cover or attempt to disassemble this product. There are no user-serviceable parts inside. Please refer all servicing to qualified service personnel. Protect this product from foreign objects. Never push object of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
-
Page 7: Table Of Contents
Table of Contents INTRODUCTION Package Content Specifications Front View Back View Remote Control SETTING UP FOR VMP72 NETWORK CONNECTIONS Wired Network Setup MEDIA CENTER Video Playback Music Playback Photo Playback Thumbnail mode Full Screen mode Torrent Download SETUP MENU Audio Video System Miscellaneous... -
Page 8: Introduction

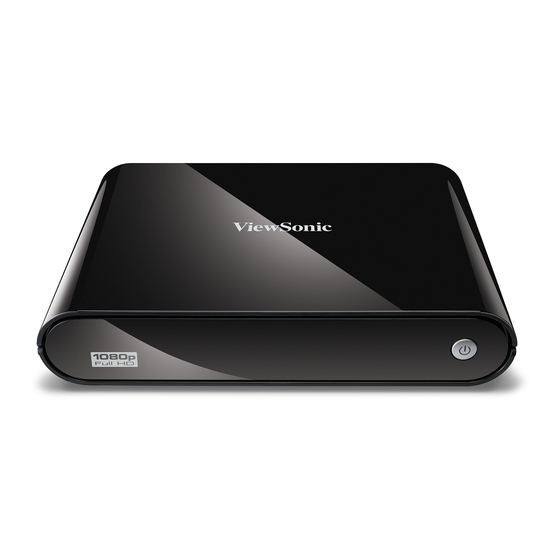

INTRODUCTION VMP72 is a high-definition multimedia player and streamer connecting to the external USB hard drives and your HD TV, bringing PC and internet entertainment to the living room. VMP72 is also a BitTorrent downloader with built-in BitTorrent engine. It downloads media files into the attached USB hard drives corresponding to the BitTorrent seeds already saved on the USB drive. -
Page 9: Specifications
Specification Interfaces HDMI、YPbPr、Composite Video Video Output Audio L/R、S/P DIF (Optical) Audio Output USB x 2、Ethernet Port Data Transfer General Specifications Video Support Media Format Audio Photo Subtitle USB Device File Systems Decoding Up to 1080p (RMVB up to 720p) Output Up to 1080p Dimension 204 mm×... -
Page 10: Front View
Front View Power ① Network LED ② Back View DC IN ① ② USB Port ③ HDMI OUT ④ ⑤ S/PDIF ⑥ AUDIO L/R/ VIDEO ⑦ Y/Pb/Pr Press to turn the VMP72 on. The LED blinks when VMP72 accesses to Network. -
Page 11: Remote Control
REMOTE CONTROL VMP72... - Page 12 REMOTE CONTROL POWER ① MUTE ② Number ③ GOTO ④ INFO ⑤ BACK ⑥ ⑦ CHANNEL ⑧ HOME ⑨ REPEAT ⑩ REPEAT A-B ANGLE DVD MENU ○ ⑪ ○ ⑫ ASPECT ○ ⑬ SETUP ○ ⑭ SUBTITLE ○ ⑮ ○ ⑯ PALY/ PAUSE PREV NEXT...
-
Page 13: Setting Up For Vmp72
SETTING UP VMP72 Step1: Cable connections. Match the cables to the connections on your TV or display. Your choices of connection include: HDMI RCA Cable Y/Pb/Pr (RGB) S/PDIF For both audio and video output For composite video (yellow) and stereo audio (white and red) For component video output For audio output... - Page 14 Plug the Ethernet cable to the “LAN” jack on the rear panel of VMP72, for wired Internet connection. VMP72 will detect the network automatically. VMP72...
- Page 15 Step3: Connect USB devices Step4: Power cord connection Plug one end of the power cord into the back of the VMP72 and the other end into a power outlet. VMP72 will start automatically without pressing any other button once the power is connected.
-
Page 16: Network Connections
Network Connections Wired Network Setup > DHCP Step 1: To access “Setup” on the main menu. Select “Network”. Step 2: Select “Wired” on the Network menu. Select “DHCP”. Step 3: Select Yes to implement DHCP network setting. VMP72 receive its IP address from a DHCP sever that is built into the access point or IP sharing router. - Page 17 > Static IP Step 1: Step 2: PS Please acquire information of these setting values from your ISP（Internet Service Provider）first. Step 1: Step 2: > Ad-Hoc Setup Select “Wired” on the Network menu. Select “Static IP”. Input the value IP Address, Subnet mask, Gateway, and DNS text box respectively.
-
Page 18: Media Center
Media Center Remote > USB Media VMP72 searches and plays all available image, music and video files on the external USB device. > PC Media Connect VMP72 to your PC using a USB 2.0 cable. By connecting your PC to the Local Area Network, you can play the media files on the remote PCs. - Page 19 Note: The limitation on the HD video content playback over the network: The HD video quality may suffer when the video is streamed over the network. This is caused by intranet environment limitations. As a result, users might sometimes experience unsmooth video playback. Therefore, we recommend a wired Intranet for best playback quality, although the transmission over WiFi and PLC is supported.
-
Page 20: Video Playback
VIDEO PLAYBACK Remote Edit Add to Playlist Add selected file to Playlist. Back FULL SCREEN MODE Remote Zoom Description Enter Play Media > Video Playback . Navigate the media file you want to play. The preview window will show the highlighted video. -
Page 21: Music Playback
MUSIC PLAYBACK Remote Edit Add to Playlist Add selected file to Playlist. Back Music will continue playing as the background music when you leave MUSIC PLAYBACK menu. Press Description Enter Play Media > Music Playback Navigate the media file you want to play. The preview window will show the file details of highlighted file. -
Page 22: Photo Playback
PHOTO PLAYBACK Remote Edit Add to Playlist Back Description Enter Play Media > Photo Playback Navigate the media file you want to play. The preview window will show the file details of highlighted file. Rename /Delete file. Add selected file to Playlist. Thumbnail mode. -
Page 23: Thumbnail Mode
THUMBNAIL MODE Remote Description Full screen mode. Back Back to previous display. Previous page. Next page. Leave thumbnail mode. VMP72... -
Page 24: Full Screen Mode
FULL SCREEN MODE Remote Description Previous picture Next picture Rotate the viewing picture counterclockwise Rotate the viewing picture clockwise. Leave full screen mode. PS You can choose the preferred slide show effects in Setup menu. If you’d like to turn off the function, please enter Setup > Other> Transition Effect. -
Page 25: Torrent Download
Torrent Download To activate this feature, please make sure: The VMP72 is connected to the network; The network is properly set up. For more information on this part, please refer to “Step 2” in “Setting up VMP72” section, and “Network” under “Setup Menu”. BitTorrent is the leading and the most common peer-to-peer file-sharing communications protocol. - Page 26 Note: Please make sure torrent seeds are already imported to the external hard drive or on the network PC before downloading media files associated with the .torrent seeds to your PC or USB devices. Files cannot be downloaded if there is less than 10% of the capacity left on the USB drive.
-
Page 27: Setup Menu
SETUP MENU AUDIO Remote Item Night Mode Digital Output Change Audio L/R Description Enter “Audio” setup menu. Select the item for adjustment. Confirm the change. Return to previous display. Options On/Off HDMI LPCM HDMI RAW SPDIF LPCM SPDIF RAW VMP72... -
Page 28: Video
VIDEO Remote Item Aspect Ratio Resolution Description Enter “Audio” setup menu. Select the item for adjustment. Confirm the change. Return to previous display. Options Pan Scan 4:3 Letter Box 4:3 16:9 Full Screen HDMI Auto NTSC 480P 576P 720P 50HZ 720P 60HZ 1080i 50HZ 1080i 60HZ... -
Page 29: System
SYSTEM Remote Item Menu Language Text Encoding Subtitle Size System info Software Update Default Setting Description Enter “Audio” setup menu. Select the item for adjustment. Confirm the change. Return to previous display. Options English Traditional Chinese French/ German/ Spanish / Russian/ Swedish/ Italian/ Polish Unicode (UTF 8) Simplified Chinese (GBK) -
Page 30: Miscellaneous
MISCELLANEOUS Remote Item Slide Show Timer Transition Effect Background Music Screen Saver Movie Preview AUDIO SETUP-“Night Mode” (aka Dynamic Range Control) When the Night Mode is enabled the sound level of compatible audio soundtracks will be dynamically compressed. Dynamic range control (DRC) increases low-level audio content (such as the dialog in the movies), making it easier to be heard at low volume levels while reducing the intensity of higher-level audio content at the same time. -
Page 31: Trouble Shooting
Trouble Shooting Symptom No picture is displayed. When entering “PC Media” menu, the available PC list is not displayed. On “USB Media” menu under the main menu, no USB device is searched. The BT multimedia files can’t be downloaded. Remedy Check the power cord connection. -
Page 32: Customer Support
(Mexico) Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America www.viewsonic.com/la/ (Peru) Macau www.hk.viewsonic.com... -
Page 33: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
