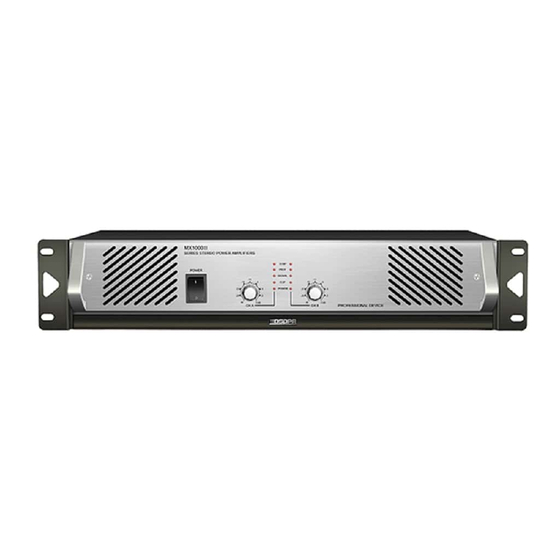

Professional Two-channel Stereo Amplifier
User's manual
Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use
of this equipment.
G u a n g z h o u D S P PA A u d i o C o . , L t d .
MX1000II
MX1500II
MX2000II
MX2500II
http://www.DSPPA.com
http://www.dsppatech.com
Advertisement
Table of Contents
Related Manuals for DSPPA MX1000II
Summary of Contents for DSPPA MX1000II
- Page 1 MX2500II User’s manual Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use of this equipment. G u a n g z h o u D S P PA A u d i o C o . , L t d .
-
Page 2: Matters Needing Attention
Conference Amplifier Matters needing attention Please read the following before operating the product. Warning The following basic requirements must be strictly observed, to avoid potential personal injury and equipment or property damages to you or any person nearby. The basic requirements include without limitation to the following: Power source/power cable When abnormal conditions are realized... -
Page 3: Appearance Description
1. Features Professional two-channel stereo power amplifier New design, standard chassis, suitable for standard cabinet installation A series of high-power amplifier arbitrary choice to meet the different needs Dual channel, mono and BTL bridge three output options for the choice of output mode switch selection ... -
Page 4: Rear Panel Description
Conference Amplifier 2.2 Rear panel description OUT B OUT A MX1000II MX1500II MX2000II MX2500II SERIES STEREO POWER AMPLIFIERS SER. ~220V/50Hz/15A CAUTION! RISK OF ELECTRIC SHOCK DO NOT OPEN FUSE TYPE/ 保险丝规格 DSPPA MX1000II MX1500II MX2000II MX2500II 10AL 10AL 15AL 20AL... -
Page 5: Connection Instructions
The power supply should be cut off immediately, and the power supply should be re-energized after troubleshooting. 3.3 Power input description The MX Series Stereo Amplifier uses the following power supplies (110V AC / 220V AC) : MX1000II MX1500II MX2000II MX2500II 110V AC 220V AC 6.5A... -
Page 6: Bridging Operation
A channel input signal Shown) are connected to the two inputs of the speaker (output is useless). Note: do not ground any of the output terminals when bridging. The minimum load impedance at the time of bridging is 8 Ω. OUT B OUT A MX1000II MX1500II MX2000II MX2500II SERIES STEREO POWER AMPLIFIERS SER. ~220V/50Hz/15A CAUTION! -
Page 7: Packing List
5× 19 machine fixing screw Safe Box Plastic Washer Manual/ Certificate/Warranty card 1/1/1 16A Conversion Plug 3× 8 Semicircle Head Cross belt dielectric screws Specification Item No. MX1000II MX1500II MX2000II MX2500II Rated output / channel, 8Ω 150W 230W 300W 400W Rated output / channel, 4Ω... - Page 8 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd.
