TO REPLACE INTERNALS

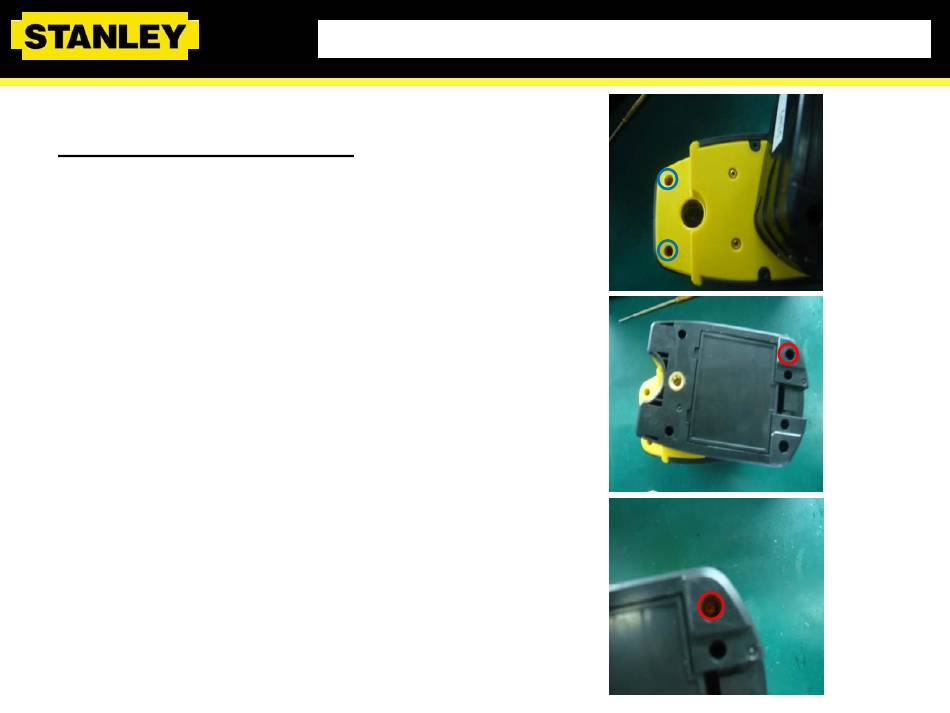

1 Remove the 4 screws from the SLP mount
base
The screws circled in blue can be directly
removed while the 2 circled in red can only be
accessed by rotating the base to align the hole
with the screw. Attention should be paid to the
angle the base rotates to as shown to see the
screws inside
STANLEY Spot Line SLP3 and SLP5 repair instruction
1
Advertisement
Related Manuals for Stanley Spot Line SLP3
Summary of Contents for Stanley Spot Line SLP3
- Page 1 STANLEY Spot Line SLP3 and SLP5 repair instruction TO REPLACE INTERNALS 1 Remove the 4 screws from the SLP mount base The screws circled in blue can be directly removed while the 2 circled in red can only be accessed by rotating the base to align the hole with the screw.
- Page 2 2. Remove the top housing. It is now possible to remove the top housing, then left, right, front dot window and the horizontal beam window 3. Unplug the connector linking the top housing and main board.
- Page 3 4).Remove the other 4 bottom screws that secure the internals The 2 screw cirled in blue can be directly removed and the 2 screws circled in red can only be removed by rotating the base to align the hole with the screw hole underneath.
- Page 4 5). Remove the connector linking the internals and the main board. Then remove the internals...
- Page 5 To Disassemble the base 1). Remove the 4 screws from the base, then unsolder the 2 cables linking the main unit and the base.
- Page 6 2).Now it is ok to remove the “nail hook” from the base...
- Page 7 3). Remove the bottom screws as shown below Then it is ok to remove the base top from the base...
