QuickSpecs
Overview
A t A G l a n c e

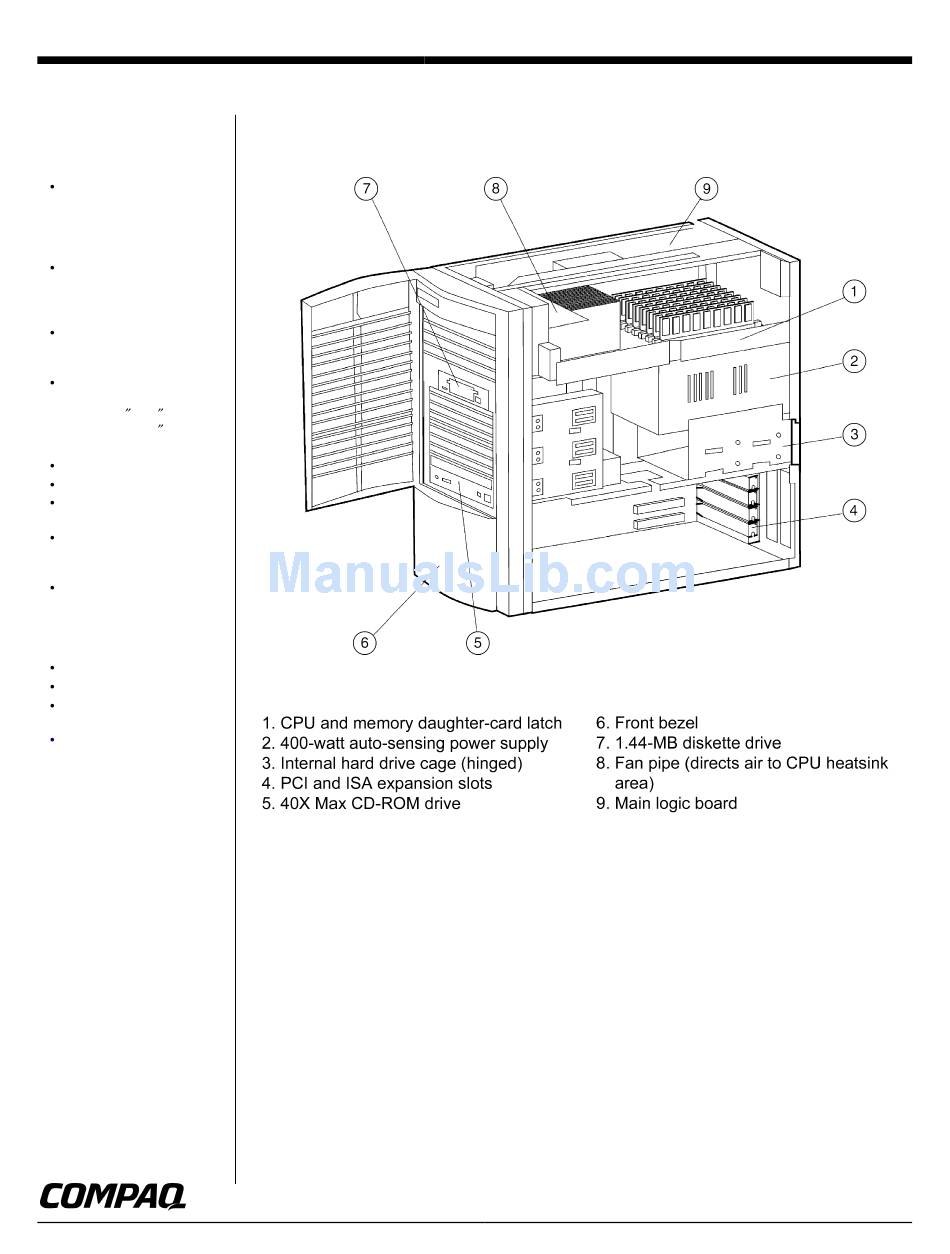

AlphaStation XP1000 Systems
include:
Tower enclosure with Alpha
21264A (EV67) 667-MHz CPU
with 64-KB data cache,
64-KB instruction cache, and
4-MB Level 2 cache
Five Expansion slots on two
buses: Two 64-bit PCI slots, two
32-bit PCI slots, one PCI/ISA
32-bit combination slot
Two memory option banks, four
DIMM slots per bank, maximum
2-GB memory
Six Storage bays: One diskette
drive bay, one CD-ROM drive
bay, two 5.25 x 1.6 removable
media bays, two 3.5 x 1" hard
disk drive bays
400W power supply
Onboard wide UltraSCSI adapter
Onboard 16-bit Soundblaster
compatible audio
Onboard 10/100 Ethernet
(Twisted pair); ThinWire and
Thick wire optional
Integrated I/O comprising parallel
port, two serial ports, audio in,
audio out, headphone,
microphone, mouse, and
keyboard ports
1.44-MB diskette drive
650-MB 40X CD-ROM drive
Factory Installed Software: Tru64
UNIX or OpenVMS
Protected by Compaq Services,
including a three-year on-site
limited warranty —Certain
restrictions and exclusions apply.
For details, consult the Product
Information Centre at 1-888-88-
COMPAQ.
DA-10030
Canada — Version 22 — December 31, 2001
Compaq AlphaStation XP1000
1
Advertisement
Table of Contents
Related Manuals for Compaq XP1000
Summary of Contents for Compaq XP1000
- Page 1 Overview A t A G l a n c e AlphaStation XP1000 Systems include: Tower enclosure with Alpha 21264A (EV67) 667-MHz CPU with 64-KB data cache, 64-KB instruction cache, and 4-MB Level 2 cache Five Expansion slots on two buses: Two 64-bit PCI slots, two...
-
Page 2: Standard Features
Canada — Version 22 — December 31, 2001 Minimum of 256-MB mandatory for CTO systems 2 GB 2 (64-bit), 2 (32-bit) 1.44 MB 650-MB 40X ATAPI CD-ROM Drive Choice of 9.1-GB, 18.2-GB, 36.4-GB drives 146 GB COMPAQ. Compaq AlphaStation XP1000... - Page 3 3-button mouse – opal 3-button mouse – carbon Selection of a minimum of 256-MB memory is mandatory for CTO systems Systems support a maximum of 2-GB memory (two memory banks support four DIMMs per bank) Compaq AlphaStation XP1000 Hard Drive Order No. Mandatory...
-
Page 4: Scsi Disk Drives
Systems support two additional 5.25 removable media devices (5.25 removable media bays also support hard disk drives) Systems support additional ATAPI device DVD-ROM is data support only (no MPEG-2 capability) DVD-ROM is backward compatible with CD-ROM media Compaq AlphaStation XP1000 Maximum # Supported OpenVMS SN-KZPBA-CA SN-KZPBA-CB 3X-KZPEA-DB V5.1... - Page 5 PCI 3-channel 64-bit Ultra2 LVD RAID controller, 64-MB cache – supported with DS- BA356-SG and DS-BA35X-FC only PCI 1-channel 64-bit Ultra2 LVD backplane RAID controller, 16-MB cache DA-10030 Canada — Version 22 — December 31, 2001 Compaq AlphaStation XP1000 Maximum # Supported Tru64 UNIX OpenVMS V4.0F/4.0G/5.1 (not TruCluster V5.1)
- Page 6 StorageWorks shelf kits are mounted back-to-back in rackmount cabinets Maximum six (10,000 rpm) or seven (7,200 rpm) drives supported in StorageWorks shelf One power supply supports a maximum of six 10,000 rpm disks Compaq AlphaStation XP1000 DS-BA356-KF DS-BA356-KG DS-BA356-KH...
- Page 7 36.4-GB Ultra3 (LVD) 10,000 rpm 1.0 Universal drive 72.8-GB Ultra 3 (LVD) 10,000 rpm 1.0” Universal Drive Drive-height converter 4-pack DA-10030 Canada — Version 22 — December 31, 2001 Compaq AlphaStation XP1000 Maximum # Supported Tru64 UNIX OpenVMS V5.1 V4.0F/4.0G/5.1 (not TruCluster V5.1)
- Page 8 (1) Tru64 UNIX and OpenVMS support one to four heads for 2D only. (2) Updates on multi-head support can be located at (3) PowerStorm 350 customers that require displaying the highest resolution stereo graphics (1280x1024 @ 120Hz) should consider the Viewsonic P817 monitor as their monitor solution.
- Page 9 1.8-m video cable 120V, 75 Monitor Power Cords DA-10030 Canada — Version 22 — December 31, 2001 Each monitor includes a 1.8-m signal cable – a video cable is required for most server applications Compaq AlphaStation XP1000 3R-A2936-AA 3R-A2935-AA 3R-VRQP1-23 3R-A2934-AA 3R-A3383-AA...
- Page 10 Accessories DA-10030 Canada — Version 22 — December 31, 2001 Tru64 UNIX Rackmount kit must be ordered separately requires removal of XP1000 front door H9A10, or H9A15 Cabinet, 120V or 240V Cabinet front door based on cabinet height Factory Integration...
- Page 11 Options Step 10 – AlphaStation XP1000 Rackmount Options (continued) M-series Cabinet Configuration Chart for AlphaStation XP1000 (5U) with Storage Works shelves (4U) Cabinet Mounting Kit H9A10-MC/MD SN-BA26R-RA Optional, must be ordered separately H9A15-MC/MD SN-BA26R-RA Optional, must be ordered separately M-series Cabinets 67 cabinet enclosure with 54.2 or 33U of usable vertical space;...
- Page 12 XP1000 500-MHz CPU upgrade to XP1000 667-MHz CPU for Tru64 UNIX, OpenVMS, and Step 12 Hardware and Software Supplemental Services Hardware Supplemental Services 3-year 5 x 9 Next Business Day Onsite XP1000/667 warranty uplift (must purchase 3-year 5 x 9 Same Day – 4-hour Response Onsite XP1000/667 warranty uplift (must 3-year 7 x 24 Same Day –...
-
Page 13: User Documentation
OpenVMS Concurrent Use 128-user license OpenVMS Concurrent Use 256-user license OpenVMS traditional unlimited user license User Documentation Compaq AlphaStation XP1000 Installation and Setup Guide in seven languages: English, French, German, Japanese, Spanish, Italian, Dutch XP1000 Service Guide (CD-ROM) DA-10030 Canada — Version 22 — December 31, 2001 OpenVMS systems include OpenVMS Alpha Base license, OpenVMS Concurrent Use 1-user license, NAS Client 150 Traditional License, MMS Runtime License, and Open 3D for Open VMS License. -
Page 14: Technical Specifications
Operating Non-operating Operating Non-operating Typical Compaq AlphaStation XP1000 16 x 8.6 x 17.5 in/41 x 22 x 44.8 cm 23.4 x 20.5 x 15.4 in/59.4 x 52.1 x 39 cm 41 lb/18.6 kg 49 lb/22.2 kg 100 to 132 VAC/230 VAC...
