INSTALLATION GUIDE FOR THE
VOPEX-SV-2-LC

INTRODUCTION

The VOPEX-SV-2-LC S-Video Splitter allows two S-Video displays to be driven
from the same S-Video source.
a PC, DVD player, satellite receiver, or VCR to name a few. With 150 MHz
bandwidth, the VOPEX-SV-2 supports standard S-Video resolution–up to 800 x 600.

INSTALLATION

1. Turn OFF power to source and display(s).
2. Disconnect the S-Video cable from the source and reconnect it to the female connector labeled "S-VIDEO OUT 1" on the
VOPEX-SV-2-LC.
3. Install one male end of the SVEXT-3-MM cable (supplied) into the source's S-Video output connector.
4. Install the other male end of the SVEXT-3-MM cable into the female connector labeled "S-VIDEO IN" on the VOPEX-SV-2-LC.
5. An additional display may be plugged into the remaining female connector labeled "S-VIDEO OUT 2" as required.
6. Plug in the AC adapter and connect it to the VOPEX-SV-2-LC.
7. Turn ON power to the source and display(s).
Note: Additional S-Video cable lengths (SVEXT-xx-MM where xx is the length of the cable in feet) may be ordered from Video Products
Inc by calling (800) 626-7801 (U.S) or 330-562-7070 or visit our website at www.vpi.us.

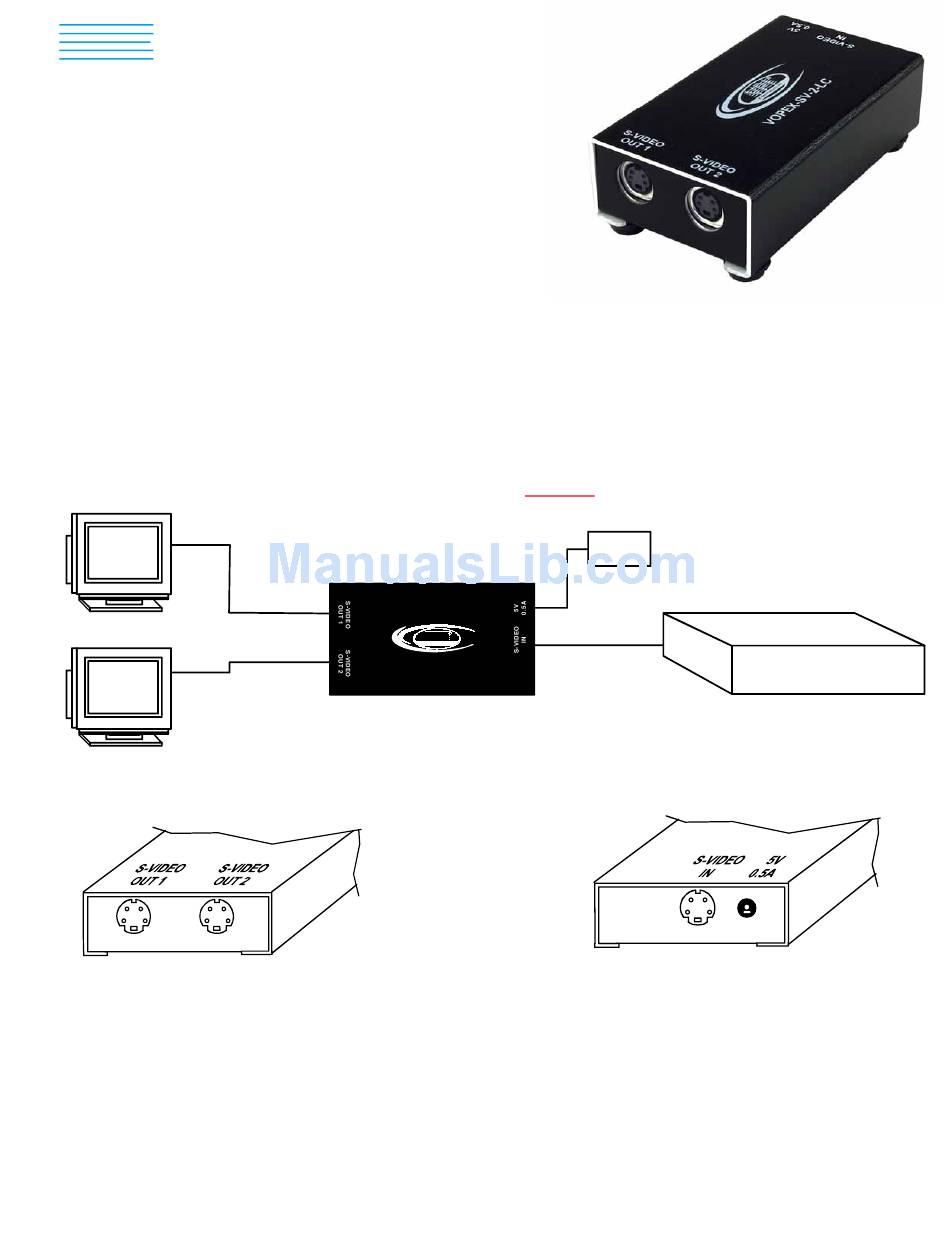

S-Video Cable
(not supplied)
S-Video Cable
(not supplied)
Left End View of VOPEX-SV-2-LC

TROUBLESHOOTING

PROBLEM SOLUTION
No Video • Connect power to VOPEX-SV-2-LC
• Cable connections not secure
Poor Resolution • Make sure the display is plugged into S-
VIDEO IN on the VOPEX-SV-2-LC
Aurora,Ohio 44202
1275 Danner Drive
Tel: 330-562-7070 Fax: 330-562-1999
www.vpi.us
The S-Video may come from sources such as
VPI
Vi deo Products I nc
VOPEX-SV-2-LC
Top View of VOPEX-SV-2-LC
R
SVEXT-3-MM
(supplied)
Right End View of VOPEX-SV-2-LC
AC Adapter
(supplied)
PC, DVD, Satellite,
or VCR
