Summary of Contents for CYP SM-2X4-HDMI-LC

  • Page 2 1. Introduction... 1 2. Features... 1 3. Package Contents... 1 4. Operation Controls and Functions... 4.1 Front Panel... 4.2 Rear Panel... 2 4.3 Remote Control... 3 4.4 RS-232 Protocol... 3 4.4.1 Pin Definition... 3 4.4.2 Commands... 5. Specifications... 4 5.1 General Specification... 4 5.2 Support Resolution...

  • Page 3: Package Contents

    1. Introduction CHMX-24 is a high performance HDMI Matrix with remote control. It offers you maximum convenience in HDMI signal distribution when you have multiple HDMI sources and displays to connect together. Each of the two HDMI sources can be directed to any one of the four outputs, so four displays can show 4 identical or 2 pairs of different sources at the same time.

  • Page 4: Operation Controls And Functions

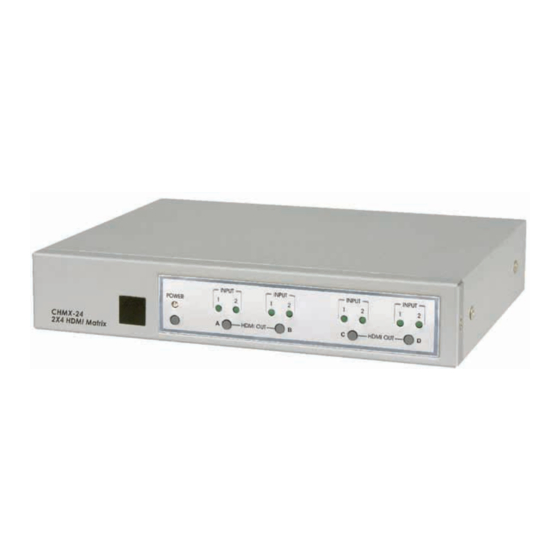

    4. Operation Controls and Functions 4.1 Front Panel CHMX-24 2X4 HD Matrix 1. Remote control sensor. 2. Power Switch & LED Indicator: The LED will illuminate when the power is turned on. 3. Input Select/Indicators (A): Press the "HDMI OUT A" button repeatedly to switch to your desired source, and the LED will illuminate to indicate which input source is being selected, and routed to HDMI A display.
  • Page 5 4.3 Remote Control 1. Power: Press the button to turn on/off the unit. 2. Input Select for HDMI OUT A: Press 1 or 2 to select the desired input source for HDMI OUT A. 3. Input Select for HDMI OUT B: Press 1 or 2 to select the desired input source for HDMI OUT B.
  • Page 6 4.4.2 Commands COMMAND 5. Specifications 5.1 General Specification * Frequency bandwidth: 1.65Gbps (single link) * Input/Output: 2-in to 4-out HDMI female ports * 5V DC power supply * Dimensions: 240 (W) x 165 (D) x 49 (H)mm * Weight: 1.25Kgs 5.2 Support Resolution INTPUT VGA, SVGA, XGA, SXGA, UXGA...
