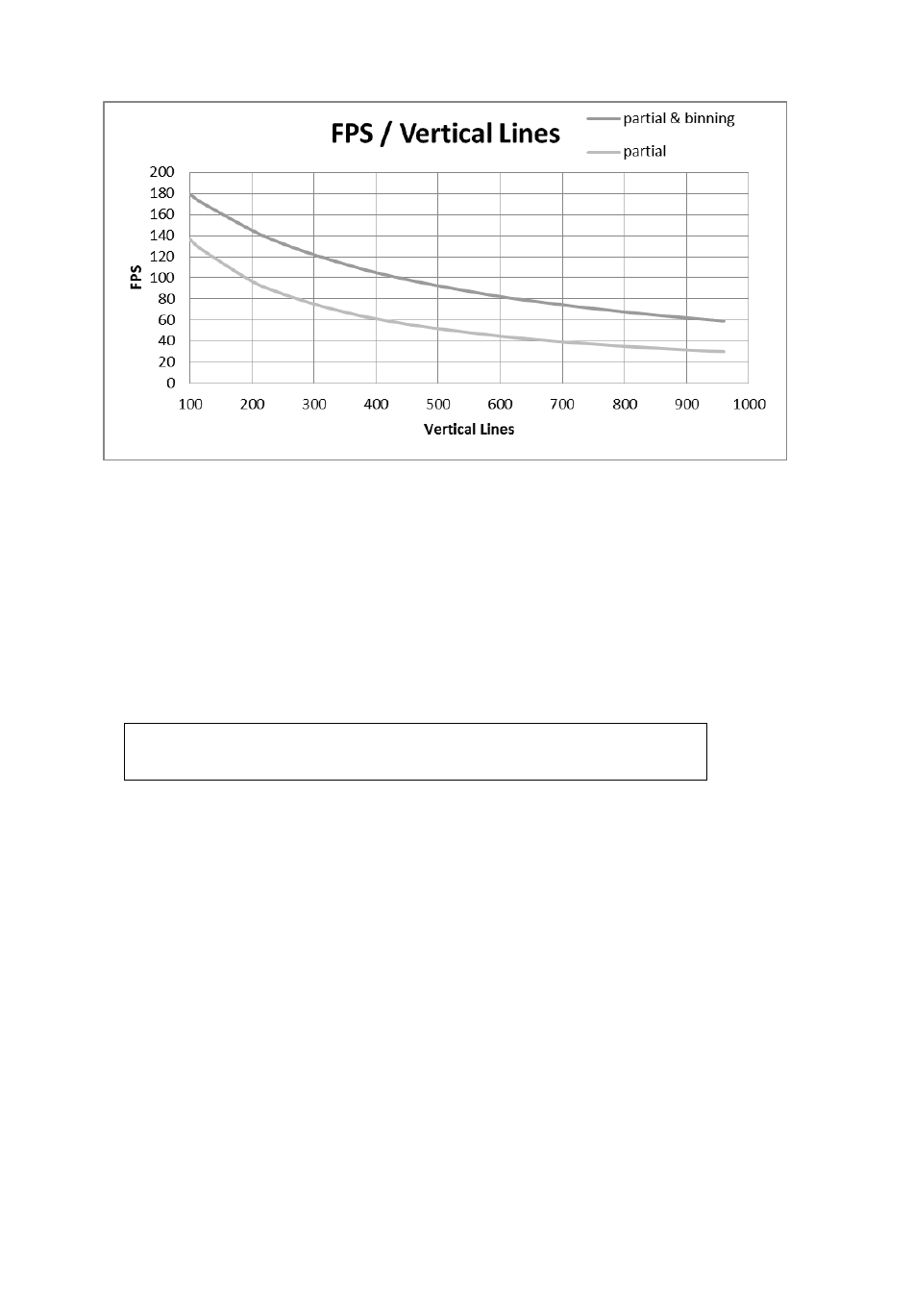

The following graph is the relationship of the partial scan and "capture width", "frame rate".
Equation below is the formula for the "total number of lines by capture width (the decimal point is truncated)" and the "frame
rate".
(1) Equation of total number of line for partial scan mode
The total number of line = 12+⌈(12+OFFSET)/9⌉+HEIGHT+⌈(967-HEIGHT-OFFSET)/9⌉
(2) Equation of total number of line for partial scan and binning mode
The total number of line = 12+⌈(8+OFFSET)/9⌉+⌈HEIGHT/2⌉+⌈(962-HEIGHT-OFFSET)/9⌉
Frame rate = (45000000 / 1512) / The total number of line
*Notes on partial scan use
(Note 14.1.2) The capture start position + capture width, please use 960 or less.
