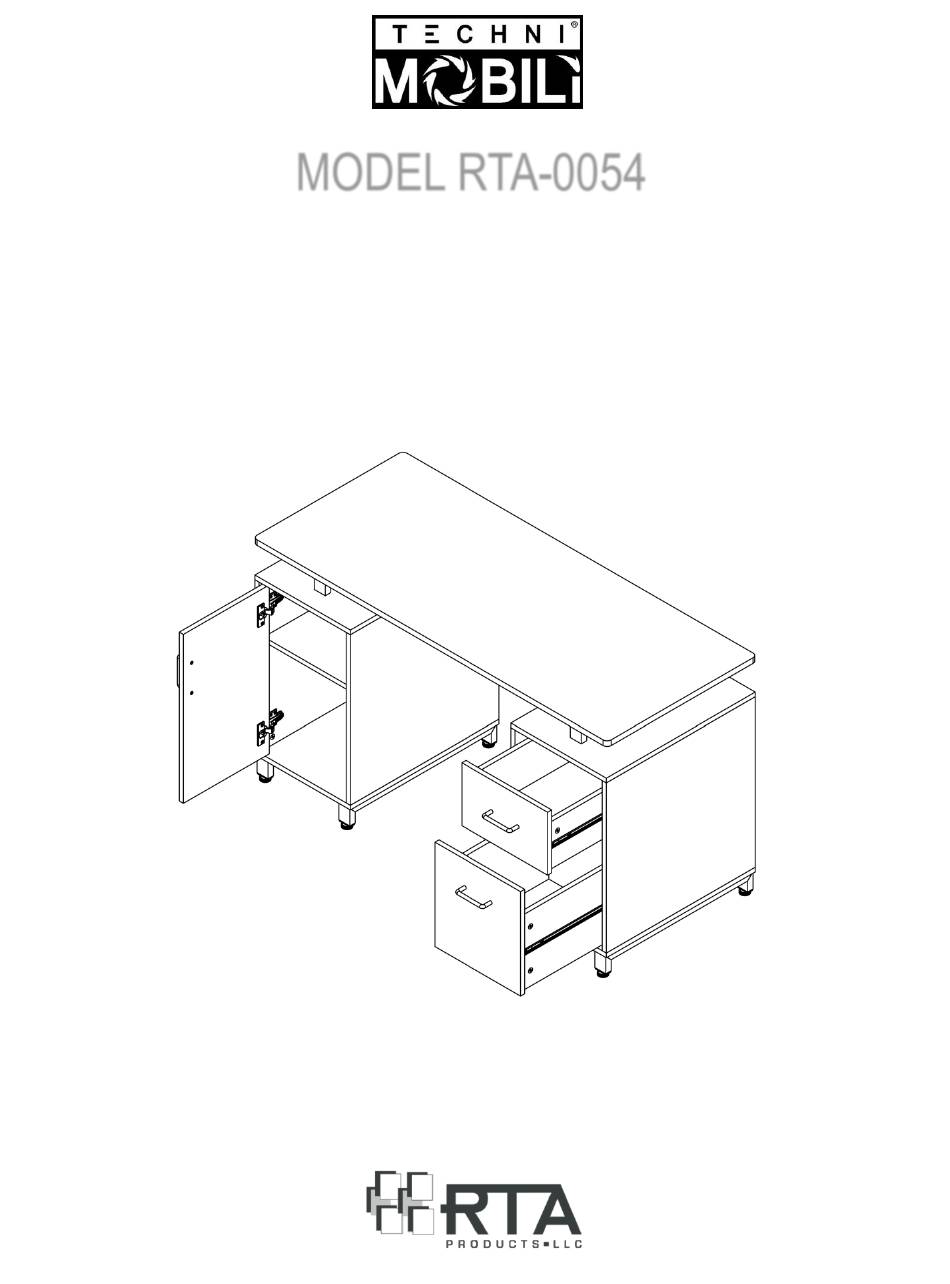

MODEL RTA-0054
ASSEMBLY INSTRUCTIONS
Thank you for purchasing one of our products.
Please read carefully the assembly instructions before the installation.
Do not discard this manual or any of the packaging material until the unit
.
has been completely assembled
Imported By
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Techni Mobili RTA-0054
Summary of Contents for Techni Mobili RTA-0054
- Page 1 MODEL RTA-0054 ASSEMBLY INSTRUCTIONS Thank you for purchasing one of our products. Please read carefully the assembly instructions before the installation. Do not discard this manual or any of the packaging material until the unit has been completely assembled Imported By...
-
Page 2: Main Parts List
RTA-0054 MAIN PARTS LIST Left panel for left Right panel for left Main panel cabinet cabinet Left panel for drawers’ Right panel for drawers’ Top panels for the Bottom panel for the cabinet cabinet cabinets cabinets Back panels for the... - Page 3 RTA-0054 MAIN PARTS LAYOUT (FOR REFERENCE): �� �� �� �� �� �� �� �� �� �� �� �� SCREWS LIST: PART SIZE / DESCRIPTION / FIGURE PART SIZE / DESCRIPTION / FIGURE Large wooden pins for cabinets ❶ ⓫ Cam bolts ❷...
- Page 4 RTA-0054 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
- Page 5 RTA-5004 STEPS 1 THRU 8: DRAWERS ASSEMBLY STEP 1 First insert the wooden pins into the bottom holes on the front profile of the side panels , then assemble the back panel to the side panels using screws Hardware/tools: Shown. (The small groove is on (The large groove is on the (NOT INCLUDED)
- Page 6 RTA-0054 Assemble one of the handles Ⓢ to the front panel using screws ⑦ from the inside as STEP 4 shown. Hardware/tools: (This shows the drawer from behind ❼ with its front facing to the left) (NOT INCLUDED) STEP 5...
- Page 7 RTA-0054 STEP 7 Assemble the front panel to the side panels using cam locks cam bolts just as in step 3 and as explained in page 4. Hardware/tools: (This view is from behind with the front facing to the right)
- Page 8 RTA-5004 STEP 10 With the side panels Ⓓand Ⓔ oriented as shown, assemble the sliders Ⓠ using screws ④, making sure the smaller rails attach to the panels, and the larger rails slide in and out. Hardware/tools: TIP: Assemble first on the back holes of the sliders (The grooves are at the back of the panels) ❹...
- Page 9 RTA-5004 STEP 12 Assemble the side panels Ⓑ and Ⓒ to the second panel Ⓖ using wooden pins ①, cam bolts ② and cam locks ③ just as it was explained in step 11 and in page 4. Hardware/tools: ❶ (The grooves are at the back of all the panels) ❷...
- Page 10 P.10 RTA-0054 P.10 Assemble the cabinet top panels Ⓕ to the side panels Ⓑ-Ⓒ and Ⓓ-Ⓔ respectively using STEP 14 wooden pins ①, cam bolts ② and cam locks ③ as shown and as explained in page 4. Hardware/tools: ❶...
- Page 11 P.11 RTA-5004 P.11 STEP 16 Assemble the top metal support frames Ⓜ to both cabinet top panels Ⓕ using screws ⑩ as shown. Hardware/tools: (This view shows the unit from the front and from ❿ below facing to the left) ⓱...
- Page 12 RTA-0054 P.12 P.12 STEP 19 Assemble the door Ⓘ to the hinges Ⓡ using screws ⑤ as shown. Hardware/tools: ❺ (NOT INCLUDED) STEP 20 Fine-tune the hinges Ⓡ to make the door Ⓘ close smoothly by adjusting the screws indicated below, then secure with screws ⑤ on the 2 other holes on the hinges as shown.
- Page 13 RTA-0054 P.13 P.13 STEP 21 First install the metal pins ⑥ into the sets of holes on panels Ⓑ and Ⓒ of the left cabinet, then insert and place the removable panel Ⓙ over the pins. Hardware/tools: ❻ You might need to insert the panel at...
- Page 14 RTA-0054 P.14 P.14 STEP 22 On the right cabinet pull out the bottom sliders Ⓠ and assemble the large drawer to the sliders by fitting them into the grooves on the side panels , then secure them with screws ⑧ from inside the drawer as shown.
- Page 15 RTA-0054 P.15 P.15 STEP 24 Place the main panel Ⓐ over the top metal supports Ⓜ making the holes coincide, and assemble the panel using screws ⑪ from underneath the unit as shown. Hardware/tools: ☛ Assembly tip: To avoid misalignments, screw loosely and tighten the screws only after all are in place.
- Page 16 RTA-0054 P.16 P.16 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 44 Lbs. (20 Kg) 88 Lbs. (40 Kg) 33 Lbs. (15 Kg) 44 Lbs. (20 Kg) 33 Lbs. (15 Kg) 22 Lbs. (10 Kg) 22 Lbs.
