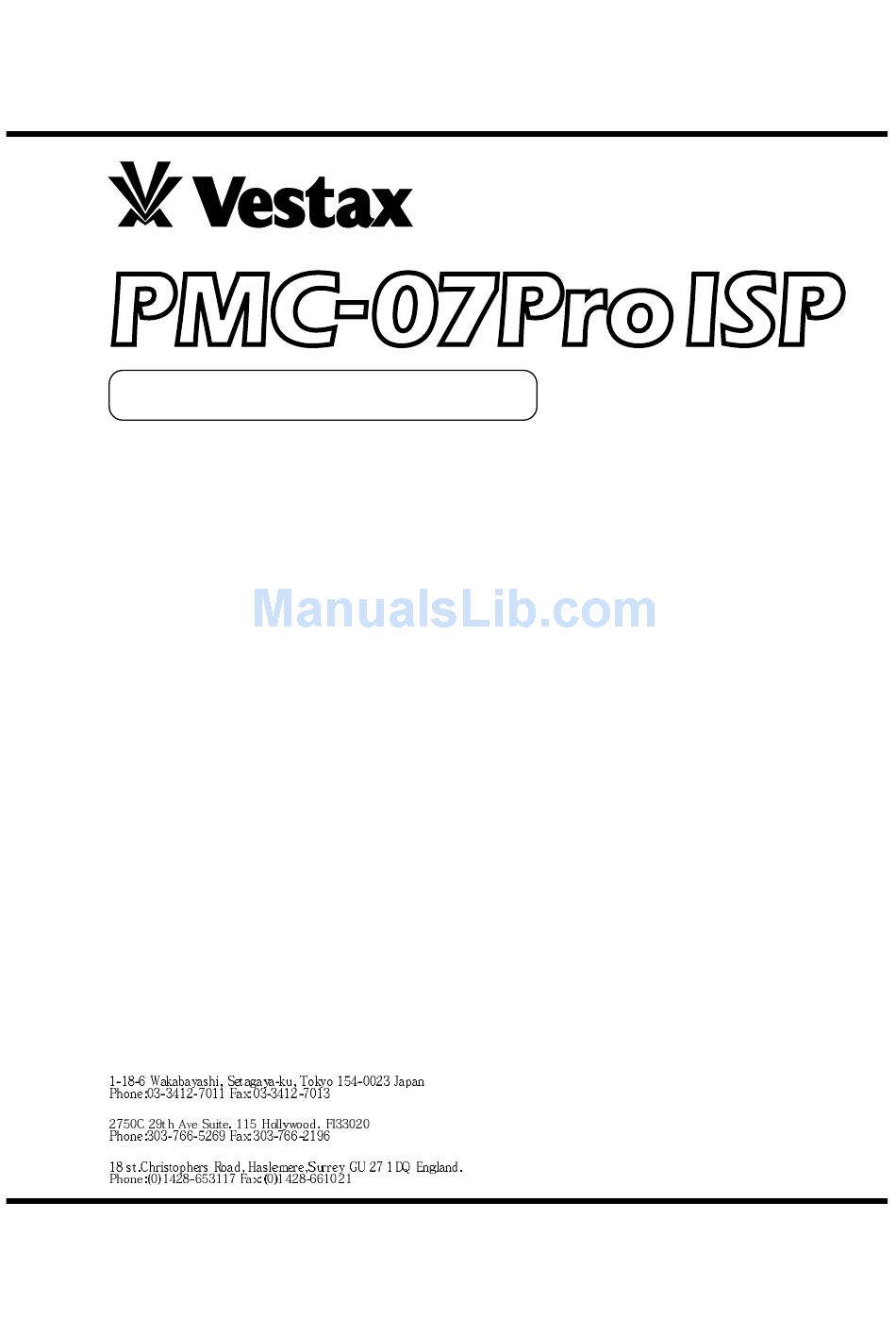

- Page 1 Proffessional Quadraphonic DJ Mixer OWNER'S MANUAL VESTAX CORPORATION VESTAX America VESTAX ( Europe ) Ltd.
-
Page 2: Table Of Contents
CONGRATULATIONS ！ Thank you for purchasing the VESTAX PMC-07ProISP, Professional Quadraphonic DJ Mixer. Please read this owner's manual carefully before you start to use your mixer in order to fully understand all of the special features. C A U T I O N... -
Page 3: Important Safeguards
I M P O R T A N T S A F E G U A R D S R E A D B E F O R E O P E R A T I N G E Q U I P M E N T This product was designed and manufactured to meet strict quality and safety standards. -
Page 4: F E A T U R E S
● A 3-band EQ is provided on each program. The adjustment range(+6dB to -24dB) enables equalization and frequency elimination. ● Vestax invented the crossfader reverse switch and curve contorol and provided this feature for input faders as well. All faders are "photo coupler" to provide quicker response and longevity. -
Page 5: Functions
FUNCTIONS TOP PANEL SECTION EFFECT SEND MASTER RETURN RTN EQ. EFFECT RTN PGM 2 PGM 1 MASTER PMC-07ProISP PMC-07ProISP PROFESSIONAL QUADRAPHONIC DJ MIXER PGM 1 PGM 2 PGM REV GAIN NORMAL REVERSE EFFECT SEND EFFECT SEND Q4 - STICK Q4 - STICK... - Page 6 q EFFECT SEND MASTER VOLUME Adjusts the output level of the EFFECT SEND. w EFFECT RETURN VOLUME Adjusts the input level from the EFFECT RETURN. e EFFECT RETURN EQUALIZER HI and LO frequency adjustment of effects signal. r EFFECT RETURN ASSIGN SWITCH The switch selects return point of effects.
-
Page 7: Front Panel Section
FRONT PANEL SECTION I.F. REV. PMC-07ProISP PROFESSIONAL QUADRAPHONIC DJ MIXER @3 IF REVERSE SWITCH Reverses the action of the inputfader by making the zero point top instead of bottom. Reverse mode is indicated in LED section. @4 CF REVERSE SWITCH Reverses the action of the crossfader by switching PGM1 and 2. -
Page 8: Rear Panel Section
-4dBm for monitoring etc. #5 SESSION IN JACK-FRONT [1/4 inch PHONE JACK] Allows front 1/4 inch chain connection with multiple PMC-07ProISP mixers. #6 SESSION IN JACK-REAR [ 1/4 inch PHONE JACK ] Allows rear 1/4 inch chain connection with multiple PMC-07ProISP mixers. -
Page 9: How To Change The Fader Unit
HOW TO CHANGE THE FADER UNIT Note Use a plus driver fitting screw. Caution: When you change any parts, do not loose the screws with marking. HOW TO REMOVE THE TOP PANEL q Remove each fader knobs and 4 screws which fix the top panel. -
Page 10: Connection Diagram
REAR SPEAKER AMPLIFIER LINE IN to MASTER OUT-FRONT ／ ／ WHITE 〔PMC-07Pro REAR PANEL〕 PMC-07ProISP WARNING;SHOCK HAZARD-DO NOT OPEN. AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR. PROFESSIONAL QUADRAPHONIC DJ MIXER MASTER SUB MASTER SESSION IN AUX SEND SERIAL NO. MADE IN JAPAN... -
Page 11: Chain Connection
CHAIN CONNECTION DIAGRAM FRONT REAR FRONT REAR FRONT REAR... - Page 12 FRONT REAR FRONT REAR...
-
Page 13: Block Diagram
BLOCK DIAGRAM ON/OFF JOYSTICK ON/OFF JOYSTICK REVERSE... -
Page 14: I.s.p Model
Yogafrog, Q-Bert, Mixmaster Mike, D-Styles and Shortkut. I.S.P reign as world champion of Turntablists and go on breaking new ground for DJ culture. The PMC-07ProISP continues in that tradition of top performance mixer and innovative ideas at ISP's request. -
Page 15: Specifications
SPECIFICATIONS INPUT PHONO 1∼2 L/R （RCA PIN JACK） SECTION SESSION IN L/R （1/4"PHONE JACK） RETURN IN L/R （1/4"PHONE JACK） OUTPUT MASTER L/R （1/4" TRS BALANCED） SECTION SUB MASTER L/R （1/4" JACK UNBALANCED） SEND OUT L/R （1/4" JACK） HEADPHONE （1/4"PHONE JACK） FREQUENCY RESPONSE S/N RATIO RATED INPUT... - Page 16 JUNE.2000 PMC-07Pro ISPE Vestax Corporation...
