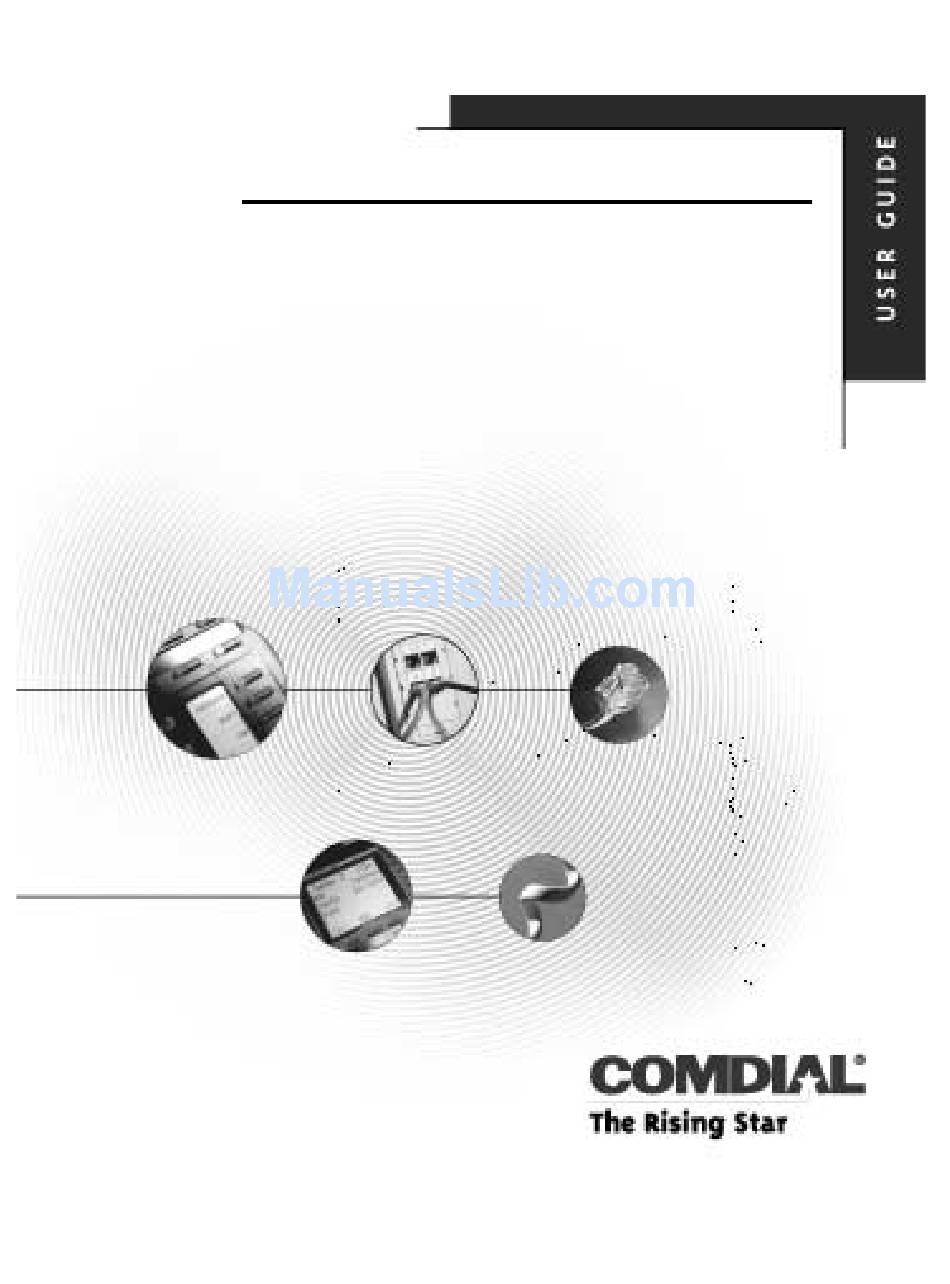

DSU II Digital Expandable Systems
Non-LCD Speakerphone
Station User's Guide
This publication supports both
Impact and Impact SCS LCD Speakerphones
GCA70–248.10 07/00
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCA70-248 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comdial GCA70-248

Summary of Contents for Comdial GCA70-248

  • Page 1 DSU II Digital Expandable Systems Non-LCD Speakerphone Station User’s Guide This publication supports both Impact and Impact SCS LCD Speakerphones GCA70–248.10 07/00 Printed in U.S.A.
  • Page 2 This User’s Guide is for the following system : DSU II Digital Expandable Systems This user’s guide applies to the following telephone models: • Impact 8124S-** Rev. A and later. • Impact 8112S-** Rev. A and later. • Impact 8112N-** Rev. A and later. •...
  • Page 3 GCA70-248 About This Book This user’s guide serves as both an introduction for new speakerphone users and a reference for experienced users. Introduction The first chapter of the manual describes the initial setup and adjustments necessary to begin using your speakerphone.
  • Page 4 Also, to eliminate confusion, the text of this guide instructs users to “PRESS” fixed buttons of the telephone and “SELECT” interactive buttons as in the examples above. Instructions to “DIAL” refer to numbers or symbols on the keypad. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 5: Table Of Contents

    GCA70-248 Contents Getting Started ....1 Setting Up Your Station ....1 Understanding the Basic Functions .
  • Page 6 Data Interface Unit ....61 DSS/BLF Console Operation ... 62 Feature Access Codes ... . . 65 Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 7 GCA70-248 Glossary ..... 69 Speakerphone Characteristics ..77 Index ..... . . 79 Non-LCD Speakerphone Station User’s Guide...
  • Page 8 Contents GCA70-248 Notes Non-LCD Speakerphone Station User’s Guide...

  • Page 9: Getting Started

    GCA70-248 Getting Started Welcome Congratulations and thank you for using a Comdial telephone! Your digital station is supported by a communication system with hundreds of built-in, standard features. This manual serves as a helpful guide for using these various functions.
  • Page 10 So please try to place the telephone in an area that is free from the danger of spills. Telephone First Notch Second Notch Third Notch Supporting Arm (For Highest Position) Pedestal Base Adjusting The Pedestal Non-LCD Speakerphone Station User’s Guide GCA70-248 PED01...

  • Page 11: Setting A Personal Ringing Tone

    GCA70-248 Setting a Personal Ringing Tone You can choose one of eight different ring tones for your telephone. Often, when several telephones are located close together, each user chooses a different personal ring tone. To select one of the ring tones, proceed as follows: 1.

  • Page 12: Answering And Making Calls

    2. SPEAK toward telephone OR LIFT handset if privacy is desired. When you hear intercom ringing (two short bursts), 1. PRESS INTERCOM. 2. SPEAK toward telephone OR LIFT handset if privacy is desired. Impact 8124 Volume Control Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 13 GCA70-248 To dial an outside number manually, 1. PRESS INTERCOM. 2. DIAL in the system specific Advanced Features chapters for more infor- mation on selecting an outside line). 3. LISTEN for dial tone. 4. DIAL number. 5. LIFT handset if privacy is desired.

  • Page 14: Understanding The Basic Functions

    Transfer/Conference Button* TRNS/CONF Speaker Button* SPEAKER MUTE HOLD Mute Button* SCS001 Hold Button* Microphone Opening *NOTE: These are default button locations. Your system installer may have reprogrammed these buttons to better suit your needs. Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 15 GCA70-248 Handset Speaker Dialpad Transfer/ Conference Button Message Waiting Light Hold Button Connectors On Bottom Of Telephone Line Cord Handset Transfer/ Conference Button Hold Button Non-LCD Speakerphone Station User’s Guide INL001 M NO OPER TRNS/CNF HOLD INTERCOM SPEAKER SHIFT M UTE...

  • Page 16: Your Station's Buttons

    Speaker Button (SPEAKER) (not available on 8112N and 8212N) · Turns your speaker on or off. · Disconnects a call when you are on a handsfree call. · Ends or cancels programming. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 17: Transfer/Conference Button (Trns/Conf)

    GCA70-248 Tap Button (TAP) · Recalls dial tone or generates a hookflash. · Retrieves held calls or last call placed on hold. Transfer/Conference Button (TRNS/CONF) · Transfers calls. · Sets up conference calls. Volume Control (VOLUME UP or VOLUME DOWN) ·...

  • Page 18: Your Station's Display Lights

    DSS/BLF programmable buttons. Ensure that these buttons are labeled cor- rectly to indicate their unique features. Above the MUTE button: · On steady = called party cannot hear your conversation. Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 19 GCA70-248 Next to INTERCOM button: · Steady green or red = you are using your intercom. · Fluttering red = an LCD message is set on your telephone for others to receive when calling. · Flashing orange = someone is calling your extension or a call is being transferred to you.

  • Page 20: Supported Telephone Models

    The IMIST module only works with the 8212S and 8212N telephones. Speakerphone Models • Has a dedicated message button with an associated light beside it. (8212S and 8212N) • Supports the ICVOL handset with independent volume control. Exceptions Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 21: Answering Calls

    GCA70-248 Answering Calls Answering Outside Calls A call that rings on an outside line sounds long, single-tone bursts and lights the line status light. If the installer enabled ringing line preference at your station, an orange light flashes next to the line that your station answers when you lift the handset; a red light will flash for any other ringing line.

  • Page 22: Answering Intercom Calls

    The system attendant can take action that transfers incoming calls to a particular station or stations for off-hour ringing. When you hear ringing, 1. PRESS INTERCOM. 2. DIAL 3. SPEAK toward telephone to answer call OR LIFT handset if privacy is desired. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 23: Do Not Disturb Condition

    GCA70-248 Do Not Disturb Condition The Do Not Disturb feature keeps calls from ringing at your station and makes your station appear to be busy to intercom calls. NOTE: For instructions on programming a dedicated DO NOT DISTURB button at your station, see the Feature Buttons section of page 49.

  • Page 24: Holding Calls

    If the call is on exclusive hold, it will revert to manual hold after the hold recall period. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 25: Directed Hold

    GCA70-248 If a held line is recalling, choose one of the following: 1. PRESS HOLD (station button) to place the call on hold at your station and restart hold timer 2. PRESS line button (with flashing orange light) OR PRESS TAP to retrieve the call.

  • Page 26: Call Pickup

    You can use the light associated with this button to monitor the status of that telephone, and you can press the button to make a call to that telephone if you wish. Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 27 GCA70-248 To monitor another telephone, 1. OBSERVE the BLF light indications next to the Direct Station Select (DSS/BLF) button: • Off = Station is idle • Flashing (if enabled) = Station has an incoming call • On = Station is busy...

  • Page 28: Receiving Subdued Off-Hook Voice Announcements (Sohva)

    (SOHVA call is disconnected). NOTE: A station that is currently active in speakerphone mode CAN NOT respond to a SOHVA. When a SOHVA tone is received, you must lift the handset before responding as detailed above. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 29: Voice Announce Blocking

    GCA70-248 Voice Announce Blocking If your system installer makes Voice Announce Blocking available, you can prevent voice announcements from sounding over your telephone speaker if you wish. This feature also blocks Subdued Off-Hook Voice Announcements (SOHVA) and generates a tone in response to attempted SOHVAs.
  • Page 30 Answering Calls GCA70-248 Notes Non-LCD Speakerphone Station User’s Guide...

  • Page 31: Making Calls

    GCA70-248 Making Calls Making Outside Calls You can manually dial a number over any telephone line you select. Or, if the installer assigned a prime line or the idle line preference feature, your station auto- matically selects a line for use when you lift the handset.

  • Page 32: Making Intercom Calls

    INTERCOM button again after dialing the extension number or by pressing the DSS/BLF button again. To voice announce manually, 1. PRESS INTERCOM. 2. DIAL extension number. 3. SPEAK your announcement. To voice announce automatically, 1. PRESS DSS/BLF button. 2. SPEAK your announcement. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 33: Automatic Dialing

    GCA70-248 Automatic Dialing Automatic dialing provides one- or two-button speed dialing using programmable buttons at which you have previously stored numbers. There are two types of speed dial numbers: (1) numbers that you store for your own use (personal speed dial numbers and autodial numbers), and (2) numbers that the system attendant stores for everyone’s use (system speed dial numbers).

  • Page 34: Redialing

    30 seconds. To cancel this automatic redial action, 1. LIFT AND REPLACE handset OR, USE the telephone for some other function. The INTERCOM light then turns off and the phone returns to idle. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 35: Redial Programming (Storing Numbers)

    GCA70-248 Redial Programming (Storing Numbers) You can permanently store a number at any programmable button location that does not currently have a number or feature associated with it. (For programming of a SAVED NUMBER REDIAL button at your station, refer to Feature Buttons section on page 49.)

  • Page 36: Camping On Options

    If the telephone you have called is busy, you can send a call waiting tone to a busy telephone and wait on the line for an answer. . A callback will occur when called station is no Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 37 GCA70-248 To camp on when you hear a busy signal, 1. MAKE intercom call AND HEAR busy signal. 2. DIAL 3. Remain on line awaiting a reply. 4. The called party will hear a short tone burst. They can either place their current call on hold or hang it up and then answer your call.

  • Page 38: Paging

    To make a reply to a Meet-Me page, 1. LIFT handset of nearest telephone. 2. PRESS INTERCOM. 3. DIAL 4. MEET paging party on line. for special paging port. for all-call, OR DIAL Non-LCD Speakerphone Station User’s Guide GCA70-248 , or...

  • Page 39: Advanced Call Handling

    GCA70-248 Advanced Call Handling Waiting for a Line (Queuing) If all the lines in a line group are busy, you can place your telephone in a queue to await an idle line in the line group. To queue for a line group, 1.

  • Page 40: Call Transferring

    If you announce the transfer over the speaker, the intercom party’s telephone rings with the transferred call after you hang up. If the intercom party is busy or does not answer, 1. PRESS flashing line button AND LIFT handset if privacy is desired. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 41: Unscreened Call Transfers

    GCA70-248 Unscreened Call Transfers You can answer a call at your station and transfer it to another telephone. If you transfer the call without first announcing it, you have made an unscreened transfer. To transfer an unscreened call to another system telephone, 1.

  • Page 42: Conferencing

    1. PRESS the line button of the remaining party. To retrieve a line from hold and bring that party back into the conference, 1. PRESS TRNS/CONF. 2. PRESS line button. 3. PRESS TRNS/CONF. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 43: Unsupervised Conference Calls

    GCA70-248 Unsupervised Conference Calls If you are involved in a conference call with two outside lines, you can drop out of this established conference call and leave the outside lines in the conference with each other. This is known as an unsupervised conference call.

  • Page 44: Call Forwarding

    To cancel all call forwarding, 1. PRESS INTERCOM AND DIAL 2. HANG UP OR PRESS SPEAKER to end. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 45: Call Forward Outside System (Cfos)

    GCA70-248 Call Forward Outside System (CFOS) The Call Forward Outside System (CFOS) feature gives you the ability to forward line calls to a remote location outside the system. CFOS remains in effect in the event of a loss of power or a system reset.

  • Page 46: Call Parking

    1. PRESS associated line button. The call will then connect to your station. 2. PRESS HOLD. If the call remains on hold for a period of time, it will ring back to your telephone as a hold recall. for orbit Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 47 GCA70-248 To re-park a park recall and restart the park timer, 1. ANSWER/RETRIEVE call. 2. PRESS INTERCOM AND DIAL then be placed back in its original park orbit and will remain there until it is answered or until it recalls again).

  • Page 48: Account Codes

    2. PRESS INTERCOM (call is automatically placed on hold). 3. DIAL ACCOUNT CODE button. 4. LISTEN for dial tone AND DIAL number you are calling. OR other line button (the display will prompt for AND account code, OR PRESS programmed Non-LCD Speakerphone Station User’s Guide GCA70-248 (call...

  • Page 49: Nonverbal Messaging

    GCA70-248 Nonverbal Messaging Station-To-Station Message Delivery When you call another telephone and receive no answer, you may leave a reminder that you have called. Do this by turning on the BLF light at the called telephone. If your telephone is not stored as a DSS/BLF button at the called telephone, your messaging call goes to the central message desk, if one is programmed.

  • Page 50: Lcd Message Delivery

    4. PRESS SPEAKER to end message. Intercom light flashes steadily. To turn off message and your intercom light, 1. PRESS INTERCOM. 2. DIAL Dial Code Back At Call LCD Message List (Write attendant supplied messages here.) Message Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 51: Assist Button Message Delivery

    GCA70-248 Dial Code Assist Button Message Delivery If you have preprogrammed an ASSIST button on your telephone, you can use it to send a message to your supervisor, asking for assistance while you are on a call. Your message shows in the supervisor’s telephone display.

  • Page 52: Message Waiting Light And Messaging

    To receive a message at an alert 1. OBSERVE flashing message waiting light. 2. PRESS MESSAGE. (PRESS INTERCOM AND HOLD for models 8112N, 8112S and 8124S). Connection to the station that left message is automatic. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 53: Programming

    GCA70-248 Programming DSS Numbers Storing another station at a DSS/BLF programmable location on your telephone allows you to monitor that station, dial with the press of one button, or pick up or hold calls at that station quickly and conveniently.

  • Page 54: Autodial And Speed Dial Numbers

    2. DIAL 3. PRESS programmable button or keypad button to choose storage location. 4. SELECT line button to dial out on or press INTERCOM. 5. DIAL any number up to 16 digits long (include needed). Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 55: Speed Dial Numbers

    GCA70-248 NOTE: You may need a pause between numbers to compensate for differences in response time between your system and the host system (ask your atten- dant about this). To store a pause, press HOLD , then continue dialing. If your system is behind a host system that needs a hookflash to access a feature, press TAP to store a hookflash, then continue dialing.
  • Page 56 Programming Speed Dial Numbers, Features or DSS Locations As you program numbers, fill in the identification strips on your telephone as well as these tables. (Programmable Buttons) Personal Speed Dial Numbers (Keypad Buttons) Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 57: Feature Buttons

    GCA70-248 Feature Buttons If you find that you are using certain miscellaneous features often, access buttons for these features may make operation easier. Some examples of common feature buttons include: · Account Code Button record purposes. · Automatic Call-Back (Camp On) Button ring your and another’s telephones as soon as their telephone becomes...

  • Page 58: Special Purpose Feature Buttons

    4. DIAL extension number. 5. PRESS SPEAKER to end. Subdued Off-Hook Voice Announce (SOHVA) Button You can program a button at your station that you can press to enable the delivery of a SOHVA call. through Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 59 GCA70-248 To program a SOHVA button, 1. PRESS INTERCOM AND DIAL 2. PRESS desired programmable button. 3. DIAL 4. PRESS SPEAKER to end programming. Group Listening Button Group listening allows others to listen to a conversation over your telephone speaker while allowing the distant party to hear only that conversation that is sent through the handset speaker.

  • Page 60: Assist Button

    LCD messages). 5. IF one particular station must always receive message, DIAL extension number of that station. 6. PRESS SPEAKER to end. to choose system-provided message ( ASSIST etc.) to choose pre- Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 61: Other Advanced Features

    GCA70-248 Other Advanced Features Line Groups Some systems have telephone lines arranged into line groups that are made available at the telephone instead of individual lines. To access a system line group, 1. PRESS INTERCOM. 2. Dial desired line group access code:...

  • Page 62: Volume Control

    (not available on 8112N): 1. While on a call and in handset mode, PRESS the VOLUME UP OR VOLUME DOWN button once for each change in loudness that you desire. Impact SCS Volume Buttons Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 63 GCA70-248 NOTE: When the call ends, the system resets the loudness of all future calls to the programmed (default) setting. For instructions in setting your sta- tion’s default volume, see Default Volume Control section in the system spe- cific Advanced Features chapter.

  • Page 64: Default Volume Control

    VOLUME UP or VOLUME DOWN. When the call ends, the volume of all future calls is reset to the programmed (default) setting. Impact SCS Volume Buttons to hold the loudness at Impact Volume Buttons Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 65: Background Music (Not Available On 8112N Or 8212N)

    GCA70-248 Background Music (not available on 8112N or 8212N) If the telephone system supplies background music, you can turn it on at your station while it is on-hook and idle. The system automatically turns background music off during calls and voice announcements.

  • Page 66: Tracker Paging System

    4. HANG UP handset OR PRESS SPEAKER to end. The Pager—Tracker system will transmit your station extension number to the caller’s Tracker Pager display. (Some models will also display your station name if the system is programmed to in- clude station names.) Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 67 GCA70-248 To park a call and have Pager—Tracker tell someone to retrieve the call, 1. ANSWER call AND PRESS TRNS/CONF. 2. DIAL Extension. 3. PRESS programmed TRACK button OR DIAL 4. Hang up handset or press SPEAKER to end.* The Pager—Tracker system will transmit orbit dialing code and caller ID information, if available, to called party’s Tracker Pager display.

  • Page 68: Automatic Set Relocation

    1. CONNECT the telephone line cord to the new jack. 2. OBSERVE the flashing HOLD light AND DIAL light is still flashing (your telephone immediately assumes the features from the new location). while the Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 69: Data Interface Unit

    GCA70-248 Data Interface Unit The Data Interface Unit, or DIU, is an optional external device that may be part of your system installation. It provides connections for both your telephone and an IST device such as a standard single-line telephone, a FAX machine, a data modem, a cordless telephone, or an answering machine.

  • Page 70: Dss/Blf Console Operation

    DSS buttons so that you can store numbers at the buttons as you need them. The DSS/BLF console will not operate in a bridged mode. IB64X DSS/BLF Console Non-LCD Speakerphone Station User’s Guide GCA70-248 ib64x...

  • Page 71: Accessing The Dss/Blf Console Button Levels

    GCA70-248 Accessing The DSS/BLF Console Button Levels The IB24X and IB48X DSS/BLF consoles have four levels of buttons, quadrupling the consoles’ button capacity. The four buttons at the bottom of each console allow you to select which button level is currently active. To change button levels, press one of the buttons at the bottom of the console.
  • Page 72 Other Advanced Features GCA70-248 Notes Non-LCD Speakerphone Station User’s Guide...

  • Page 73: Feature Access Codes

    GCA70-248 Feature Access Codes This quick reference guide provides you with a list of the feature dialing codes used on the Impact digital telephone system. Feature Account Codes All Call Paging Attendant Automatic Callback Background Music Call Forwarding, All Calls...
  • Page 74 INTERCOM + extension number + INTERCOM + INTERCOM + message number INTERCOM + INTERCOM + INTERCOM group code INTERCOM + extension number Non-LCD Speakerphone Station User’s Guide GCA70-248 Disable Code INTERCOM + INTERCOM + INTERCOM INTERCOM + extension number...
  • Page 75 GCA70-248 Feature Night Answer Operator Paging, Zones 1-3 Paging, All-Call Paging, External Paging, Meet-Me Paging Park Orbit, Send Park Orbit, Retrieve Personal Ringing Tones (1-6) Redial Last Number Dialed Service Observe Station to Station Messaging System Speed Dialing Non-LCD Speakerphone Station User’s Guide...
  • Page 76 Feature Access Codes Feature Tracker Pager Tracker Pager—Send Tracker Page Toll Restriction Override Voice Announce Block Volume Save Enable Code INTERCOM + INTERCOM + INTERCOM + INTERCOM + INTERCOM + Non-LCD Speakerphone Station User’s Guide GCA70-248 Disable Code INTERCOM + INTERCOM +...
  • Page 77 GCA70-248 Glossary Account Code A group of numbers, up to 16 digits in length, entered by station users during incoming or outgoing calls; the system uses account codes to identify the calls by category, or special grouping, for call accounting purposes.
  • Page 78 A station that has been assigned to control message waiting lights and deliver messages to other stations in the system. Class Of Service (COS) Programming Customized programming of your system by the installer that establishes the basic operating parameters of the system and individual stations. Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 79 GCA70-248 Data Interface Unit (DIU) This optional unit provides connections for your standard multiline digital telephone and Industry Standard Telephone (IST) device such as a FAX machine or answering machine. Departmental Station Operation The operation of stations that are organized into departments.
  • Page 80 Analog telephone with only a basic 12 button keypad and no advanced features Intercom An internal communication system that allows you to dial another station at your office or location without connecting to the outside telephone system. Keypad Buttons through used for dialing. Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 81 GCA70-248 Last Number Redialing Automatically dialing the last number dialed. Liquid crystal display; the alphanumeric display of several Comdial Digital Telephone models. Line Groups Programmers assemble and program outside lines into distinct line groups which users must dial a certain code to access.
  • Page 82 An automatic connection to any outside line ringing at the station when the station handset is taken off-hook. Ringing Tones, Personal A telephone can be arranged to ring in one of six distinctive tones. Saved Number Redialing Saving a last manually dialed number for later autodialing. Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 83 GCA70-248 Screened Call Transfer Allows users to first announce and then transfer both line and intercom calls from one station or group to another. Service Observing Class of service programming option allows users to enter an in-progress call in an unannounced muted mode to monitor the call.
  • Page 84 A verbal intercom call. Voice Announce Blocking (VAB) A telephone can be set to block voice calls sent to it over the speaker. Zone Paging Paging through the intercoms of some stations or departments in the system. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 85: C Speakerphone Characteristics

    GCA70-248 Speakerphone Characteristics When using your speakerphone, the microphone and loudspeaker are farther away from you than when you use a handset. Both the signal from the loudspeaker and the signal to the microphone must be enhanced. When microphones and loudspeakers are close together (such as in a speakerphone), additional amplification typically generates a ringing sound (public address systems do this if the volume is too high or the microphone is too close to a loudspeaker).
  • Page 86 · When both you and the distant party use speakerphones, the sound-activated switches can occasionally detect both voices simultaneously, thus blocking out both voices. Non-LCD Speakerphone Station User’s Guide GCA70-248...

  • Page 87: Index

    GCA70-248 Index Answering Calls intercom calls, 14 outside calls, 13 Automatic Dialing, 25 Automatic Set Relocation, 60 Busy Lamp Field (BLF) Light location, 6 ,, 7 ,, 9 ,, 11 Button Locations, 6 ,, 7 ,, 9 ,, 11 Call Pick-Up...
  • Page 88 General diagram, 6 ,, 7 ,, 9 ,, 11 setting the volume, 54 user guidelines, 77 Subdued Off-Hook Voice Announcement (SOHVA) blocking all SOHVAs, 20 making a SOHVA, 27 responding nonverbally, 20 See Also Response Messaging Non-LCD Speakerphone Station User’s Guide GCA70-248...
  • Page 89 GCA70-248 TAP Button function, 9 location, 6 ,, 7 ,, 9 ,, 11 Transfer/Conference Button function, 9 location, 6 ,, 7 ,, 9 ,, 11 Transferring Calls screened transfers, 32 unscreened transfers, 33 Non-LCD Speakerphone Station User’s Guide TRNS/CNF See Transfer/Conference Button...
  • Page 90 Index GCA70-248 Notes Non-LCD Speakerphone Station User’s Guide...
  • Page 91 This manual has been developed by Comdial Corpora- tion (the “Company”) and is intended for the use of its customers and service personnel. The information in this manual is subject to change without notice. While every effort has been made to eliminate errors, the Company disclaims liability for any difficulties arising from the interpretation of the information contained herein.
