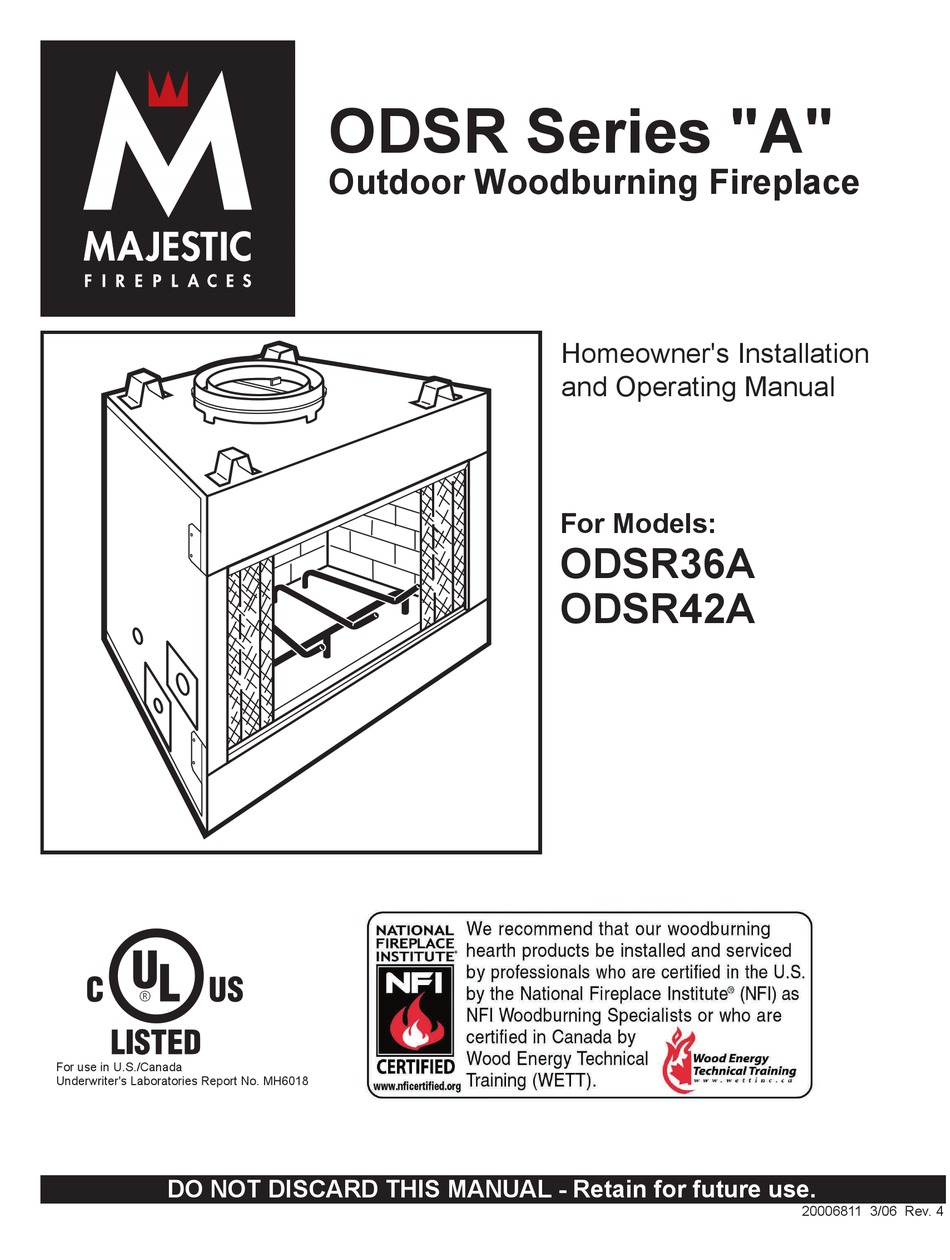

- Page 1 SR cover For use in U.S./Canada 11/18/97 Underwriter's Laboratories Report No. MH6018 DO NOT DISCARD THIS MANUAL - Retain for future use. ODSR Series "A" Outdoor Woodburning Fireplace Homeowner's Installation and Operating Manual For Models: ODSR36A ODSR42A 20006811 3/06 Rev. 4...
-
Page 2: Table Of Contents
Warranty ............23 Units: GF1SR6, GF1SR2 Table of Contents ODSR36A / ODSR42A Listed UL 127 / ULC-S610... -
Page 3: Safety Information
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING FIREPLACE. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instruc- tions may result in a possible fire hazard and will void the warranty. NOTE: These units are intended for outdoor use in the United States and Canada using the 'SK' chimney sys- tem. -
Page 4: Specifications And Framing
48���" (1232mm) 1/2" (13mm) 1/2" 39���" (1006mm) Outside Gas Line Access 11" (279mm) 8" (203mm) Fig. 1 ODSR36A specifications and framing. ODSR42A Woodburning Fireplace — Circulating Model 50" (1270mm) 1/2" (13mm) 1/2" 39���" (1006mm) Outside Gas Line Access 11" (279mm) 8"... -
Page 5: Chase Installation And Parts Identification
Chase Installation Insulation methods shown are optional for cold climate, not a requirement for unit operation. Batt Insulation (cut out around fiestop) Firestop Ceiling Level Nailing Flange Gas Line Access (both sides) Electrical Access Outside Air Cover Plate Fig. 3 Fireplace and chase parts identification. NOTE: If the fireplace is a freestanding unit, it must be located a minimum of 10'... -
Page 6: Chimney Requirements
Illustration Key The following safety rules apply to offset installations (letters correspond with il- lustration above): A. Height of the chimney is measured from the hearth to the chimney exit. ODSR36A ODSR42A Maximum: 90'0" 90'0" Minimum: Without Elbows 12' 6"... -
Page 7: Planning Information
Preplanning an installation is very important to ensure safety and to save time and money. An installer must predetermine where a fireplace will be set and how the chimney system will be run. Mounting the Fireplace A fireplace may only be mounted on the following sur- faces: 1. -
Page 8: Chimney Supports
Majestic Fireplaces ODSR Series "A" ® Chimney Supports The chimney system is supported by the fireplace for vertical chimney heights less than 30' (9 m) above the hearth. Chimney supports are required if the vertical height exceeds 30' (9 m) with SK8 chimneys or 20' (6 m) with 3-wall chimneys. -
Page 9: Framing
Framing Framing can be constructed before or after the fireplace is set in place, however, most installers build the frame before setting the fireplace. Frame fireplace with 2 x 4 lumber or heavier materials. Refer to framing dimensions in Figures 1, 2, 3 or 4 for basic fireplace specifications. -
Page 10: Cutting The Hole
Majestic Fireplaces ODSR Series "A" ® Cutting the Hole Cover fireplace collar opening and cut proper sized chimney hole in chimney. The SK8 pipe allows you to run pipe through a typical 16” on center joist without cutting joists. Framing the Ceiling Hole Frame the ceiling chimney hole as shown in Figure 12. -
Page 11: Installing Outside Air Kit
Installing Outside Air Kit An outside air kit is not installed in all ODSR Series "A" Fireplaces. If desired, or if local codes mandate the use of an air kit, then an AKU1 is required . If the outside air kit is to be used, the AKU1 MUST be installed BEFORE the fireplace is enclosed. - Page 12 Majestic Fireplaces ODSR Series "A" ® Attic Installation Ceiling Installation Fig. 17 Installing firestop spacer. Install the attic insulation shield with the flanges on its base extending down into the framing hole. Nail each FP593 corner of attic insulation shield to the framing members SR/C of the ceiling hole using 8d nails.
-
Page 13: Finishing
Cut and frame the hole. It is good practice to use fram- ing lumber that is the same size as the rafters. Install the frame securely because the chimney top and flash- ing anchored to the frame must be able to withstand heavy winds. - Page 14 Majestic Fireplaces ODSR Series "A" ® Mantel Clearance - No Noncombustible Facing Material Combustible Mantel (305mm) and Trim 1¹⁄₂" (38mm) 12" (305mm) Min. * Minimum width from top of surround to bottom of screen rail Fig. 20 Mantel clearances. 1¹⁄₂" Ref.
-
Page 15: Side Wall Protection
EH2416 insulation (minimum R Value = 1.85) between decorative noncombustible rigid covering and combustible wall. Minimum height and width is 40" x 40". ** Dimension/degree of angle will vary depending on thickness of noncombustible surround facing. ODSR36A 16" 406 mm 305 mm ODSR42A 20"... - Page 16 Majestic Fireplaces ODSR Series "A" ® COMMON MATERIALS AND FACTORS MATERIAL EH2416 0.458 1.09 (CFM Corporation) Common Brick 0.10 R Value is for 1/2 inch. * Units of K = BTU/SQ FT/HR/˚F/IN ** Thickness of Listed Material Fig. 23 Hearth extension material factors. WARNING: HEARTH EXTENSION MUST BE IN- FP533ADD Addendum...
-
Page 17: Installing Line For Gas Logs
Installing Line for Gas Logs Majestic Fireplaces' fireplaces are designed to accept a 1/2" (13 mm) gas line for installation of an approved gas appliance. (CFM Corporation manufactures a wide variety of gas logs for use in Majestic Firepalces.) Be sure to have the appliance installed in accordance with building codes. -
Page 18: Replacement Parts
ODSR Series "A" ® CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. ODSR36A/42A Outdoor Woodburning Fireplace Item/Model Number 1. Damper Weld Assembly 2. Damper Bracket 3. -
Page 19: Accessories
Complete kit for connection from fireplace to out-of-doors Converts fireplace to 3-wall system Provides hearth extension floor protection Patch cracks in hearth ODSR Series "A" ® Model Number 36GDKBBSR (ODSR36A) 42GDKBBSR (ODSR42A) 36GDKBKSR (ODSR36A) 42GDKBKSR (ODSR42A) 36GDKDBSR (ODSR36A) 42GDKDBSR (ODSR42A) 36GDKSSR (ODSR36A) 42GDKSSR (ODSR42A) -
Page 20: Chimney Components
Majestic Fireplaces ODSR Series "A" ® U.S. Component Round Top Termination Round Top Termination - Extended Flashing Square Termination Housing Adapter Kit Housing Extensions Square Chase Termination Adapter Kit Chase Top Housing Chase Top Housing SK8 Chimney Sections SK8 Chimney Elbows Firestop Chimney Support Chimney Components... - Page 21 (Chimney Components con't.) Canada Component Chimney Collar Enclosure Attic Insulation Shield SK8 Chimney Sections 45˚ Chimney Elbows 20006811 Majestic Fireplaces Description Installs on the "over the chimney collar" of the fireplace; provides outside air to assist in cooling the chimney system. Used to prevent insulation from coming in contact with the chimney system.
- Page 22 Majestic Fireplaces ODSR Series "A" ® 20006811...
-
Page 23: Warranty
LIMITED WARRANTY & 30 YEAR PROTECTION PLAN For MAJESTIC FIREPLACES CFM Corporation warrants its MAJESTIC FIREPLACES® Pre- Engineered Fireplace (“Fireplace”) and the CFM Corporation sup- plied firegrate, glass doors, outside air system, fan motor, and liners to be free from defects in material or workmanship, as follows: A. - Page 24 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
