Majestic ODGSR36A Homeowner's Installation And Operating Manual

Vermont castings outdoor gas fireplace homeowner's installation and operating manual odgsr36a, odgsr42a

Advertisement

INSTALLER/CONSUMER

SAFETY INFORMATION

PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch;
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing
this equipment.
WARNING:
For Outdoor Use ONLY.
Outdoor Gas Fireplace
Models:
ODGSR36A, ODGSR42A
Homeowner's Installation and
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Operating Manual
7114
ODUVSR
cover
11/03
C E RT I F I E D
20007114 7/06 Rev. 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODGSR36A and is the answer not in the manual?

Questions and answers

Summary of Contents for Majestic ODGSR36A

  • Page 1: Safety Information

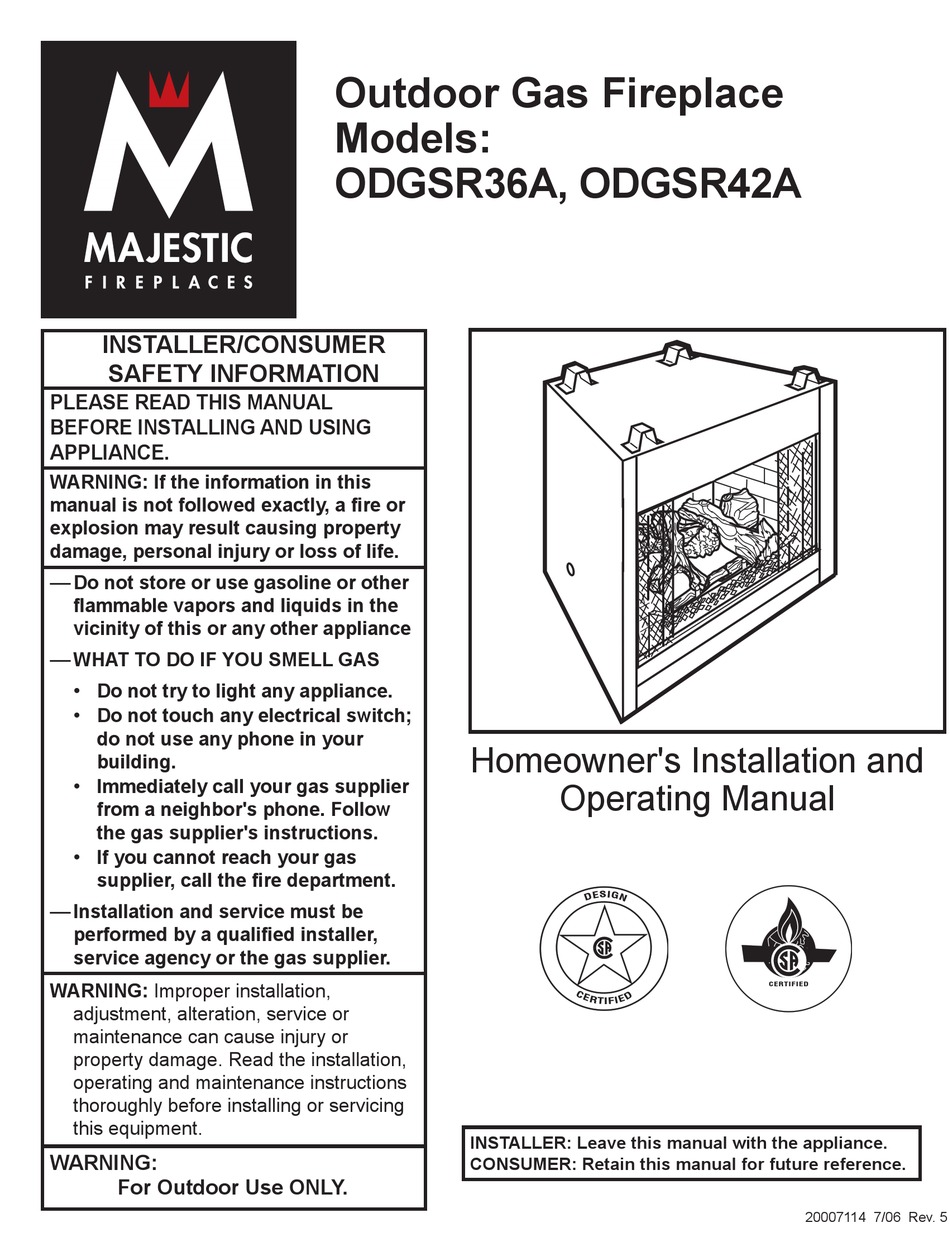

    WARNING: For Outdoor Use ONLY. Outdoor Gas Fireplace Models: ODGSR36A, ODGSR42A Homeowner's Installation and Operating Manual INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. 7114 ODUVSR...
  • Page 2: Table Of Contents

    ODGSR Series Outdoor Gas Fireplace Thank you and Congratulations on your purchase of a CFM Corporation fireplace. PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
  • Page 3: General Information

    This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CSA-B149.1 Installation codes for Gas Burning Appliances and Equipment. FOR U.S.A Installations follow local codes and/or the cur- rent National Fuel Gas Code. ANSI Z223.1/NFPA 54. In the Commonwealth of Massachusetts, all gas fittings and installation of this heater shall only be done by a licensed gas fitter or licensed plumber.
  • Page 4: Fireplace Dimensions

    ODGSR Series Outdoor Gas Fireplace 48���" (1232mm) ���" (13mm) �����" (822mm) ���" 39���" (1007mm) Low Voltage Wire Access Fig. 1 ODGSR36A specification and framing dimensions. 50" (1270mm) ���" (13mm) 35���" (895mm) ���" 39���" (1007mm) Fig. 2 ODGSR42A specification and framing dimensions. Fireplace Dimensions ��"...
  • Page 5: Screened Porch Installation

    Screened Porch Installation The ODGSR may be installed safely and is design certified by CSA to be installed in a screened porch with these guidelines: Minimum porch area ...96 sq. feet (9sq m) Minimum celing height ... 92" (2,337 mm) Minimum of two (2) walls must be screened Minimum top of screen height, side walls ...6'6"...
  • Page 6: Framing & Finishing

    ODGSR42ARP Gas Inlet & Manifold Pressures Minimum Inlet Pressure Maximum Inlet Pressure Manifold Pressure ODGSR36A / ODGSR42A Units: G01AU6, G01BU6, G01AU2, G01BU2 Nail Top Input ratings are shown in BTU per hour and are Standoffs certified without deration from elevations up to 4,500 feet (1,370 m) above sea level.
  • Page 7: Gas Line Installation

    Fig. 5 Valve access. FP1414 ODUVSR valve access 11/24/03 djt Fig. 6 Lift brick with logo on it to access valve. FP1415 lift brick access 11/24/03 djt Nailing Flange Valve Access Panel FP1416 Fig. 7 Parts identification. FP1416 Gas Line Installation ODUVSR part id This appliance must be isolated from the gas supply...
  • Page 8: Remote Wall Switch

    ODGSR Series Outdoor Gas Fireplace Remote Wall Switch NOTE: Use an approved outdoor switch. 1. Thread wire through the low voltage wire access hole located on either side of unit. Do not cut wire or insu- lation on metal edges. Ensure that wire is protected. Run the other end to a conveniently located wall receptacle box.
  • Page 9: Operating Instructions

    Log Installation 1. Remove logs from the packaging. As with all plastic, these bags are not toys and should always be kept away from children and infants. 2. Place left rear log on rear log support. Ensure that log is firmly positioned and there is no side-to-side movement.
  • Page 10: Flame Adjustment

    flames. Compare them to the il- lustrations below (Figs. 14, 15, 16). If any of the flames appear abnormal call a service person. Red Glow Fig. 14 ODGSR36A flame appearance. Fig. 15 ODGSR42A flame appearance. Turn clockwise to lower flame height Fig.
  • Page 11 4/1/04 djt 20007114 An optional stainless steel hood is available for both the ODGSR36A and ODGSR42A. Installation Instructions: 1. Turn the unit off and allow to cool. 2. Place the hood so the 2⁵⁄₈" (67 mm) slot clears the sensor plate located under the fireplace opening on...
  • Page 12: Lighting & Operating Instructions

    ODGSR Series Outdoor Gas Fireplace Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- ally.
  • Page 13: Troubleshooting

    Nova SIT 820 Standing Pilot START Gas Supply On Pilot Lights with Piezo Ignitor Pilot Stays Lit Pilot Lights Main Burner System OK 20007114 ODGSR Series Outdoor Gas Fireplace Troubleshooting CHECK Supply Line Hooked up Shutoff Valve Open Lockout has engaged. Wait 60 seconds and try again.
  • Page 14: Maintenance

    ODGSR Series Outdoor Gas Fireplace Burner and Burner Compartment It is important to keep the burner and the burner compartment clean. At least once per year the logs should be removed and the burner compartment vacuumed and wiped out. Remove and replace the logs as per the instructions in this manual.
  • Page 15 1. ODGSR36A Logs 18a/b CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. ODGSR36A, ODGSR42A Ref. Description Logs - Complete Set Log - Left Rear Log - Right Rear...
  • Page 16: Replacement Parts

    ODGSR Series Outdoor Gas Fireplace ODGSR36A, ODGSR42A Ref. Description Pilot Tubing Cable Ignitor 24" Thermocouple 24" Grate 18a. Pilot Orifice - Natural 18b. Pilot Orifice - LP 19a. Valve NOVA - Natural 19b. Valve NOVA - LP 20a. Air Shutter - Natural...
  • Page 17 The following accessories are available from your local Majestic Fireplaces distributor. Each accessory comes with a separate installation instruction for mounting to the particular firebox. Be sure to read each instruction thoroughly before installing. Accessory 4" Stainless Steel For heater up to 40,000 BTU's and mantels Hood 8"...
  • Page 18 ODGSR Series Outdoor Gas Fireplace 20007114...
  • Page 19: Installation & Operating Instructions

    PRODUCT COVERED BY THIS WARRANTY All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic brand gas fireplaces equipped with an Insta-Flame Ceramic Burner, or standard steel tube burner. BASIC WARRANTY CFM Corporation (hereinafter referred to collectively as the Company) warrants that your new Vermont Castings or Majestic Gas Fireplace/ Stove is free from manufacturing and material defects for a period of one year from the date of purchase, subject to the following conditions...
  • Page 20 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
