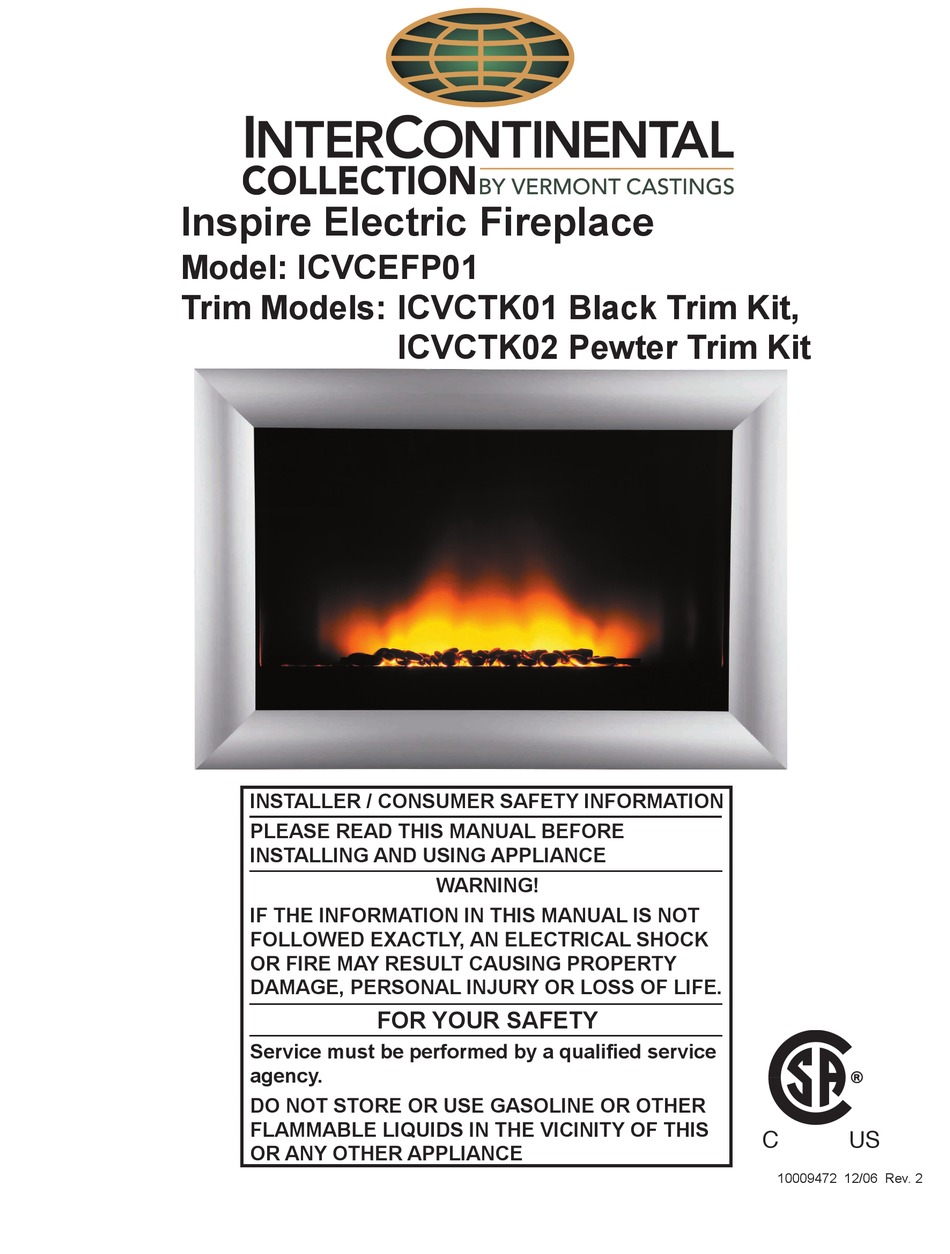

Inspire Electric Fireplace
Model: ICVCEFP01
Trim Models: ICVCTK01 Black Trim Kit,
INSTALLER / CONSUMER SAFETY INFORMATION
PLEASE READ THIS MANUAL BEFORE
INSTALLING AND USING APPLIANCE
IF THE INFORMATION IN THIS MANUAL IS NOT
FOLLOWED EXACTLY, AN ELECTRICAL SHOCK
OR FIRE MAY RESULT CAUSING PROPERTY
����
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
������� �����
����
Service must be performed by a qualified service
agency.
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE LIQUIDS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE
ICVCTK02 Pewter Trim Kit
WARNING!
FOR YOUR SAFETY
C
US
10009472 12/06 Rev. 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vermont Castings ICVCTK01
Summary of Contents for Vermont Castings ICVCTK01
- Page 1 Inspire Electric Fireplace Model: ICVCEFP01 Trim Models: ICVCTK01 Black Trim Kit, ICVCTK02 Pewter Trim Kit INSTALLER / CONSUMER SAFETY INFORMATION PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT CAUSING PROPERTY ����...
-
Page 2: Table Of Contents
Inspire Electric Fireplace Thank you and congratulations on your purchase of a CFM Corporation electric fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the war- ranty. -
Page 3: Installation Instructions
Installation Instructions General 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains away at least 3’... -
Page 4: Fireplace Dimensions
Inspire Electric Fireplace Fireplace Dimensions 35�����” (910 mm) [Heater Main Body Width 32���” (832 mm)] Electrical Specifications Voltage 120V ac, 60 Hz Total Amps 7.9 Amps Total Watts 1050W Heater Rating 2 x 500W Illumination 2 x 20W Low Energy Bulb Electrical Connection A 15 amp, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. -
Page 5: Direct (Hard) Wiring Electric Fireplace
Direct (Hard) Wiring Electric Fireplace WARNING: This procedure must be conducted by a qualified electrician, in accordance with National and local codes. In the U.S.A., the installation must conform to the National Electrical Code, ANSI/NFPA No. 70. In Canada, the installation must conform to the current CSA C22.1 Canadian Electrical Code. -
Page 6: Fireplace Assembly
Inspire Electric Fireplace Fireplace Assembly Unpack the Appliance The Inspire Electric Heater is supplied in two (2) car- tons. All instructions should be read before beginning installation. Carton 1 contents 1, Electric heater main body 1, Remote control handset with battery 1, Mounting hanger 1, Mounting hardware kit [#12 x 1/2”... - Page 7 Insert Panel Fig. 3 Place insert panels on either side of trim. 5. Hang the trim to the heater main body’s upper trim ������ support at a slight angle and between the trim insert panels. Slowly, swing the trim down until the mag- ����...
-
Page 8: Operating Instructions
Inspire Electric Fireplace Operating Instructions Heater Operation The heater is operated by the remote control handset. A master ON/OFF switch is located under the appliance on the left hand side. This is used to turn the appliance completely off. All further operations are controlled by using the remote control handset. -
Page 9: Maintenance
Maintenance WARNING Before carrying out any maintenance, ensure the appliance is disconnected from the main power supply. If in doubt, seek the assistance of a quali- fied technician. It is advisable to use genuine CFM Corporation replace- ment parts available from your authorized dealer. Light Bulb Replacement 1. -
Page 10: Replacement Parts
Inspire Electric Fireplace CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Inspire Replacement Parts Ref. Description 1. 20W Energy Saving Bulb* 2. Pebble Pack (not shown) 3. -
Page 11: Year Warranty
For Vermont Castings Electric Fireplace BASIC WARRANTY: CFM Corporation (hereinafter referred to collectively as the “Company”) warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of installation, subject to the following conditions and limitations. - Page 12 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
