INSTALLER/CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING
PROPERTY DAMAGE, PER-
SONAL INJURY OR LOSS OF
LIFE.
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency or the
gas supplier.
WHAT TO DO IF YOU SMELL
GAS:
•
Do not try to light any appliance.
•
Do not touch any electric switch;
do not use any phone in your
building.
•
Extinguish all flames.
•
Immediately call your gas
supplier from your neighbor's
phone. Follow the gas suppliers
instructions.
•
If you cannot reach your gas
supplier call the fire department.
•
Open windows/extinguish all
flames.
DO NOT STORE
OR USE GASOLINE OR
OTHER FLAMMABLE
VAPORS AND LIQUIDS IN
THE VICINITY OF THIS OR
ANY OTHER APPLIANCE.
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
Builder Rear Vent
Direct Vent

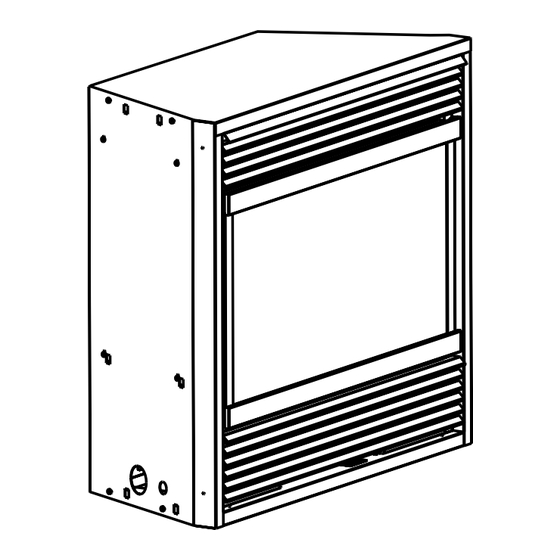

Model: H33BDVRRN/P
Homeowner's Installation and
Operating Manual
CFM Harris Systems
3501 West Howard • Skokie, IL 60076 • 847-676-3556
www.cfmharris.com
C E RT I F I E D
10004798 11/02 Rev. 0
Advertisement
Table of Contents
Related Manuals for pyromaster H33BDVRRN
Summary of Contents for pyromaster H33BDVRRN
- Page 1 THE VICINITY OF THIS OR ANY OTHER APPLIANCE. INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER Builder Rear Vent Direct Vent Model: H33BDVRRN/P Homeowner's Installation and Operating Manual CFM Harris Systems 3501 West Howard • Skokie, IL 60076 • 847-676-3556 www.cfmharris.com...
-
Page 2: Table Of Contents
Pyromaster H33BDVRRN/P © Please read the installation & operating instructions before using appliance Thank you and congratulations on your purchase of a CFM Harris Systems fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions fully may result in a possible fire hazard and will void the warranty. -
Page 3: Installation & Operating Instructions
Room divider or (E) Flat on wall corner positions (Y), a minimum of 6 inches (153mm) clearance must be main- tained from the perpendicular wall and the front of the fireplace. See (Y) in Fig. 1. H33BDVRRN/P © LU584-1 C) **Island... -
Page 4: Fireplace Dimensions
Pyromaster H33BDVRRN/P © Fig. 2 Fireplace specifications and framing dimensions. Fireplace Dimensions Rough Opening Depth Q - Rough Opening Width Rough Opening Height Ref. H33BDVRRN/P 33” (838mm) 28 ” (733mm) 16 ” (416mm) 31” (787mm) 22” (559mm) 11 ” (292mm) 14”... -
Page 5: Clearance To Combustibles
CFM146 Cold climate installation recommendation: Mantel from Top 17” (432mm) 15” (381mm) 13” (330mm) 11” (279mm) 9” (229mm) Pyromaster H33BDVRRN/P © Mantel Side of Combustion Chamber Mantel Mantel Leg from Side Leg Depth Ref. of Comb. Opening 10”... -
Page 6: Framing & Finishing
Pyromaster H33BDVRRN/P © Framing and Finishing 1. Choose the unit location. 2. Place the unit into position and secure it to the floor with 1 ” (38mm) screws, or nails. The holes to secure the unit to the floor are located just behind the access door grille on the left and right side of the unit. -
Page 7: Remote On/Off Switch
*Check with local codes or in absence of same with CSA-B149.1 Installation Codes (1991) for Canada or follow the current National Fuel Gas Code, ANSI Z223.1 for installations in the USA. Pyromaster H33BDVRRN/P © Remote ON/OFF Switch Alternate Switch Location Do not wire the remote ON/OFF wall switch for the gas fireplace to the 120 volt power supply. - Page 8 Pyromaster H33BDVRRN/P © General Venting Information - Termination Location VENT TERMINATION CFM145a A = Clearance above grade, veranda, porch, deck, or balcony B = Clearance to window or door that may be opened C = Clearance to permanently closed window...
-
Page 9: Termination Clearances
It is possible to use CFM Corporation 4” & 7” direct vent crimped pipe and elbows with CFM Corporation 4” & 7” twist-lock pipe. NOTE: The crimped pipe must be used first. Pyromaster H33BDVRRN/P © Recessed Location C = Maximum depth of 48" (1219mm) for recessed location. -
Page 10: Twist Lock Pipes
Pyromaster H33BDVRRN/P © Twist Lock Pipes When using CFM Corporation twist-lock pipe it is not necessary to use sealant on the joints. The only areas of the venting system that need to be sealed with high temperature silicone sealant are the collars on the fireplace and termination, and the sliding joint of any telescopic vent section used in the system. -
Page 11: Rear Wall Installations
4” pipe with three (3) screws before fixing the 7” pipe on the 7” collar. Both pipes must be on a level plane. (Fig 16) Pyromaster H33BDVRRN/P © Max. Length 12” (294mm) -
Page 12: Vertical Sidewall Applications & Installation
Pyromaster H33BDVRRN/P © STEP 5 Guide the vent termination 4” collar into the 4” pipe then the 7” collar into the 7” pipe. Do not force the venting into position. If the pipes do not line up with the termination collars, disassemble pipes and reattach to the fireplace collar. -
Page 13: Vertical Sidewall Installations
Noncombustible Walls (Fig. 21): Hole opening must CFM132 be 7 ” (190 mm) in diameter. Pyromaster H33BDVRRN/P © • IMPORTANT • Minimum clearance be- tween vent pipes and combustible materials is one (1”) inch (25 mm) on bottom, sides and top. - Page 14 Pyromaster H33BDVRRN/P © STEP 2 Measure wall thickness and cut adjustable zero clear- ance sleeve parts to proper length (MAXIMUM 12”/305 mm). (Fig. 22) Adjust sleeve to minimum (9 ” x 9 ”) and attach to firestop with #8 sheet metal screws (supplied).
-
Page 15: Below Grade Installations
(608mm) Minimum* Fig. 27 Below grade installation. Do not back fill around snorkel. A clearance of at least 4” (100mm) must be maintained between the snorkel and the soil. Pyromaster H33BDVRRN/P © 7DVSKS (Snorkel) Minimum 4” Clearance Ground Window Well... -
Page 16: Vertical Through-The-Roof Applications & Installation
Pyromaster H33BDVRRN/P © If the foundation is recessed, use recess brackets (not supplied) for securing lower portion of the snorkel. Fasten brackets to wall first, then secure to snorkel with self drilling #8 x 1/2 sheet metal screws. It will be necessary to extend vent pipes out as far as protruding wall face. - Page 17 Fig. 32 Typical support applications. Joist Fig. 33 Roof flashing. Upper Floor Joist Firestop Spacer Nails (4) CFM100 Fig. 34 Minimum termination to roof clearance. Pyromaster H33BDVRRN/P © Typical Roof Typcal Ceiling Support Application #5 Sheet Metal Screws (3 per joint) Sealant Storm Collar Min.
-
Page 18: Twist Lock Venting Components
Pyromaster H33BDVRRN/P © Twist Lock Venting Components 7TDVRVT-Through the wall Rear Vent Termination Starter Kit-Model7TDVSK-Sidewall Venting Starter Kit-Model 7TDVSKV-Vertical Venting for 7TDVSKV-A order 1/12 to 6/12 roof pitch for 7TDVSKV-B order 7/12 to 12/12 roof pitch for 7TDVSKV-F order flat roof... -
Page 19: Crimped End Venting Components
Firestop Spacer Model 7DVFS Attic Insulation Shield Model 7DVAIS Vertical/Horizontal Combination Offset Support Model 7DVCS Pyromaster H33BDVRRN/P © -6” to 10” adjustable length -10” to 18” adjustable length -18” to 34” adjustable length -34” to 66” adjustable length 4 per box... -
Page 20: Operating Instructions
Pyromaster H33BDVRRN/P © Glass Information Only glass approved by the CFM Corporation should be used on this fireplace. • The use of any non-approved replacement glass will void all product warranties. • Care must be taken to avoid breakage of the glass. -
Page 21: Flame & Temperature Adjustment
7. Scatter the lava rock material around the firebox base. Do not place any of the lava rock material on the burner housing. Embers Fig. 37 H33BDVRRN/P log placement. 10004798 For units equipped with ‘HI/LO’ valves the flame adjustment is accomplished by rotating the ‘HI/LO’... -
Page 22: Operating Instructions
Pyromaster H33BDVRRN/P © Lighting And Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- ally. -
Page 23: Trouble Shooting
Defective Valve. Turn To Pilot, Meter Should Read Greater Than 100mv. If Not, Replace. • Valve Is Turned On • Wall Switch Is Not Turned On. Watch For Grounded Wires! • Thermopile Needs A Min. 325mv. • Plugged Burner Orifice H33BDVRRN/P ©... -
Page 24: Fuel Conversion Instructions
Pyromaster H33BDVRRN/P © Fuel Conversion Instructions This unit is factory setup for use with natural gas. The conversion of this appliance from natural gas to propane gas must be carried out by an authorized service provider. LP Conversion Kit Components (Supplied with unit.) -
Page 25: Maintenance
Brass Trim Clean the brass trim pieces using a soft cloth lightly dampened with lemon oil. Do not use water or household cleaners on any brass components. Contact your local representative to arrange an annual service program. Pyromaster H33BDVRRN/P ©... -
Page 26: Replacement Parts
Pyromaster H33BDVRRN/P © CFM Harris Systems reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. H33BDVRRN/P Ref. Description Log Set (Complete) Log - Front Right Log - Rear Left... - Page 27 H33BDVRRN/P (continued) Ref. Description Pilot, Top Convertible SIT Pilot Orifice - SIT Top Convertible Nat. (not shown) Pilot Orifice - SIT Top Convertible Prop. (not shown) Pilot Hood, SIT Top Convertible Thermocouple, RN & RP Thermopile, RN & RP Pilot Tube w/fittings SIT...
-
Page 28: Optional Accessories
Pyromaster H33BDVRRN/P © Optional Accessories Available Fan Kits FK24 Fan Assembly This auxiliary fan system increases the efficiency of the circulation of the heated air. The FK24 fan kit allows variable speed control of the circulation fan and also incorporates a heat sensor in the circuit. -
Page 29: Wiring Instructions
3. Place the lower supports for the side refractory panels on the base of the firebox. Place each support so that the slotted hole fits over the forward screw head along the edge of the base. Pyromaster H33BDVRRN/P © Electrical Box CFM191a... -
Page 30: Decorative Bay Windows
Firebox Back Panel Fig. 46 Install rear refractory panel. Decorative Bay Windows A bay window kit is available for the H33BDVRRN/P. When fitting the Bay Window Kit the original window frame assembly must remain in place. The Bay Window kit is fitted over the existing front glass. -
Page 31: Bay Window Screen
Bay Window Screen A Bay Window Screen Kit is available for the H33BDVRRN/P. Do not remove existing window frame assembly! Remove all plastic from brass trims. 1. Let the fireplace cool down if it has been operating. 2. Remove existing top louvre from fireplace by lifting up and pulling out. - Page 32 LIMITED WARRANTY & EXTENDED LIFE TIME PROTECTION For Pyromaster BASIC WARRANTY: CFM Harris Systems (hereinafter referred to collectively as the "Company") warrants that your new Pyromaster Gas Appliance is free from manufacturing and material defects for a period of one year from date of installation, subject to the following conditions and limitations.
