INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
Electric
Fireplace
Model: DEF/DEFD26
Homeowner's Installation &
Operating Manual
Vermont Castings, Majestic Products
410 Admiral Blvd. • Mississauga • Ontario, Canada L5T 2N6 • Ph: 905-670-7777
www.majesticproducts.com • www.vermontcastings.com

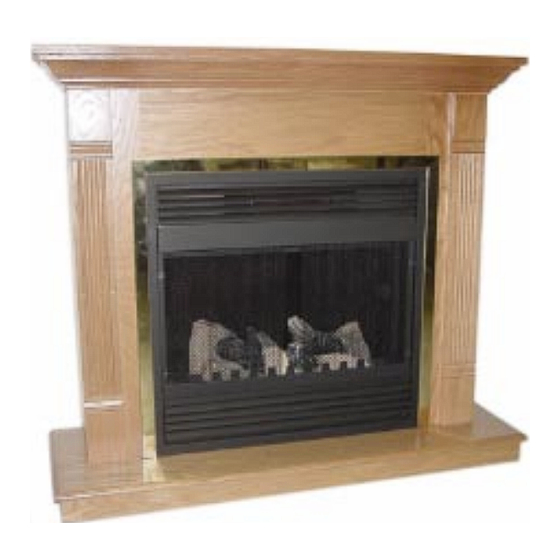

DEF26_photo
10005581 07/03 Rev.0
Advertisement
Table of Contents
Related Manuals for Vermont Castings DEF
Summary of Contents for Vermont Castings DEF
- Page 1 THIS OR ANY OTHER APPLIANCE. INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER Electric Fireplace Model: DEF/DEFD26 Homeowner’s Installation & Operating Manual Vermont Castings, Majestic Products 410 Admiral Blvd. • Mississauga • Ontario, Canada L5T 2N6 • Ph: 905-670-7777 www.majesticproducts.com •...
-
Page 2: Table Of Contents
Vermont Castings, Majestic Products DEF/ DEFD26 Thank you, and Congratulations on your purchase of a Vermont Castings, Majestic Products Fireplace. Please read the Installation & Operating Instructions before using this appliance. IMPORTANT: Read all instructions and warnings carefully prior to commencing installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and/or injury and will void the warranty. -
Page 3: Installation Instructions
General 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3' (1 m) from the front of this appliance. -
Page 4: Optional Cabinet Dimensions
Vermont Castings, Majestic Products DEF/ DEFD26 Face Pillar Reference 1. Refer to the installation instructions on Page 3 in this owner's manual for electrical hookup and SAFETY RULES. 2. Place the cabinet base into position, back edges of the cabinet base flush against the wall. -
Page 5: Fireplace Dimensions
Reference Rough Opening Depth (ROD) Rough Opening Width (ROW) Rough Opening Height (ROH) 10005581 Vermont Castings, Majestic Products DEF/ DEFD26 Fireplace Dimensions Framing & Finishing 5581 HEF26 specs All Models " (664 mm) " (657 mm) " (445 mm) " (615 mm) 10"... -
Page 6: Screen Information
Vermont Castings, Majestic Products DEF/ DEFD26 Screen Information 1. Under no circumstances is this product to be operated if the screen door(s) are missing. 2. Do not strike or slam the screen doors. 3. This product uses screen doors. Replacement screen doors are available from the manufacturer. -
Page 7: Replacing The Light Bulbs
WARNING: Make sure the power is turned OFF before proceeding. 10005581 Vermont Castings, Majestic Products DEF/ DEFD26 Trim Kit Installation 1. Peel all plastic from the Trim Kit Assembly. 2. Press the Trim Kit Assembly onto the front of the fireplace. -
Page 8: Electrical Wiring Diagram With Integral Remote Control
Vermont Castings, Majestic Products DEF/ DEFD26 Electrical Wiring Diagram with Integral Remote Control Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and local codes. BLACK BLACK FLAME FLAME... -
Page 9: Operating Instructions
3. Flame Speed Control Turn the flame speed control knob to increase or decrease the flame speed as desired. 10005581 Vermont Castings, Majestic Products DEF/ DEFD26 Operating Instructions This model fireplace with integral remote control has a preprogrammed, matched-pair Receiver/Transmitter already set with randomly-selected house codes. -
Page 10: Replacement Parts List
Vermont Castings, Majestic Products DEF/ DEFD26 Item # Part Description Log Set Complete Fan/Heater Flame Generator Motor, 120 Volt AC w/Terminal Cord Power 16/3 HPN w/Terminals ON/OFF Switch Heater Control (Thermostat) Heater Control Knob Breaker Circuit Manual Reset Flame Generator Assembly... -
Page 11: Warranty
For Vermont Castings, Majestic Products Electric Fireplace Models BASIC WARRANTY: Vermont Castings, Majestic Products (hereinafter referred to collectively as the "Company") warrants that your new Vermont Castings, Majestic Products fireplace is free from manufacturing and material defects for a period of one (1) year from date of installation, subject to the following conditions and limitations: 1.
