Vermont Castings Cast Louvre Kit EWF36CLK Installation Instructions

Cast Louvre Kit

Installation Instructions

Model: EWF36CLK
Please read these instructions before beginning the
installation.

General Information

Install the louvre kit after all other fireplace installation
work has been completed, thoroughly checked and
tested for proper operation and installation require-
ments.
Check Contents of Shipping Carton

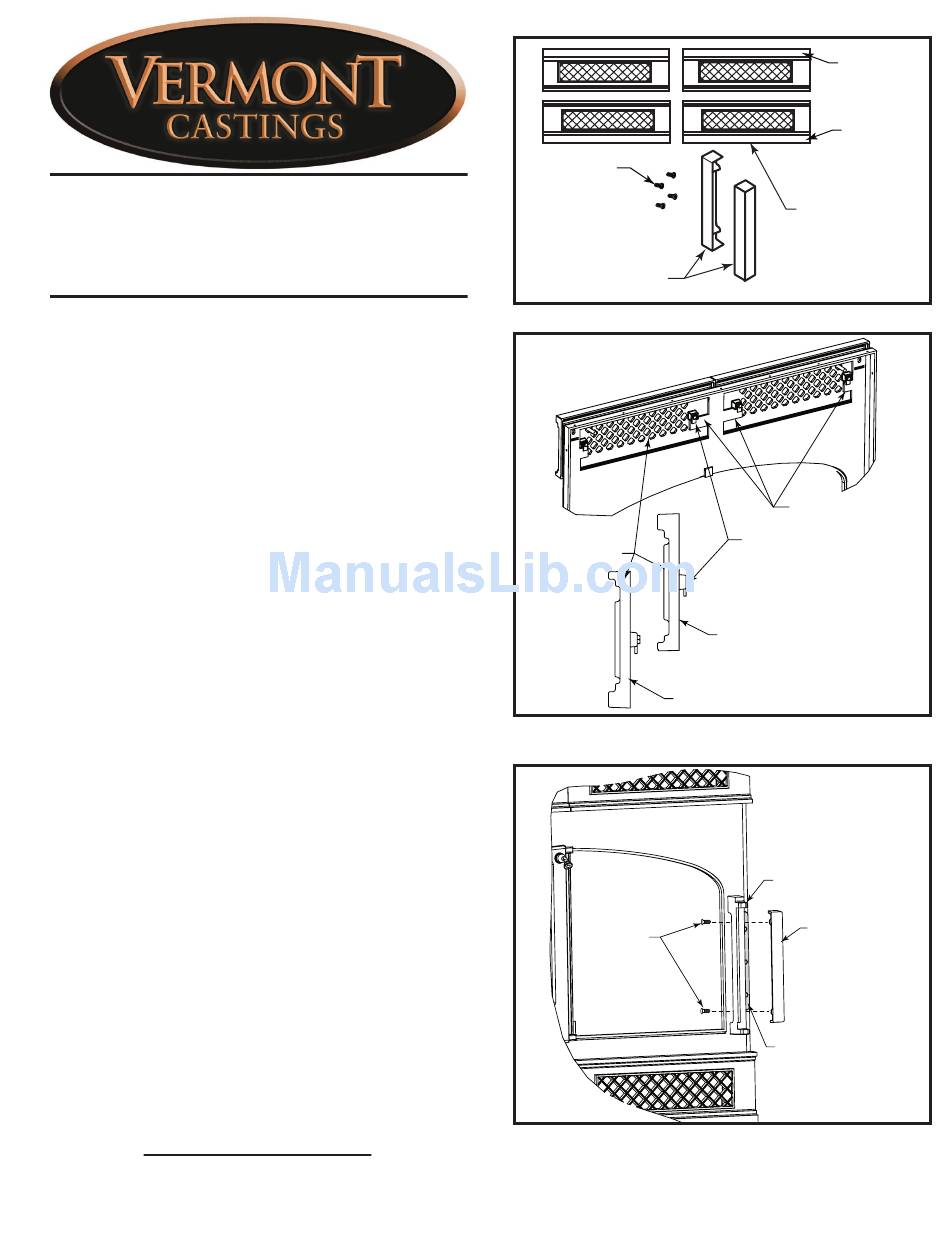

Compare contents shown in Figure 1 with actual parts
received. If any parts are missing or damaged, contact
your local dealer before starting installation.
Louvre Kit Parts:
Basic universal (4)
Hinge Cover (2)
1/4 - 20 x 1/2" phillips round head screw (4)
Instruction sheet
Tools required: phillips screwdriver, needlenose pliers
Install Basic Universal
1. Insert each basic universal into openings in fire-
place. Be sure the damper tabs have engaged plate
sheet steel flanges in openings. NOTE: The damper
tabs always point down. (Fig. 2)
2. Before inserting upper right panel, push the damper
handle in flush with face. Once the panel is in place,
use needlenose pliers to pull damper handle out
through lattice in panel.
3. Adjust the panels for a symmetric appearance.
Install Hinge Covers
1. Align hinge cover on outside of hinge with holes
located in the hinge. (Fig. 3)
2. Attach hinge cover using screws provided.
MHSC
149 Cleveland Drive • Paris, Kentucky 40361
www.mhsc.com
20006024
20005994
1/4 - 20 x 1/2"
Phillips Round
Head Screws
(4)
Hinge Cover (2)
Fig. 1 Carton contents.
CAR153
EWF36CLK
Rear View
Cast Lattice
Kit
6/3/03 djt
Basic Universal
Side View
Lower Panel Orientation
Fig. 2 Place basic universal, making sure the damper tabs
engage plate steel metal flanges of fireplace.
KT400
Lattice
view from behind
5/03
Screws
Fig. 3 Install hinge cover.
KT401
Hinge install
6/3/03 djt
Thicker side
toward the
top for top
installation
Thicker
side toward
the bottom
for bottom
installation
Basic Universal
(4)
CAR153
Metal Flanges
Damper Tab
(Always point down)
Upper Panel Orientation
KT400
Hinge
Hinge Cover
Hinge cover
will cover this
area.
KT401
20006092 8/08 Rev. 4
