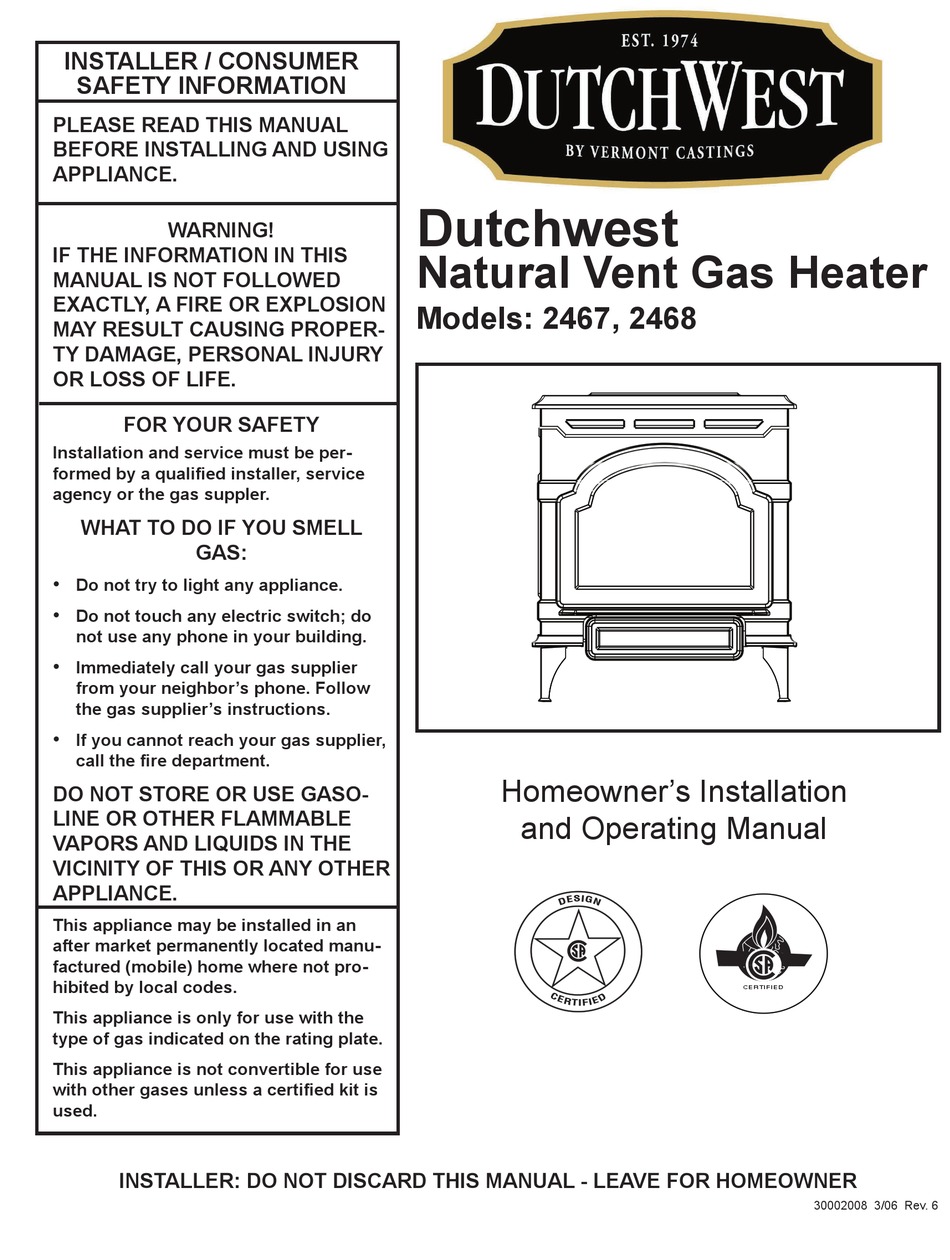

INSTALLER / CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPER-
TY DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.
FOR YOUR SAFETY
Installation and service must be per-
formed by a qualified installer, service
agency or the gas suppler.
WHAT TO DO IF YOU SMELL
GAS:
Do not try to light any appliance.
Do not touch any electric switch; do
not use any phone in your building.
Immediately call your gas supplier
from your neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
DO NOT STORE OR USE GASO-
LINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER
APPLIANCE.
This appliance may be installed in an
after market permanently located manu-
factured (mobile) home where not pro-
hibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit is
used.
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
Dutchwest
Natural Vent Gas Heater
Models: 2467, 2468
Homeowner's Installation
and Operating Manual
2008
Dutchwest
gas stove
cover
6/03
C E R T I F I E D
30002008 3/06 Rev. 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dutchwest 2467 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vermont Castings Dutchwest 2467

  • Page 1 This appliance is not convertible for use with other gases unless a certified kit is used. INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER Dutchwest Natural Vent Gas Heater Models: 2467, 2468 Homeowner’s Installation 2008 Dutchwest and Operating Manual gas stove...
  • Page 2: Table Of Contents

    Dutchwest Natural Vent Gas Heater PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Dutchwest stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
  • Page 3: Installation & Operating Instructions

    Installation & Operating Instructions The Dutchwest Natural Vent Room Heater, Model Nos. 2467 and 2468, is a vented gas appliance listed to the ANSI standard Z21.88b-2001 and CSA-2.33b-2001 for Vented Room Heaters, and CSA 2.17-M91, Gas-Fired Appliances For Use at High Al- titudes.
  • Page 4: Stove Dimensions

    Dutchwest Natural Vent Gas Heater Dutchwest Natural Vent Gas Heater Dimensions See Page 5 for Flue Collar Centerline Dimensions. 12���" (318 mm) 17" (419 mm) Fig. 1 Dutchwest dimensions. (622 mm) 28���" (721 mm) C L Valve 4���" Inlet (111 mm) (584 mm) 2008 Dutchwest...
  • Page 5: Clearance Requirements

    Clearance Requirements Minimum Clearances to Combustible Materials Measure side clearances as shown in Figures 2 through 5 from the outer edge of the cast iron stove top. Measure rear clearances from the outermost surface of the sheet metal rear skirt. The Dutchwest heater is approved for installation into an alcove constructed of combustible materials to the dimensions and clearances shown in Figure 5.
  • Page 6: Operation

    Dutchwest Natural Vent Gas Heater Gas Specifications Model Fuel Gas Control 2467 Millivolt 2468 Prop Millivolt Weight: Fully assembled 350 lbs. Gas Inlet and Manifold Pressures Natural Inlet Minimum 5.5” w.c. Inlet Maximum 14” w.c. Manifold Pressure 3.5” w.c. Dutchwest Natural Vent Certified to:...
  • Page 7: Passing Through A Combustible Wall Or Ceiling

    Passing Through a Combustible Wall or Ceiling An approved pass-through device is always required when a vent passes through a combustible wall or ceil- ing. Check with the maker of the vent system for the correct listed devices that are available. A listed pass- through device is required whether or not the installa- tion includes decorative pipe around the Type B venting system.
  • Page 8: Install The Optional Fan

    Dutchwest Natural Vent Gas Heater Install the Optional Fan 1. The fan kit includes a blower assembly and a rheo- stat assembly, connected by a cable. The blower as- sembly mounts to the bottom rear of the stove, and the rheostat mounts to the left side of the valve. The assembly includes a ‘snapstat’...
  • Page 9: Venting System Assembly

    Left Air Duct Fig. 12 Install the snapstat and connect the extension wire terminals. View is with top removed, however, access is available through the rear when installing fan before gas line connection. 9. After sliding the firebox in place, the rheostat control switch attaches to the left side of the valve bracket at the front of the stove.
  • Page 10: Connect The Gas Supply Line

    Dutchwest Natural Vent Gas Heater Attach the first section of venting to the B-vent adapter. Depending on the length of the individual venting sections and the lengths of the decorative pipe, you may need to slip the decorative pipe over the venting sections before attaching upper sections to lower ones.
  • Page 11: Burner Information

    Burner Information The appliance must only use the gas specified on the rating plate, unless converted using a CFM Corporation Fuel Conversion Kit. Refer to Page 23 for the correct Fuel Conversion Kit for your model. Conversion instructions are provided with each kit and beginning on Page 16 in this manual.
  • Page 12: Install Stove Front

    Dutchwest Natural Vent Gas Heater Rear Log Decorative Grate Fig. 21 Install the back, left and right logs. LG141 Stardance Install logs 1 12/11/00 djt Lava Rock Fig. 21 Completed log installation. LG142 Stardance Install logs 2 12/11/00 djt Left Log Insert the handle stub into the hole in the front casting.
  • Page 13: Maintenance

    Your First Fire Read these instructions carefully and familiarize your- self with the burner controls. Locate the pilot assembly, Figure 25. Follow the lighting instructions on Page 14 exactly. During the first fire, it is not unusual to smell some odor associated with new logs, paint and metal being heated.
  • Page 14: Lighting And Operating Instructions

    Dutchwest Natural Vent Gas Heater Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- ally.
  • Page 15: Troubleshooting

    Troubleshooting / Honeywell #8420 Gas Control System NOTE: Before troubleshooting the gas control system, be sure the external gas shutoff is in the “ON” position. WARNING: REMOVE THE GLASS PANEL BEFORE PERFORMING ANY GAS CONTROL SERVICE WORK. SYMPTOM POSSIBLE CAUSES A.
  • Page 16: Operation

    Dutchwest Natural Vent Gas Heater Fuel Conversion Instructions WARNING! This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instruc- tions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss...
  • Page 17 • Remove pilot orifice with allen wrench. (Fig. 32) • Install the conversion orifice. • Reinstall pilot hood. Be sure to align hood with index tab. Pilot Hood Pilot Bracket Fig. 31 Remove pilot hood. Index Tab CO105a gas conversion Pilot Snap Ring 1/28/00 djt...
  • Page 18 Dutchwest Natural Vent Gas Heater Kit # Front 000-5021 #54 / .055” 20000130 #44 / .086” 30000334 Kit # Front 000-5022 #69 / .029” 30000513 #54 / .055” 20000130 Table 2. Injector Orifice Size Matrix Conversion to Natural Gas Part # Rear Part # Conversion to LP...
  • Page 19: Maintenance

    Your Dutchwest Gas Heater will provide years of service with minimal upkeep. The following procedures will help ensure that your stove continues to function properly. Annual System Inspection Have the entire heater and venting system inspected annually by a qualified gas technician. Replace any worn or broken parts.
  • Page 20: Operation

    Dutchwest Natural Vent Gas Heater Fig. 37 Release the latches to release the glass frame. Gasket Replacement The Dutchwest Gas Heater uses a ‘tadpole’ type gasket to seal between the glass panel and the frame. In time, this gasket can become brittle and compressed and should be replaced.
  • Page 21: Wiring Diagrams

    Wiring Diagrams On/Off Switch Wiring TP/TH Black Thermostat (Optional) Optional Thermostat Millivolt Gas Valve Wiring St124b on/off/switch wiring 1/11/00 djt TP/TH Black Fig. 40 On/off switch and optional thermostat circuit. NOTE: IF ANY OF THE ORIGINAL WIRE, AS SUP- PLIED WITH THE APPLIANCE, MUST BE RE- St124c PLACED, IT MUST BE REPLACED WITH TYPE Thermostat...
  • Page 22: Replacement Parts

    Dutchwest Natural Vent Gas Heater CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Dutchwest Natural Vent Gas Heater Models 2467, 2468 Ref. Description SDV30 Log Set Assembly...
  • Page 23 Bracket - Right Log Bracket - Left Log Gasket Base Pan Inner Interrupter block Draft Hood/Flue Collector Assembly Fuel Conversion Kits Conversion Kit, NG to LP - 2467 Conversion Kit, LP to NG - 2468 30002008 (continued) Kit #000-5022 Kit #000-5021...
  • Page 24: Optional Accessories

    Dutchwest Natural Vent Gas Heater Optional Accessories Available Fan Kits FK26 Fan The FK26 fan kit helps distribute heated air from within the firebox out into the room.. The fan is controlled by a snapstat that turns power on and off as the firebox tem- perature rises above and falls below a preset tempera- ture.
  • Page 25 Dutchwest Natural Vent Gas Heater 30002008...
  • Page 26 Dutchwest Natural Vent Gas Heater 30002008...
  • Page 27: Warranty

    PRODUCT COVERED BY THIS WARRANTY All Dutchwest gas stoves equipped with an Insta-Flame Ceramic Burner. BASIC WARRANTY CFM Corporation Company (hereinafter referred to collectively as the Company) warrants that your new Dutchwest Gas Fireplace/Stove is free from manufacturing and material defects for a period of one year from the date of purchase, subject to the following conditions and limitations.
  • Page 28: Efficiency Ratings

    Efficiency Ratings Model EnerGuide Ratings Fireplace Efficiency (%) 2467 2468 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com 51.4 51.4...
