Installation Instructions and Homeowner's Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
C
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
US
CFM Specialty Home Products
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com

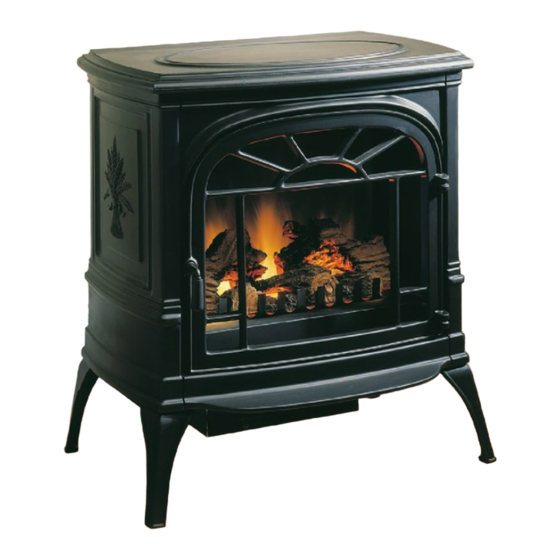

ADDISON
Freestanding
Electric Stove
Models:
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
ACSB
ACSG
ACSM
10004324 3/04 Rev. 3
Advertisement
Table of Contents
Related Manuals for Vermont Castings ACSB
Summary of Contents for Vermont Castings ACSB
-
Page 1: For Your Safety
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER ADDISON Freestanding Electric Stove Models: FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. www.majesticproducts.com • www.vermontcastings.com ACSB ACSG ACSM 10004324 3/04 Rev. 3... -
Page 2: Table Of Contents
Addison Electric Stove PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS Thank you and congratulations on your purchase of a Vermont Castings electric stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. Installation Instructions General ... -
Page 3: Installation Instructions
1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3’... -
Page 4: Stove Dimensions
Addison Electric Stove Fig. 1 Addison dimensions. Stove Dimensions Width of Stove Top 565mm Width at Legs 600mm Depth at Legs 390mm Depth at Apron 430mm Depth at Stove Top 400mm Total Height 635mm 4324 22 ” 23 ” 15 ” 17”... -
Page 5: Clearance To Combustibles
Clearance to Combustibles Back ... 0” (0mm) Sides ... 0” (0mm) Floor ... 0” (0mm) Top ... 12” (305mm) Hearth A hearth is not mandatory but it is recommended for aesthetic purposes. We recommend a noncombustible hearth which does not obstruct heater openings. Electrical Specifications Voltage ... -
Page 6: Service Instructions
Addison Electric Stove WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electrical shock or personal injury Firebox Removal 1. Unplug the electrical supply to the unit. 2. Let the stove cool if it has been operating. 3. -
Page 7: Electrical Wiring Diagram
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electricial component or wiring, the original wire routing, color coding and securing locations must be followed. SWITCH ON/OFF 1 BLACK MOTOR... - Page 8 CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Addison Freestanding Electric Stove Models ACSB (2905), ACSG (2906), ACSM (2907) Ref. Description Log Set Complete...
-
Page 9: Replacement Parts
(Fig. 5) 9. Reinstall firebox into casting, by reversing steps 1 through 6. Shell Enamel Part Numbers - Addison ACSB, ACSG, ACSM Color Classic 30000624... - Page 10 CFM Specialty Home Products 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com...
