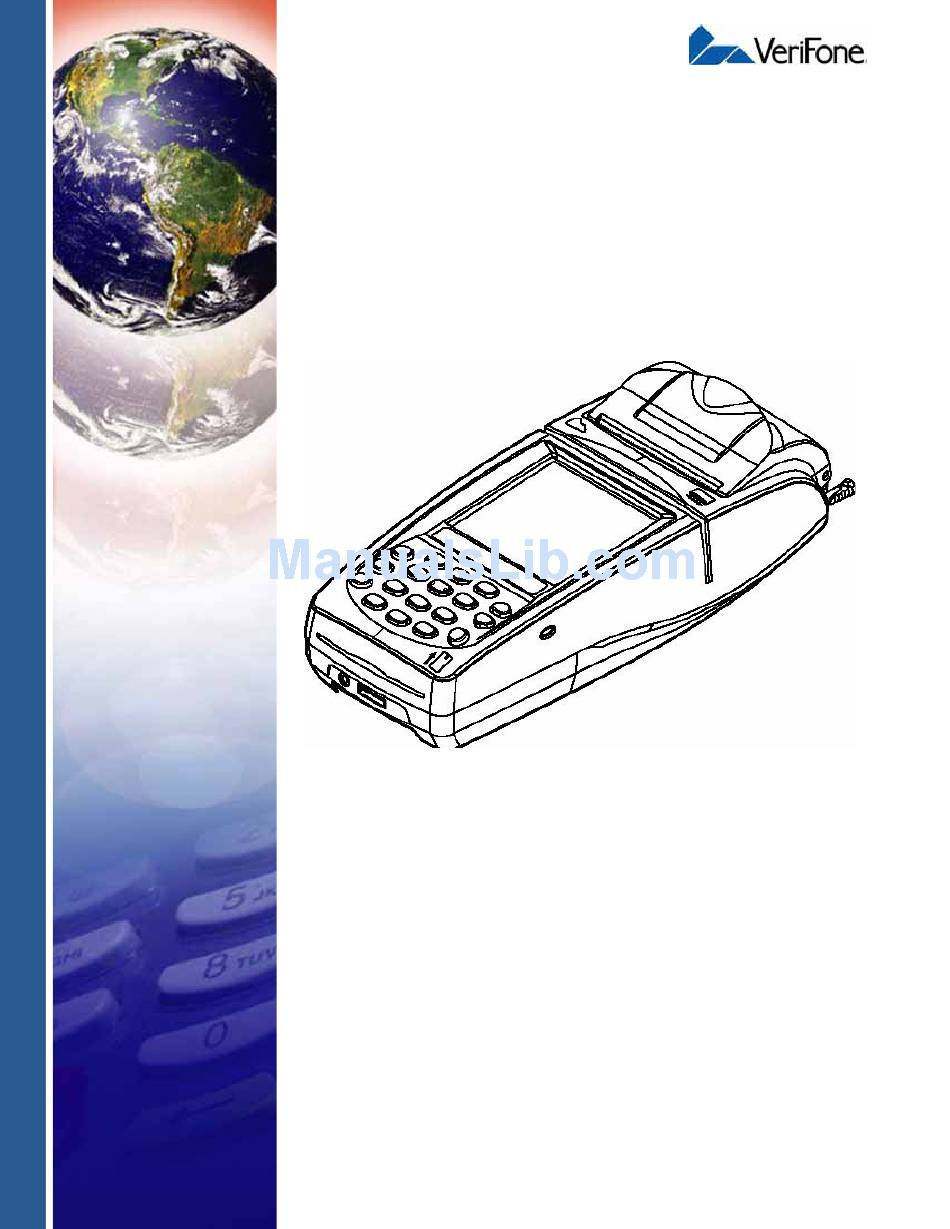

Page 1: Installation Guide
NURIT 8000 Installation Guide VeriFone Part Number DOC113EN06-A, Revision A... - Page 2 VeriFone, Inc. The information contained in this document is subject to change without notice. Although VeriFone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose.
-
Page 3: Table Of Contents
NURIT 8000 Features ........ - Page 4 Troubleshooting NURIT 8000 Appears to Have No Power ......34 Guidelines Transactions Cannot be Completed Successfully .
-
Page 5: Preface
Use this guide as the primary source of information for setting up and installing the NURIT 8000. Audience This guide provides a simple description of the NURIT 8000’s features as well as basic information for the device’s installation and configuration. Organization... -
Page 6: Acronym Definitions
VeriFone Part Number Wireless Fidelity Example The unit is not waterproof or dustproof, and is intended for indoor use only. Due to risk of shock do not use the terminal near water. Table 2 presents NURIT 8000 I NSTALLATION UIDE... -
Page 7: Hapter
Overview This chapter provides a brief description of the NURIT 8000. NURIT 8000 The NURIT 8000 Wirless Palmtop Terminal is one of the most advanced, versatile, secure, and convenient POS terminals manufactured today. Figure 1 Features at a The following is a list of features of the NURIT 8000:... - Page 8 VERVIEW Features at a Glance Table 3 Feature Thermal Printer Terminal Interface Connector Radio Power Operating System Accessories NURIT 8000 Features Description • Integrated printer uses thermal paper • Easy-load mechanism • Barrel power ( POWER • Data connector •...
-
Page 9: Hapter
Use the following guidelines to select a location for the NURIT 8000. Location Ease of Use • When not operated from its hand-held position, place the NURIT 8000 on a flat table or countertop close to the power outlet and any peripherals. •... -
Page 10: Electrical Considerations
ETUP Selecting Location • Indoor Use The NURIT 8000 is designed to be operated indoors in the following manner: • • • Outdoor Use The NURIT 8000 is designed to be operated outdoors in the following manner: • • CAUTION Under no circumstances should the NURIT 8000 be powered or charged outdoors using its AC/DC adapter. -
Page 11: Unpacking Shipping Carton
WARNING Due to risk of shock or damage, do not use the NURIT 8000 near water, including a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. -
Page 12: Examining Nurit 8000 Features
Remove the clear protective film from the LCD screen. Save the shipping carton and packing material for future repacking or moving of the device. PAPER COVER LCD SCREEN KEYPAD NURIT 8000 Terminal Features (Front Panel) COMPLIANCE LABEL BATTERY/CARD COMPARTMENT COVER DATA CONNECTOR NURIT 8000 Terminal Features (Bottom Panel) -
Page 13: Terminal Front Panel
Battery. For directions on installing and removing the SIM, SAM, and SD cards, see Connecting VeriFone ships variants of the NURIT 8000 terminal for different markets. Your NOTE terminal may have a different configuration. The following devices may or may not be present: a smart card reader, up to four MSAM cardholders, or a battery pack. -
Page 14: Opening And Closing Battery/Card Compartment Cover
Figure 4 Disconnect the AC/DC power adapter from the electrical power outlet. Carefully place the NURIT 8000 face down on a soft, smooth surface, so as not to damage the LCD screen. Secure the unit with one hand. With your other hand, release the battery /card compartment cover by pressing and lifting its locking tab. -
Page 15: Installing Sim, Sam, And Sd Cards
Installing SIM, Configuration of SIM, SAM, and SD cards are model dependent. You can install SAM, and SD one SIM card, up to two SAM cards, and an SD card in the NURIT 8000 terminal, Cards depending on the particular model. - Page 16 Lower the SD/MMC card into position. Figure Figure To install a SIM or a SAM card To install a SIM or a SAM Figure Figure NURIT 8000 I NSTALLATION UIDE LOCK...
- Page 17 Remove the SD/MMC card. Figure 8 If necessary, replace the battery. See Replace the battery/card compartment cover. See Inserting the SD/MMC Card Figure Figure Removing the SD/MMC Card Figure Figure Figure Figure NURIT 8000 I NSTALLATION UIDE...
-
Page 18: Connecting The Battery
For information on removing and replacing the battery/card compartment cover, see Opening and Closing Battery/Card Compartment Connecting and The NURIT 8000 allows you to operate the terminal without an external power Removing the supply, by using a battery. Battery... -
Page 19: Battery Maintenance
Do not break open, or separate the battery. WARNING Do not dispose of the NURIT 8000 Lithium-polymer smart battery in a fire. LIthium-polymer batteries must be recycled or disposed of properly. Do not dispose of Lithium-polymer batteries in municipal waste sites. -
Page 20: Battery Charge Status
The battery is charging (80% or more charged) the battery is fully charged or the charger is disconnected from the power outlet. ) and buttons, simultaneously. Hold down the button until the ON/OFF button, on ON/OFF NURIT 8000 I NSTALLATION UIDE... -
Page 21: Using The Printer
ETUP Using the Printer Using the Printer An integrated thermal printer is built into the NURIT 8000. Before you can process transactions in the NURIT 8000 that require a receipt or record, you must install paper in the printer. Loading Paper into Before using the printer, load a roll of paper into the printer. -
Page 22: Removing The Paper Roll From The Printer
Pull the opening latch up until the cover unlocks. Lift the paper compartment cover until it is fully open (see Lift the paper roll out of the paper compartment. Removing the Paper Roll Figure 11). NURIT 8000 I NSTALLATION UIDE... -
Page 23: Power Supply
ETUP Power Supply Power Supply The NURIT 8000 gives you the option of running the unit on battery power, or through a power adapter. The power adapter both gives power, as well as recharges the battery. For information on using the battery, see Before connecting a power supply, disconnect the power cord from the power outlet. -
Page 24: Car Adapter Connection
The car adapter is an optional accessory. You can use the car adapter to provide Connection power to the NURIT 8000 and to charge the installed Lithium-polymer battery. For information on ordering a car adapter for the NURIT 8000 terminal, see Accessories and To connect the car... -
Page 25: Connecting Cables
Turn off the POS terminal, and any peripheral devices whenever you connect or • disconnect the NURIT 8000. Do not disconnect the NURIT 8000 from an external device when it is processing data. • Peripheral devices may require special adapter cables for their connection to the •... -
Page 26: External Modem Connection
Figure 19 To disconnect the external modem CAUTION Do not disconnect the NURIT 8000 from an external device when it is processing data. Turn off the external device to which the base unit is connected and/or the NURIT 8000 terminal. -
Page 27: Using The Magnetic Stripe Card Reader
ETUP Using the Magnetic Stripe Card Reader Using the The magnetic stripe card reader is located at the top end of the NURIT 8000 Magnetic Stripe terminal. Use the magnetic stripe card reader with a magnetic stripe card. Card Reader... -
Page 28: Using The Smart Card Reader
Using the Smart Card Reader Using the Smart The EMV-compatible smart card reader is located at the bottom end of the NURIT Card Reader 8000 terminal. Use the smart card reader with a smart card. To use the smart card reader Figure 21... -
Page 29: Hapter
Performance recognizes its responsibility to minimize the environmental impacts of its Specifications operations and products. For more information on the NURIT 8000 terminal certification and regulatory details, refer to the NURIT 8000 Certifications and Regulations (VPN DOC113EN05-A). This device is not intended for outdoor use and is certified for indoor use only. -
Page 30: User Interactions And Responsibilities
Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. Improper battery use may result in a fire, explosion or other hazard. F to +140 NURIT 8000 I NSTALLATION UIDE... -
Page 31: Hapter
Opening the terminal will void any warranty and security certification. It may also result in irreversible damage to the unit’s electronic circuitry. In order to maintain the NURIT 8000 in proper working condition: • Keep the terminal dry and in the cleanest possible working and storage environment. - Page 32 To clean the PIN pad, use a soft, damp, lint-free cloth slightly dampened with water and a drop or two of mild soap. For stubborn stains, use alcohol or an alcohol-based cleaner. For best results, use a VeriFone Cleaning Kit. See Accessories and Documentation..
-
Page 33: Hapter
VeriFone representative for assistance. Typical examples of malfunction you may encounter while operating your NURIT 8000 device and steps you can take to resolve them are listed. The NURIT 8000 comes equipped with tamper-evident labels. The device NOTE contains no user serviceable parts. -
Page 34: Troubleshooting Nurit 8000 Appears To Have No Power
Connecting the Battery. If possible, try to operate the NURIT 8000 with a different VeriFone supplied AC/DC power adapter. Connect the NURIT 8000 to a different AC power outlet. If the problem persists, contact your VeriFone distributor or service provider. -
Page 35: Operation With Peripheral Device Not Successful
Try to verify whether the peripheral device is functioning properly. Successful • Replace the cable or the adapter cable being used with the peripheral device. • If the problem persists, contact your VeriFone distributor or service provider. Printer Does Not If the printer does not work properly: Print •... -
Page 36: The Keypad Does Not Respond
Inoperable Refer to user documentation for the particular application in use. If the problem persists, contact your VeriFone distributor or service provider. Refer to user documentation for the particular application in use. If the problem persists, contact your VeriFone distributor or service provider. -
Page 37: Hapter
Before returning the NURIT 8000 to VeriFone, you must obtain a Merchandise Return Authorization (MRA) number. The following procedure describes how to return one or more NURIT 8000 for repair or replacement (U.S. customers only). NOTE International customers, please contact your local VeriFone representative for assistance with your service, return, or replacement. -
Page 38: Accessories And Documentation
ERVICE AND UPPORT Accessories and Documentation NOTE One MRA number must be issued for each NURIT 8000 you return to VeriFone, even if you are returning several of the same model. Figure 22 Accessories and VeriFone produces accessories and documentation for the NURIT 8000. When Documentation ordering, please refer to the part number in the left column. -
Page 39: Power Supply
80EM-XX-MXX-GRY VeriFone Cleaning 02746-01 Documentation To learn more about NURIT 8000, refer to the following set of documents: NURIT 8000 Quick Installation Guide NURIT 8000 Certifications and Regulations Sheet NURIT 8000 Rechargeable Battery Quick Installation Guide NURIT 8000 Car Adapter Quick Installation Guide... - Page 40 ERVICE AND UPPORT Accessories and Documentation NURIT 8000 I NSTALLATION UIDE...
-
Page 41: Index
SAM card SD/MMC card SIM card terminal location unpack the shipping carton keypad troubleshooting loading paper magnetic stripe card reader troubleshooting using maintenance NURIT 8000 I NDEX NSTALLATION UIDE... - Page 42 SAM card SIM card repair replacement returning a unit NURIT 8000 I NSTALLATION UIDE repair replacement returning a unit service 37 SAM card installing removing SD/MMC card removing SD/MMC card installing service...
- Page 43 NDEX NURIT 8000 I NSTALLATION UIDE...
-
Page 44: Nurit 8000 I Nstallation G Uide
VeriFone, Inc. 2099 Gateway Place, Suite 600 San Jose, CA, 95110 USA Tel: (800) VeriFone (837-4366) www.verifone.com NURIT 8000 Installation Guide VeriFone Part Number DOC113EN06-A, Revision A...
