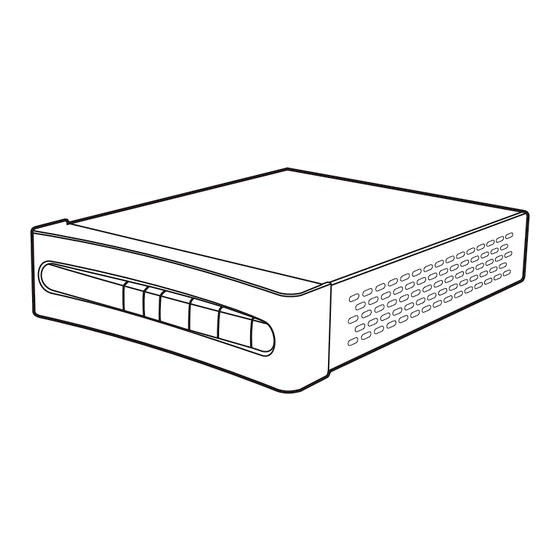

STB7766G
ATSC Converter Box
Instruction Manual
Need More Help?
DO NOT RETURN THIS PRODUCT TO THE STORE
Please visit online help at
http//www.venturer.com
- 20 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STB7766G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Venturer STB7766G

  • Page 1 STB7766G ATSC Converter Box Instruction Manual Need More Help? DO NOT RETURN THIS PRODUCT TO THE STORE Please visit online help at http//www.venturer.com - 20 -...
  • Page 2: Ac Adapter

    SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT. STB7766G Equipment tested for compliance as a complete unit This device complies with Part 15 of the FCC Rules.
  • Page 3: Aaa Batteries (For Remote Control)

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 4: Table Of Contents

    AC Adapter ... x 1 Remote Control ... x 1 AAA Batteries (for Remote Control) ... x 2 RF Cable ... x 1 Safety Precautions ... 1 Important Safety Instructions ... 2 Accessories ... 3 Contents ... 3 Remote Control ... 4 Quick Start Guide ...
  • Page 5: Remote Control

    • Point the remote control at the REMOTE SENSOR located on the unit. • When there is a strong ambient light source, the perform ance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). To Install Batteries 1.
  • Page 6: Quick Start Guide

    QUICK START GUIDE STEP 1: CONNECTIONS Option One: Using the RF Cable to Connect a TV 1. Connect an antenna cable to the RF IN terminal on the rear of the unit. 2. Use the RF cable (included) to connect the unit and TV/Monitor. 3.
  • Page 7: Turning On The Unit

    QUICK START GUIDE STEP 2: TURNING ON THE UNIT 1. While the AC adapter is connected and the unit is on standby, power will be consumed and the power indicator is RED. 2. Press the STANDBY/ON button to turn on the unit. The power indicator is GREEN. STEP 3: SETTING THE OSD LANGUAGE 1.
  • Page 8: Control Reference Guide

    CONTROL REFERENCE GUIDE Remote Control MUTE Button Press to turn off the sound. MENU Button Press to display the on-screen menu or switch back to the previous menu screen. CURSOR ( , , , ) Buttons Use to highlight selections on a menu screen and adjust certain settings.
  • Page 9: Front View

    CONTROL REFERENCE GUIDE Front View Back View Remote Sensor Receives infrared signals from the remote control. CH-/CH+ Buttons Press to select the channel upward or downward. Button Turns the power on or restores the unit to the standby mode. STANDBY/ON Indicator Green: power on Red: standby mode ANTENNA RF IN Terminal...
  • Page 10: Connections

    Connecting a TV (Using the RF Cable) 1. Connect an antenna cable to the RF IN terminal on the rear of the unit. 2. Use the RF cable (included) to connect the unit and TV/Monitor as shown. 3. Turn on your TV and switch TV’s channel selection to Channel 4. Note: •...
  • Page 11: Power Supply

    Using the AC Adapter The supplied 9V adapter operates on AC 120V ~ 60Hz. While the AC adapter is connected and the unit is on standby, power will be consumed and the power indicator is RED. Cautions: • The AC adapter included with this unit is for its use only. Do not use it with other equipment. •...
  • Page 12: Basic Operation

    Searching for Channels Automatically 1. Press the MENU button on the remote control. 2. Use the buttons to select the CHANNEL menu. 3. Use the button to select Channel Scan and press the ENTER button or the button to start scanning. Notes: •...
  • Page 13: On-Screen Menu-Channel

    ON-SCREEN MENU - CHANNEL Use the menu confi guration to set detailed options for each function. Press the MENU button on the remote control to open the menu screen. • To return to the previous menu press the MENU button on the remote control. •...
  • Page 14: Output Channel

    ON-SCREEN MENU - CHANNEL Output Channel You can select NTSC RF output channel. 1. Press the MENU button on the remote control. 2. Use the buttons to select the CHANNEL menu. 3. Use the button to select Output Channel then press the ENTER button or the button.
  • Page 15: Language

    ON-SCREEN MENU - OPTION Language 1. Press the MENU button on the remote control. 2. Use the buttons to select the OPTION menu. 3. Use the button to select Language then press the ENTER button or the button. 4. Use the buttons to select English / Español (Spanish) / Français (French).
  • Page 16: Dcc View

    ON-SCREEN MENU - OPTION DCC View Use this to set the character font. Only DCC (Digital Closed Caption) is set to Custom, DCC View is activated. 1. Press the MENU button on the remote control. 2. Use the buttons to select the OPTION menu. 3.
  • Page 17: Set Password

    ON-SCREEN MENU - LOCK Set Password 1. Press the MENU button on the remote control. 2. Use the buttons to select the LOCK menu. 3. Use the buttons to select Set Password then press the ENTER button or the 4. Enter values (4 digit) for new password and again to confi rm password.
  • Page 18: Movie Rating

    ON-SCREEN MENU - LOCK The lock levels are equivalent to the following ratings. TV-Y: All children. TV-Y7: Children 7 years and older. TV-G: General Audience. Movie Rating 1. Press the MENU button on the remote control. 2. Use the buttons to select the LOCK menu. 3.
  • Page 19: Maintenance

    Cleaning the Unit • Be sure to turn the unit off and disconnect the AC adapter before maintaining the unit. • Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has been dipped in a weak soap-and-water solution and wrung out thoroughly.
  • Page 20: Limited Warranty

    YOUR UNIT TO VENTURER WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by Venturer at its designated Service Center for 1 year from the effective warranty date. Such replacement parts or products are warranted for an additional 1 year from the date of repair or replacement.
