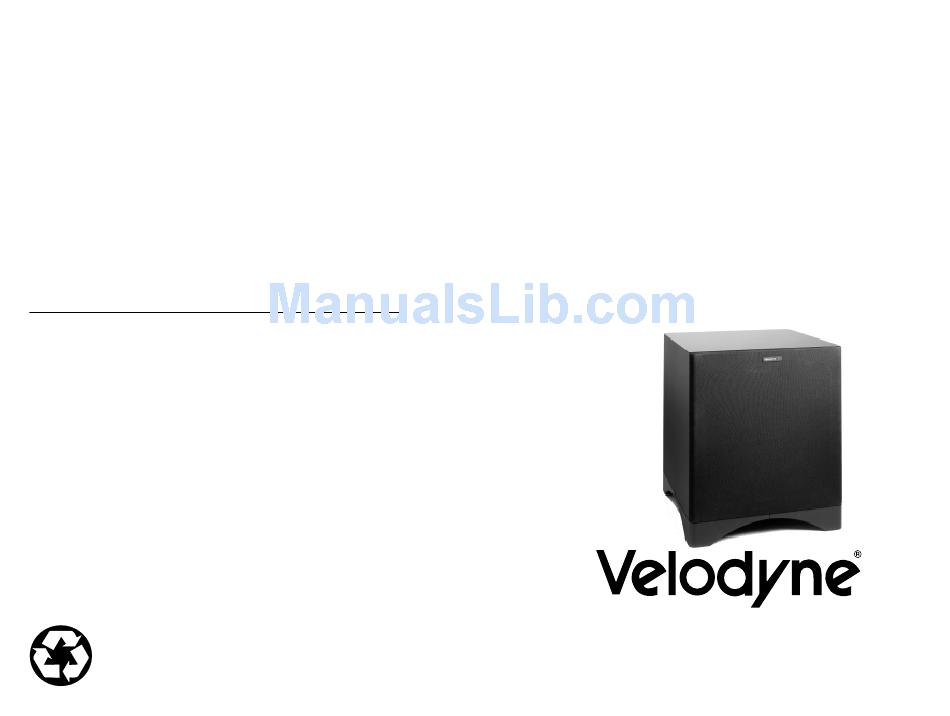

VLF-810
and
VLF-1012
Owner's Manual
Audio/Video Subwoofer System
Advertisement
Table of Contents
Related Manuals for Velodyne VLF-1012
Summary of Contents for Velodyne VLF-1012
- Page 1 "How do they get this kind of bass out of such a tiny box? Deep, tight, tuneful and loud enough to rattle pictures on the wall--this is serious subwoofing." -Robert Deutsch Stereophile Guide to Home Theater/September 1998 Velodyne Acoustics, Inc. 1070 Commercial St. Suite #101 San Jose, CA 95112 408.436.7270 voice 408.436.7276 fax Web Site: www.velodyne.com...
-
Page 2: Important Safety Instructions
Specifications are subject to change without notice. FOR YOUR RECORDS. . . DATE PURCHASED ____________________________________ DEALER __________________________________________________ SERIAL # _____________________________________________ * NOTE: Please complete and return your warranty card within ten (10) days. VLF-1012 24Hz - 120Hz <5% (typical) 80Hz (6 dB/octave) 40Hz - 120Hz °... -
Page 3: Troubleshooting And Service
The first type of protection circuitry which prevents overdriving of the speaker or amplifier operates constantly without being audible under most situations. In some extreme situations (sustained high output levels such as pro sound usage), the unit may shut down momentarily. This indicates operation of the thermal or undervoltage protection circuitry. -
Page 4: Interconnect Cables
IMPORTANTES CONSIGNES DE SECURITE ATTENTION Risque d’électrocution Ne pas ouvrir Attention: Afin d’éviter tout risque d’électrocution, ne pas enlever le boitier (ou partie arrière de l’enceinte). Aucune pièce ne doit être manipulée par l’utilisateur. Pour tout entretien, vous référer à un personnel de service qualifié. - Page 5 Congratulations! Figure 2. Installation Using Speaker-level (from amplifier) Inputs Congratulations on your purchase of a Velodyne subwoofer system. This system represents the state of the art in home audio reproduction and will provide you with years of listening pleasure when properly cared for. Read and follow this instruction manual to insure safe and proper system connection and operation.
-
Page 6: Product Features
• Signal sensing auto turn on/off (defeatable) • Variable volume control • Selectable phase control (0° or 180°) • Frequency response of 26-120Hz (VLF-810), 24-120Hz (VLF-1012) • Magnetically shielded for video use • Multiple staggered low-pass crossovers; 12dB/octave initial, 48dB/ octave ultimate •... -
Page 7: Line-Level Connection
Line-level Connection Figure 1 shows connection to a pre-amplifier's main outputs and returning them to your amplifier inputs. When installed in this fashion, your satellite speakers will be crossed over at 80Hz which removes the lower bass from your amplifier and speakers, enabling them to do a better job reproducing high frequencies. - Page 8 Important!!! Do not use both LINE LEVEL and SPEAKER LEVEL connections simultaneously! Volume control This control allows you to balance the output from the subwoofer to the main speakers/amplifier in your system. This control should be set to achieve similar output level from both the main speakers and subwoofer when listening to music.
