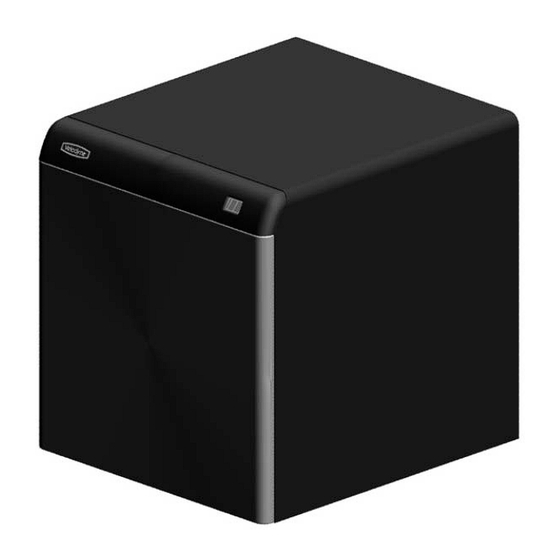

Velodyne DEQ-10R User Manual

Deq-r series remote controlled home theater subwoofers
Hide thumbs Also See for DEQ-10R:
Table of Contents

Advertisement

Quick Links

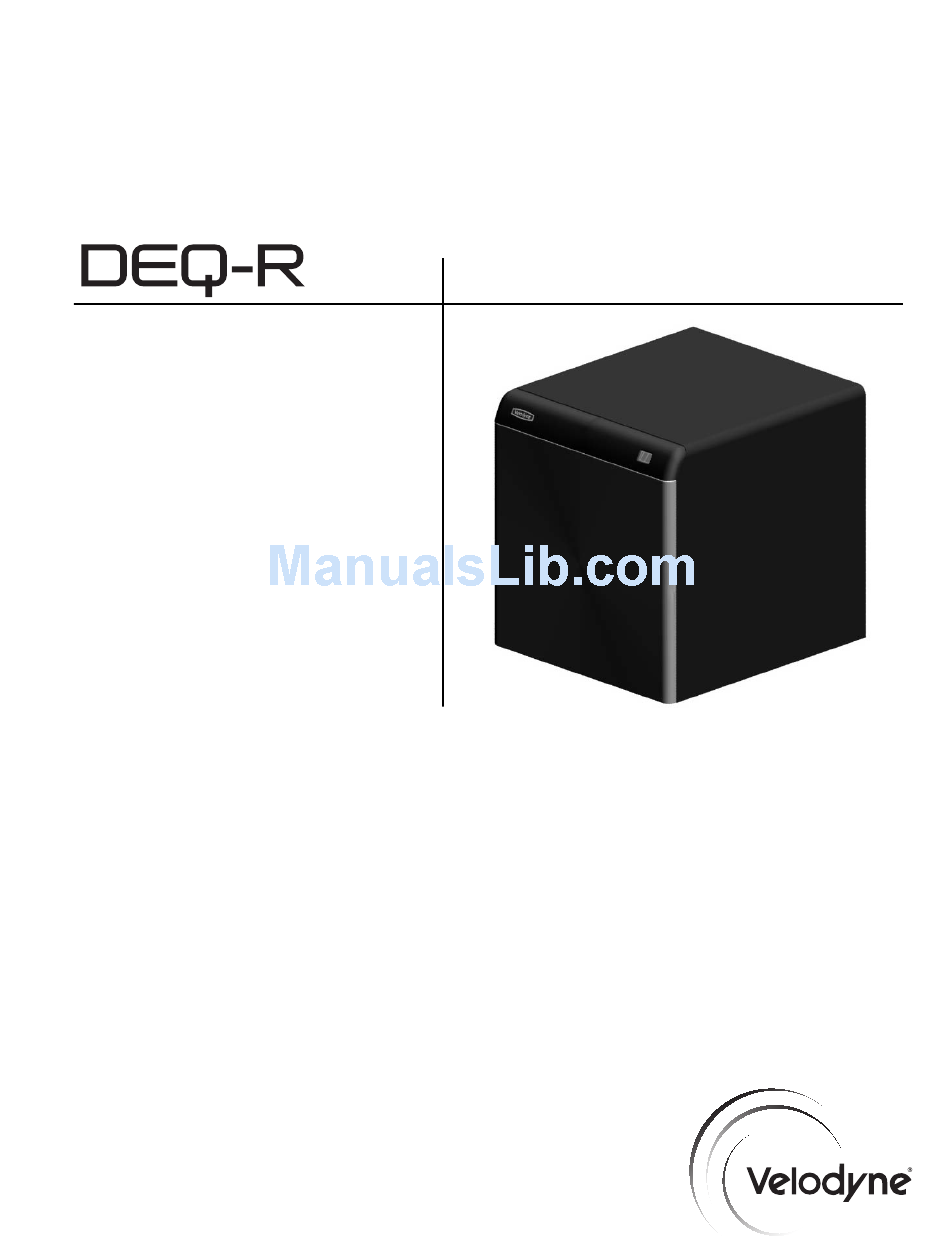

eries
S
DEQ - 8R
DEQ -10R
DEQ -12R
DEQ -15R
U S E R ' S
M A N U A L
R e m o t e C o n t r o l l e d H o m e T h e a t e r S u b w o o f e r s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEQ-10R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Velodyne DEQ-10R

Summary of Contents for Velodyne DEQ-10R

  • Page 1 eries DEQ - 8R DEQ -10R DEQ -12R DEQ -15R U S E R ’ S M A N U A L R e m o t e C o n t r o l l e d H o m e T h e a t e r S u b w o o f e r s...
  • Page 2 w w w . v e l o d y n e . c o m DEQ-R Series User’s Manual...

  • Page 3: Table Of Contents

    Ta b l e o f C o n t e n t s Congratulations ........... .1 Installation .

  • Page 4: Congratulations

    • Night-mode setting • Mute control • Built-in 180 watt (RMS) power amplifier (DEQ-8R) • Built-in 195 watt (RMS) power amplifier (DEQ-10R) • Built-in 225 watt (RMS) power amplifier (DEQ-12R) • Built-in 750 watt (RMS) power amplifier (DEQ-15R) • Adjustable (40 to 120 Hz) low-pass crossover with Subwoofer Direct setting •...
  • Page 5 P r e p a r e f o r I n s t a l l a t i o n Your new Velodyne subwoofer provides for a number of installation options. Read all of the installation information below in order to determine which installation option is best for your system.

  • Page 6: Installation

    I n s ta l l a t i o n I n p u t s Your new subwoofer is equipped with speaker-level and line-level inputs. Use the LINE LEVEL jacks when connecting your subwoofer to a pre-amp, signal processor (such as LFE out), line- level crossover, or receiver with pre-amp level outputs.
  • Page 7 P h a s e A d j u s t m e n t - 0 ° / 9 0 ° / 1 8 0 ° / 2 7 0 ° This control allows you to change the phase of the subwoofer’s output signal to correct for any possible mismatch and resulting cancellation between the subwoofer and your main speakers/amplifier.

  • Page 8: Front Panel

    F r o n t Pa n e l Remote Control Sensor Figure 1. DEQ-R Front Panel Following are brief descriptions of the controls and connections described in Figure 1. REMOTE CONTROL SENSOR IR sensor window receives a signal from the included remote control. LED READOUT 2.5 digit, eight segment LED readout displays volume, phase and Auto-EQ.

  • Page 9: Rear Panel Connections

    R e a r Pa n e l C o n n e c t i o n s Figure 2. DEQ-R Rear Panel Connections Figure 2 shows the controls and connections on the rear panel of the DEQ-R. Following are brief descriptions of the controls and connections described in Figures 2 and 2a and 2b.

  • Page 10: Line Output

    SPEAKER LEVEL OUTPUT Terminals Sends a crossed-over speaker-level signal to the front speakers. See below for a more detailed explanation of this crossover. IR INPUT This is a connection to allow you to purchase a third-party infrared remote sensor on an extended cable for placement closer to your other remote controlled equipment.
  • Page 11 R e a r P a n e l C o n n e c t i o n s — D e t a i l e d E x p l a n a t i o n Your new subwoofer is equipped with both speaker-level and line-level inputs.

  • Page 12: Crossovers

    C r o s s o v e r s R e c e i v e r / P r o c e s s o r S u b w o o f e r O u t p u t s The Velodyne subwoofer is designed to operate using the full range audio signal for input when using the built-in crossover.
  • Page 13 SUBWOOFER OUTPUT JACK FRONT AMPLIFIER REAR Figure 2a. Line-Level Subwoofer Connection Diagram w w w . v e l o d y n e . c o m DEQ-R Series User’s Manual...
  • Page 14 Figure 2b. Speaker-Level Subwoofer Connection Diagram w w w . v e l o d y n e . c o m DEQ-R Series User’s Manual...

  • Page 15: Interconnect Cables

    I n t e r c o n n e c t C a b l e s When installing your new Velodyne subwoofer using the line level connections, you should always use shielded phono cables. There are many high quality cables available today. It is recommended that you keep the length of cable as short as possible to avoid any potential noise problems.
  • Page 16 • LIGHT — If you wish, you can deactivate the numeric LED on your DEQ-R subwoofer by pressing the LIGHT button on your remote. To reactivate the LED, press the LIGHT button again. When the display has been deactivated, it will light only when you make adjustments to the subwoofer controls and then turn off again.
  • Page 17 The following table indicates musical style and which preset is recommended for it. MUSICAL STYLE Action Adventure Movies Country – Rock Country – Soft Folk Indie Music Rock Alternative Rock Blues Broadway and Vocalists Children’s Music Christian and Gospel Classic Rock Classical Dance and DJ Hard Rock/Heavy Metal...

  • Page 18: Restoring Defaults

    R e s t o r i n g D e fa u l t s There is a feature that allows you to restore default settings for your DEQ-R subwoofer. By pressing presets in EXACTLY the following order on the remote, the unit will restore its default settings.

  • Page 19: Troubleshooting And Service

    T r o u b l e s h o o t i n g a n d S e r v i c e Before seeking service for your amplifier or subwoofer, please re-check all systems. Following is a simple troubleshooting guide to assist you. 1.

  • Page 20: Specifications

    Three years (electronics) Five years (drivers) Shipping Weight (approx.) 44 lbs. (20 Kg) w w w . v e l o d y n e . c o m DEQ-10R 10” (24.5 cm) forward firing (8.2” piston diameter) 390 watts Dynamic/...

  • Page 21: Velodyne Products

    V e l o d y n e P r o d u c t s 120V ® DD Series DD-10 DD-12 DD-15 DD-18 Digital Drive 1812 Signature Edition DEQ-R Series DEQ-8R DEQ-10R DEQ-12R DEQ-15R DLS™-R Series DLS -3500R DLS -3750R DLS -4000R DLS -5000R Impact Series Impact - Mini Impact -10 Impact -12 w w w .
  • Page 22 LIMITED WARRANTY - U.S. AND CANADA ONLY VELODYNE ACOUSTICS, Inc. (“VELODYNE”) warrants all electronics for a period of three years, drivers for a period of five years, and full range speakers for a period of five years. All VELODYNE products have a warranty from the...
  • Page 23 Velodyne Acoustics, Inc. 345 Digital Drive Morgan Hill, CA 95037 408.465.2800 voice 408.779.9227 fax 408.779.9208 service fax www.velodyne.com Service E-mail: service@velodyne.com Product E-mail: help@velodyne.com Technical E-mail: techhelp@velodyne.com 63-DEQR Rev A JUL08 w w w . v e l o d y n e . c o m...
