Summary of Contents for Velodyne IMPACT IMPACT - 12

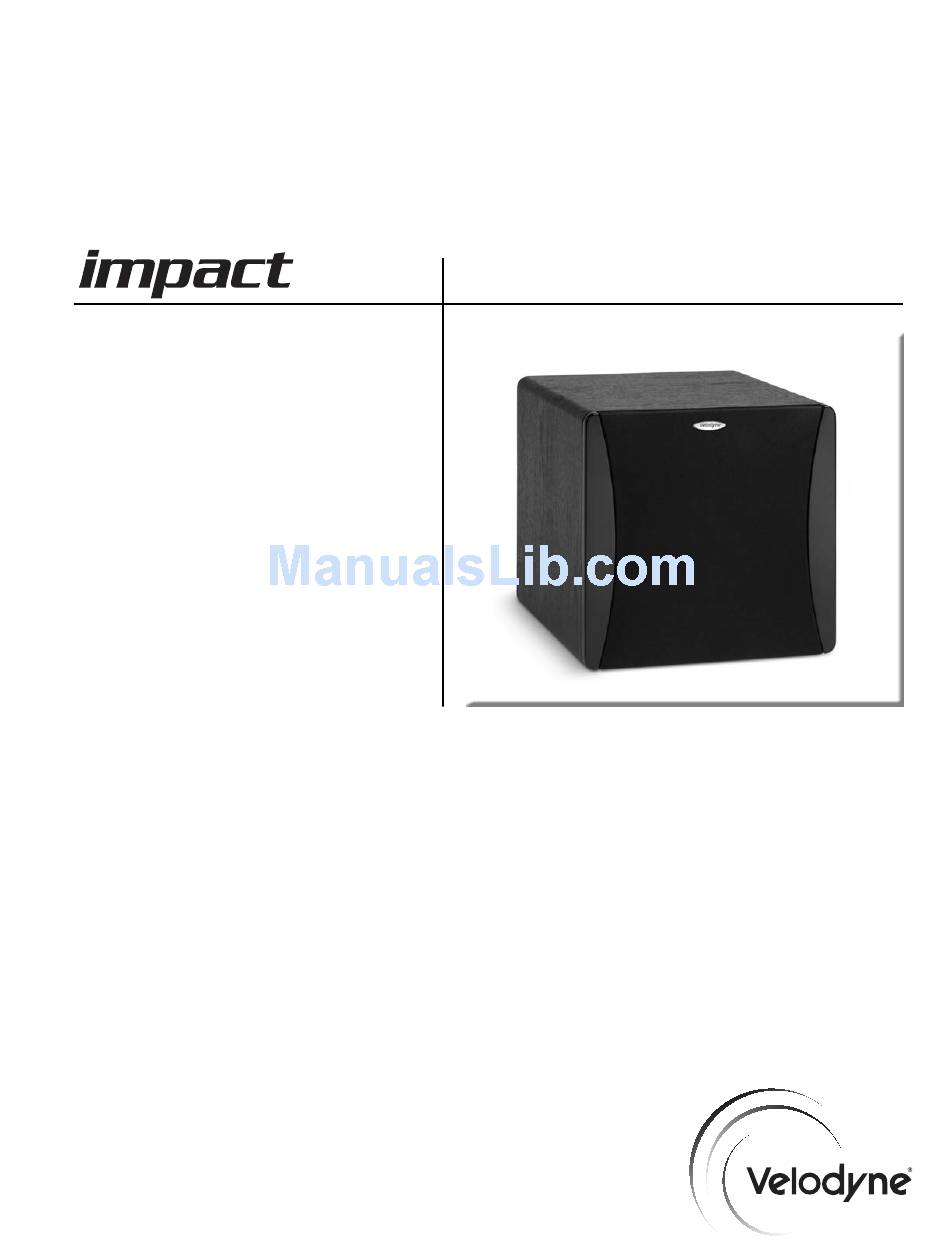

  • Page 1 eries impact - 10 Serpentine Oblique font impact - 12 impact - mini U S E R ’ S M A N U A L H o m e T h e a t e r S u b w o o f e r s...
  • Page 2 w w w . v e l o d y n e . c o m Impact Series User’s Manual...
  • Page 3: Table Of Contents

    Ta b l e o f C o n t e n t s Congratulations ........... .1 Installation .
  • Page 4: Congratulations

    C o n g r a t u l a t i o n s Congratulations on your purchase of a Velodyne Impact subwoofer system. This system represents the state-of-the-art in home audio reproduction and will provide you with years of listening pleasure when properly used and cared for.
  • Page 5: Installation

    P l a c e m e n t The first step in installing your new Impact sub is to determine where it will be placed in the room. Unpack the system carefully and use the following guidelines in order to find the best room placement option.
  • Page 6 To alleviate this condition, we recommend the following steps: 1) If using line level jacks, BOTH THE LEFT AND RIGHT INPUT CAN BE USED – never use just the left or just the right input. If the subwoofer’s signal comes from the LFE channel of your receiver, use a “Y”...
  • Page 7 L o w - p a s s C r o s s o v e r - 5 0 t o 2 0 0 H z As noted above, all inputs sum the left and right channels together, with the resulting signal passing through an adjustable low-pass crossover before being amplified.
  • Page 8: Rear Panel Connections

    R e a r Pa n e l C o n n e c t i o n s Figure 1.Impact Rear Panel Connections Figure 1 shows the connections on the rear panel of the Impact. Following are brief descriptions of the connections described in Figure 1.
  • Page 9: Crossovers

    VOLUME LEVEL knob - Use this knob to adjust the output level of the subwoofer. LOW-PASS CROSSOVER - Use this knob to select the high-frequency range at which you wish to cut-off the signal to the subwoofer. POWER INDICATOR - Red: Unit is in standby mode. Green: Unit is in operation mode.
  • Page 10 Figure 2a. Line-Level Subwoofer Connection Diagram w w w . v e l o d y n e . c o m SUBWOOFER OUTPUT JACK FRONT REAR AMPLIFIER Impact Series User’s Manual...
  • Page 11 SUBWOOFER OUTPUT JACK REAR AMPLIFIER FRONT FRONT LEFT SPEAKER FRONT RIGHT SPEAKER Figure 2b. Speaker-Level Subwoofer Connection Diagram w w w . v e l o d y n e . c o m Impact Series User’s Manual...
  • Page 12: Interconnect Cables

    I n t e r c o n n e c t C a b l e s When installing your new Velodyne subwoofer using the line level connections, you should always use shielded phono cables. There are many high quality cables available today. It is recommended that you keep the length of cable as short as possible to avoid any potential noise problems.
  • Page 13: Troubleshooting And Service

    T r o u b l e s h o o t i n g a n d S e r v i c e Before seeking service for your amplifier or subwoofer, please re-check all systems. Following is a simple troubleshooting guide to assist you. 1.
  • Page 14: Specifications

    S p e c i f i c a t i o n s SPECIFICATIONS IMPACT- Mini Woofer 6.5” (16.5 cm) active (5” piston diameter) & 8” (20.3 cm) passive (6.5” piston diameter) Amplifier: 300 watts Dynamic Power/ Class D 180 watts RMS Cabinet Design Acoustically neutral,...
  • Page 15: Velodyne Products

    V e l o d y n e P r o d u c t s 115 - 120V ® DD Series DD-10 DD-12 DD-15 DD-18 Digital Drive 1812 Signature Edition DEQ-R Series DEQ-8R DEQ-10R DEQ-12R DEQ-15R DLS™-R Series DLS -3500R DLS -3750R DLS -4000R DLS -5000R...
  • Page 16: To Obtain Service

    LIMITED WARRANTY - U.S. AND CANADA ONLY VELODYNE ACOUSTICS, Inc. (“VELODYNE”) warrants all electronics for a period of three years, drivers for a period of five years, and full range speakers for a period of five years. All VELODYNE products have a warranty from the...
  • Page 17 Velodyne Acoustics, Inc. 345 Digital Drive Morgan Hill, CA 95037 408.465.2800 voice 408.779.9227 fax 408.779.9208 service fax www.velodyne.com Service E-mail: service@velodyne.com Product E-mail: help@velodyne.com Technical E-mail: techhelp@velodyne.com 63-IMP RevC FEB10 w w w . v e l o d y n e . c o m...
