Seconique Nordic Assembly Instructions Manual
3 drawer occasional table
Hide thumbs
Also See for Nordic:
- Assembly instructions manual (16 pages) ,
- Assembly instructions manual (18 pages) ,
- Assembly instructions manual (13 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Seconique Nordic
Summary of Contents for Seconique Nordic

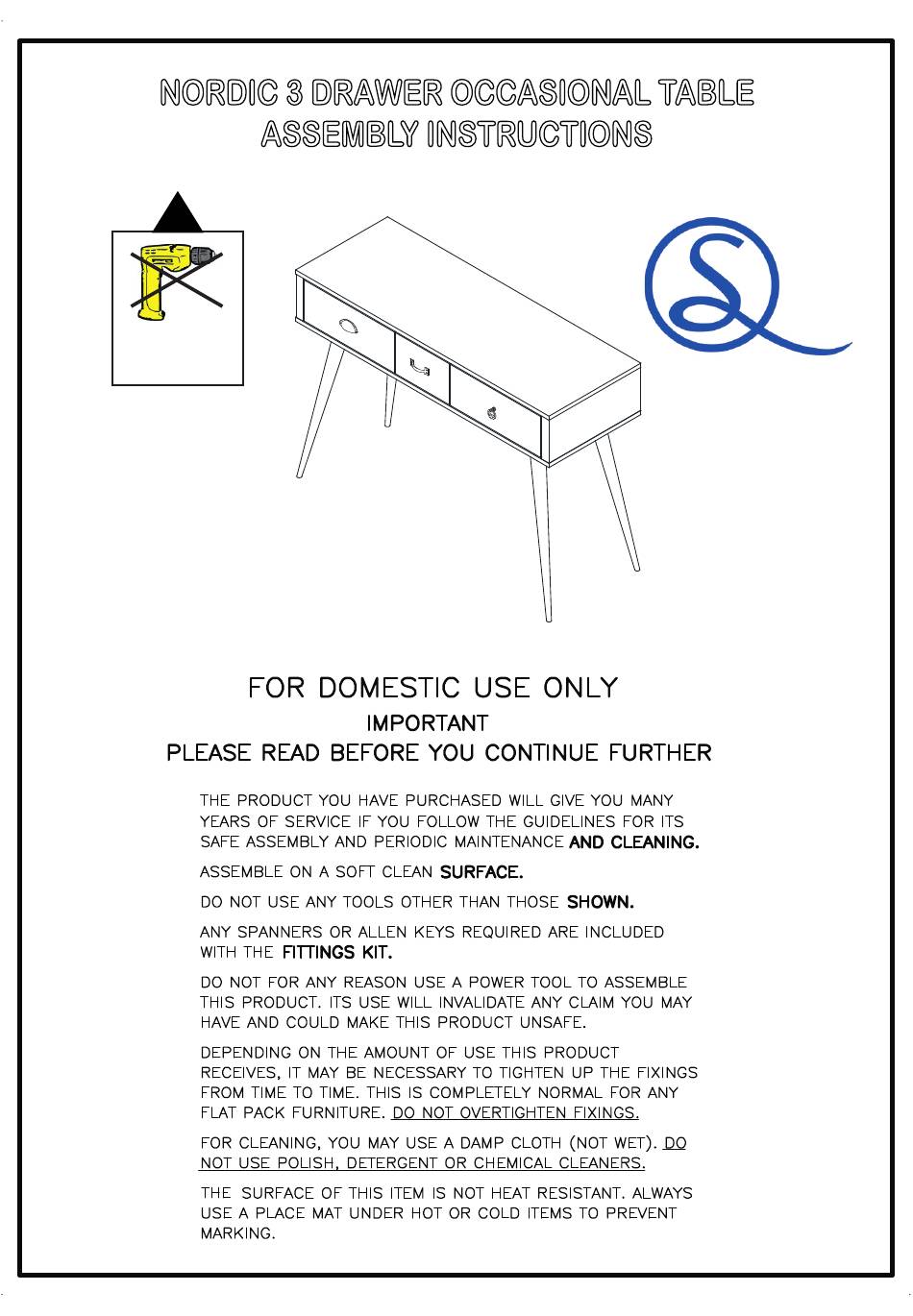

- Page 1 SEC/SH/03/19/ZF1 NORDIC 3 DRAWER OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS DO NOT Page 1...
- Page 2 SEC/SH/03/19/ZF1 PART LIST HARDWARE LIST CARTON 1 OF 1 CARTON 1 OF 1 Part Name Part Name Wooden Dowel (6x25mm) Bottom Panel 45mm Screw Left Drawer Side (4x45mm) 38mm Screw Right Drawer Side (4x38mm) Left Centre Panel 14mm Screw (3.5x14mm) Right Centre Panel Minifix Cam Bolt (8032T)
- Page 3 SEC/SH/03/19/ZF1 Page 3...
- Page 4 SEC/SH/03/19/ZF1 STEP 1 Wooden Dowel 14mm Screw 14” Drawer Slide STEP 2 Minifix Cam Bolt STEP 3 Second 14mm Screw 14” Drawer Slide Page 4...
- Page 5 SEC/SH/03/19/ZF1 STEP 4 Minifix Cam Nut STEP 5 STEP 6 45mm Screw Page 5...
- Page 6 SEC/SH/03/19/ZF1 STEP 7 14mm Screw Corner Support 65mm Screw STEP 8 Wooden Dowel Minifix Cam Bolt Minifix Cam Nut STEP 9 38mm Screw Page 6...
- Page 7 SEC/SH/03/19/ZF1 STEP 10 STEP 12 14mm Screw 14” Drawer Slide Page 7...
- Page 8 SEC/SH/03/19/ZF1 STEP 13 Screw M4x20mm Screw M3x16mm 4 PC Screw M3x16mm Handle + Screw Handle + Screw Handle + Screw STEP 14 Wooden Leg + Plastic Foot Page 8...
- Page 9 SEC/SH/03/19/ZF1 STEP 15 STEP 16 Page 9...
