VEC013DB
Jump-Start System
12VOLT DC POWER SUPPLY
OWNER'S MANUAL AND
WARRANTY INFORMATION
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY,
OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. READ
CAREFULLY BEFORE USE, AND RETAIN FOR FUTURE REFERENCE.
4 4 4 4 1 1 1 1 4 4 4 4 0 0 0 0 S S S S . . . . W W W W . . . . 2 2 2 2 8 8 8 8 t t t t h h h h W W W W a a a a y y y y , , , , F F F F t t t t . . . . L L L L a a a a u u u u d d d d e e e e r r r r d d d d a a a a l l l l e e e e , , , , F F F F L L L L 3 3 3 3 3 3 3 3 3 3 3 3 1 1 1 1 2 2 2 2
T T T T o o o o l l l l l l l l F F F F r r r r e e e e e e e e : : : : ( ( ( ( 8 8 8 8 0 0 0 0 0 0 0 0 ) ) ) ) 9 9 9 9 1 1 1 1 6 6 6 6 - - - - 7 7 7 7 0 0 0 0 0 0 0 0 4 4 4 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Durabuilt RD122904 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Durabuilt Durabuilt RD122904

  • Page 1 VEC013DB Jump-Start System 12VOLT DC POWER SUPPLY OWNER’S MANUAL AND WARRANTY INFORMATION THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. READ CAREFULLY BEFORE USE, AND RETAIN FOR FUTURE REFERENCE. 4 4 4 4 1 1 1 1 4 4 4 4 0 0 0 0 S S S S ..W W W W ..2 2 2 2 8 8 8 8 t t t t h h h h W W W W a a a a y y y y , , , , F F F F t t t t ..L L L L a a a a u u u u d d d d e e e e r r r r d d d d a a a a l l l l e e e e , , , , F F F F L L L L 3 3 3 3 3 3 3 3 3 3 3 3 1 1 1 1 2 2 2 2 T T T T o o o o l l l l l l l l F F F F r r r r e e e e e e e e : : : : ( ( ( ( 8 8 8 8 0 0 0 0 0 0 0 0 ) ) ) ) 9 9 9 9 1 1 1 1 6 6 6 6 - - - - 7 7 7 7 0 0 0 0 0 0 0 0 4 4 4 4...

  • Page 2: Safety Information Warnings

    SAFETY INFORMATION WARNINGS: 1. When working with lead-acid batteries, always make sure immediate assistance is available in case of accident or emergency. 2. Always use protective eyewear when using this product: contact with battery acid may cause blindness and/or severe burns, be aware of first aid procedures in case of accidental contact with battery acid.
  • Page 3 3. Never insert anything other than the supplied power/recharging cords or recommended appliance power/recharging cords into the 12 volt DC charging/ power socket on this unit. Do not use any accessory that is not recommended or provided by the manufacturer. 4.

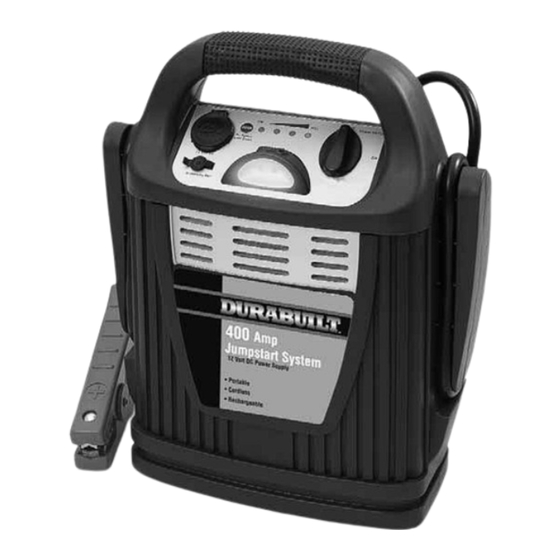

  • Page 4 INTRODUCTION Congratulations on selecting the Durabilt Jump-Start System. This compact jump- starter is unique in the amount of energy it can supply for its size. The internal battery is a high-density sealed, lead-acid battery that stores and delivers energy comparable to full sized ordinary jump-starters. Please read this guide carefully before use to ensure optimum performance and avoid damage to the unit or items that you are using it with.

  • Page 5: Additional Features

    FIGURE 1A (Front Panel View) 1. 12 Volt DC Accessory Socket for DC appliances (with overload protection) 2. Battery Level Status Pushbutton 3. LED Charging/Battery Level Indicators 4. ON/OFF Power Switch 5. Recharging Port 6. Area Light 7. Area Light ON/OFF Switch 8.

  • Page 6: Jump Starting Instructions

    JUMP STARTING INSTRUCTIONS Connect – Red clamp first, then black clamp. Disconnect – Black clamp first, then red clamp. 1. Turn OFF vehicle ignition and all accessories (radio, A/C, lights, cell phone, etc.). Place vehicle in “Park” and set the emergency brake. 2.
  • Page 7 6. Always disconnect the engine or frame jumper clamp first; followed by the battery jumper clamp. 7. Never allow red and black clamps to touch each other or another common metal conductor; this could cause damage to the unit and/or create sparking/explosion hazard.

  • Page 8: 120 Volt Ac Charging

    WARNING: • Always use protective eyewear when using this product: contact with battery acid may cause blindness and/or severe burns. • Keep out of children’s reach. FIRST AID: SKIN: If battery acid comes in contact with skin, rinse immediately with running water, then wash thoroughly with soap and water.

  • Page 9: Emergency Worklight

    12 V DC C HARGING 1. Insert the plug that is marked “TO VEHICLE ACCESSORY OUTLET” of the DC/DC charging adapter into the 12 volt DC accessory receptacle on the vehicle or boat. 2. Insert the plug at the other end of this charging adapter marked “TO JUMP STARTER OUTLET”...

  • Page 10: Battery Disposal

    Battery Disposal: This unit contains a maintenance-free, non-spillable, sealed lead- acid battery. This battery is fully recyclable and should be accepted at any location that accepts common automotive starter batteries. Examples of places that accept these batteries are: County or municipal recycling drop-off centers, scrap metal dealers and retailers who sell automotive replacement lead acid starter batteries.
  • Page 11 2 YEAR LIMITED WARRANTY PROGRAM This limited warranty program is the only one that applies to this product, and it sets forth all the responsibilities of Durabilt, regarding this product. There is no other warranty, other than those described herein. This Durabilt product is warranted, to the original purchaser only, to be free of defects i n materi a l s and workmanship for two years from the date of purchase without additional charge.
