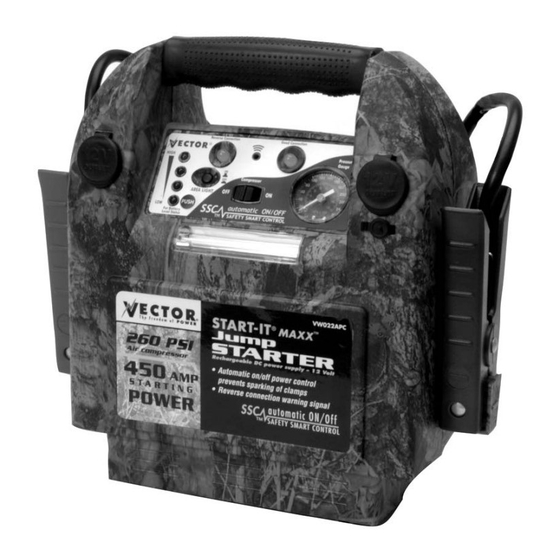

VW022APC
ST ART-IT® MAXX™
Jump-Start System
260 PSI AIR COMPRESSOR •12 VOLT DC POWER SUPPLY
OWNER'S MANUAL
& WARRANTY INFORMATION
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND
STORAGE OF THIS PRODUCT. BEFORE USING, READ AND UNDERSTAND ALL CAUTIONS, WARNINGS,
INSTRUCTIONS AND PRODUCT LABELS, PLUS YOUR VEHICLE'S BATTERY MANUFACTURER GUIDELINES.
FAILURE TO DO SO COULD RESULT IN INJURY AND/OR PROPERTY DAMAGE.
4140 SW 28TH WAY, FT. LAUDERDALE, FL 33312
TEL: 954-584-4446 • TOLL FREE: 866-584-5504 • FAX: 954-584-5556
www.vectormfg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the START-IT MAXX VW022APC and is the answer not in the manual?

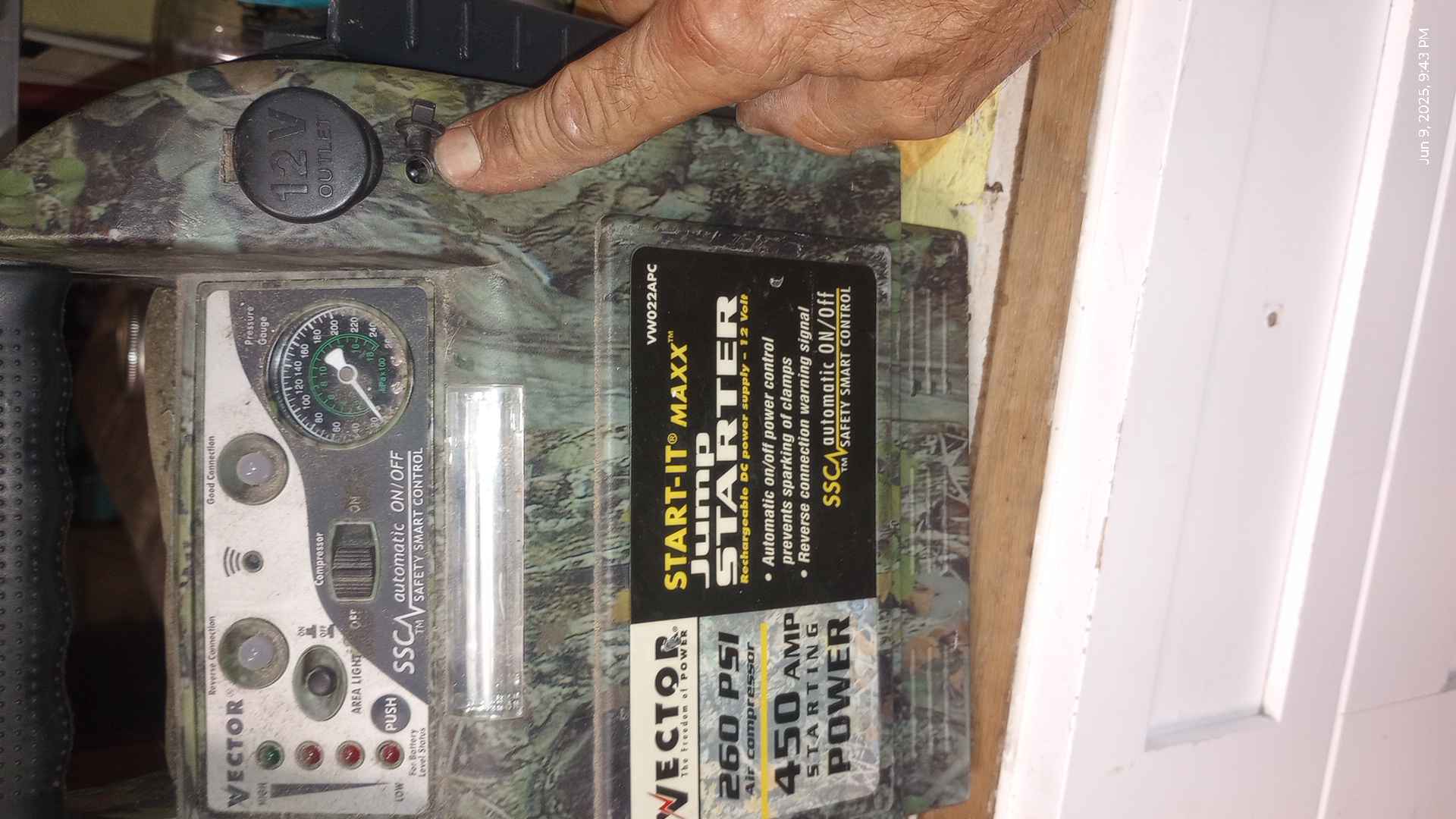

Questions and answers

Related Manuals for Vector START-IT MAXX VW022APC

Summary of Contents for Vector START-IT MAXX VW022APC

  • Page 1 VW022APC ST ART-IT® MAXX™ Jump-Start System 260 PSI AIR COMPRESSOR •12 VOLT DC POWER SUPPLY OWNER’S MANUAL & WARRANTY INFORMATION THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USING, READ AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS, PLUS YOUR VEHICLE’S BATTERY MANUFACTURER GUIDELINES.

  • Page 2: Safety Information

    NOTE: This unit is shipped in a partially charged state. Before first use, charge for 24 hours using AC method. SAFETY INFORMATION WARNINGS: (Warning statements identify conditions or practices that may result in personal injury or loss of life) When working with lead acid batteries, always make sure immediate assistance is available in case of accident or emergency.
  • Page 3 10) Check unit periodically for wear and tear. Replace worn or defective parts immediately. Contact Vector Customer Service department toll-free 866-584-5504. 11) Do not attempt to jump-start a frozen battery. 12) Never submerge this unit in water.

  • Page 4: Table Of Contents

    CONTENTS 1. INTRODUCTION ...5, 6 2. USING VECTORWOODS™ JUMPER AS A JUMP-START SYSTEM ...7 2.1 Easy, Step-by-Step Jump-starting Instructions ...8 3. CHARGING/RECHARGING ...9 3.1 110/120 Volt AC Charging ...9 3.2 12 Volt DC Charging ...10 3.3 Estimated Battery Life ...10 4.

  • Page 5: Introduction

    110/120 volt AC power supply. It can also be used as a safe, portable source of 12 volt DC electric power in remote locations and/or emergency situations. It is ideal for use with Vector 12 volt DC cordless, portable, rechargeable products and MAXXSST DC/AC Power Inverters.

  • Page 6: Additional Features

    FIGURE 1A (FRONT VIEW) 1. Reverse connection indicator 2. Good connection indicator 3. 12 volt DC accessory socket with 20 amp overload protection 4. Battery level pushbutton 5. LED charging/battery level indicators 6. Heavy-Duty welding quality jumper cables 7. Heavy-duty copper clamps 8.

  • Page 7: Using Vectorwoods™ Jumper As A Jump-Start System

    Check unit periodically for wear and tear. Replace worn or defective parts immediately; contact Vector Customer Service Department toll-free: (866) 584-5504 or through our Internet address: www.vectormfg.com. Do not attempt to jump-start a frozen battery.

  • Page 8: Easy, Step-By-Step Jump-Starting Instructions

    EASY, STEP-BY-STEP JUMP-STARTING INSTRUCTIONS This jump-starter is equipped with an automatic safety switch that only allows jump-start energy to flow when proper connections are made to battery and frame. The automatic switch works in conjunction with an audible reverse polarity alarm and a large red LED. If inadvertent reverse polarity occurs, the alarm will sound and the red LED will light.

  • Page 9: Charging/Recharging

    • Always use protective eyewear when using this product: contact with battery acid may cause blindness and/or severe burns • Keep out of children’s reach • ALWAYS store battery clamps in built-in holsters when not in use and never touch battery clamps together, this can cause dangerous sparks, power arcing and/or explosion FIRST AID:...

  • Page 10: 12 Volt Dc Charging

    12 VOLT DC CHARGING 1. Insert one end of the DC/DC charging adapter into a 12 volt DC accessory receptacle on the vehicle or boat. 2. Insert the plug at the other end of this charging adapter into the 12 volt DC accessory socket receptacle on the front of the unit.

  • Page 11: Emergency Worklight

    EMERGENCY WORKLIGHT The worklight is controlled by an On/Off switch. Make sure the lamp is turned OFF when the unit is being recharged or stored. The lamp is efficient and will operate up to 114 hours on a full charge. The CCFL lamp’s operating life is 100,000 hours. AIR COMPRESSOR/TIRE INFLATOR IMPORTANT: Read Instructions Carefully To Avoid Possible Injury Or Property Damage.

  • Page 12: Tire Inflation Or Products (W/ Valve Stem)

    TIRE INFLATION OR PRODUCTS WITH A VALVE STEM 1. Place connector (chuck) on valve stem. 2. Push connector toward valve stem and close thumb latch. 3. Make sure connector is pushed onto valve stem as far as possible before closing thumb latch. 4.

  • Page 13: Replacement Parts

    REPLACEMENT PARTS For replacement parts (bulbs, batteries, fuses, etc.), contact Vector Customer Service: (954) 584-4446 or toll-free (866) 584-5504. CCFL lamp is designed for 100,000 hours of operation. CCFL : It is not user replaceable. BATTERY REPLACEMENT to Vector Customer Service for battery replacement: Contact (954) 584- 4446 or toll-free (866) 584-5504.

  • Page 14: Warranty

    Vector Manufacturing. Any defective product, other than accessories, that is returned to Vector Manufacturing within 30 days of the date of purchase will be replaced free of charge. If such a product is returned more than 30 days but less than two years from the purchase date, Vector Manufacturing will repair the unit or, at its option, replace it free of charge.
  • Page 16 © 2004 VECTOR MANUFACTURING, Ltd. FT. LAUDERDALE, FL 33312 MADE IN CHINA RD072604...
