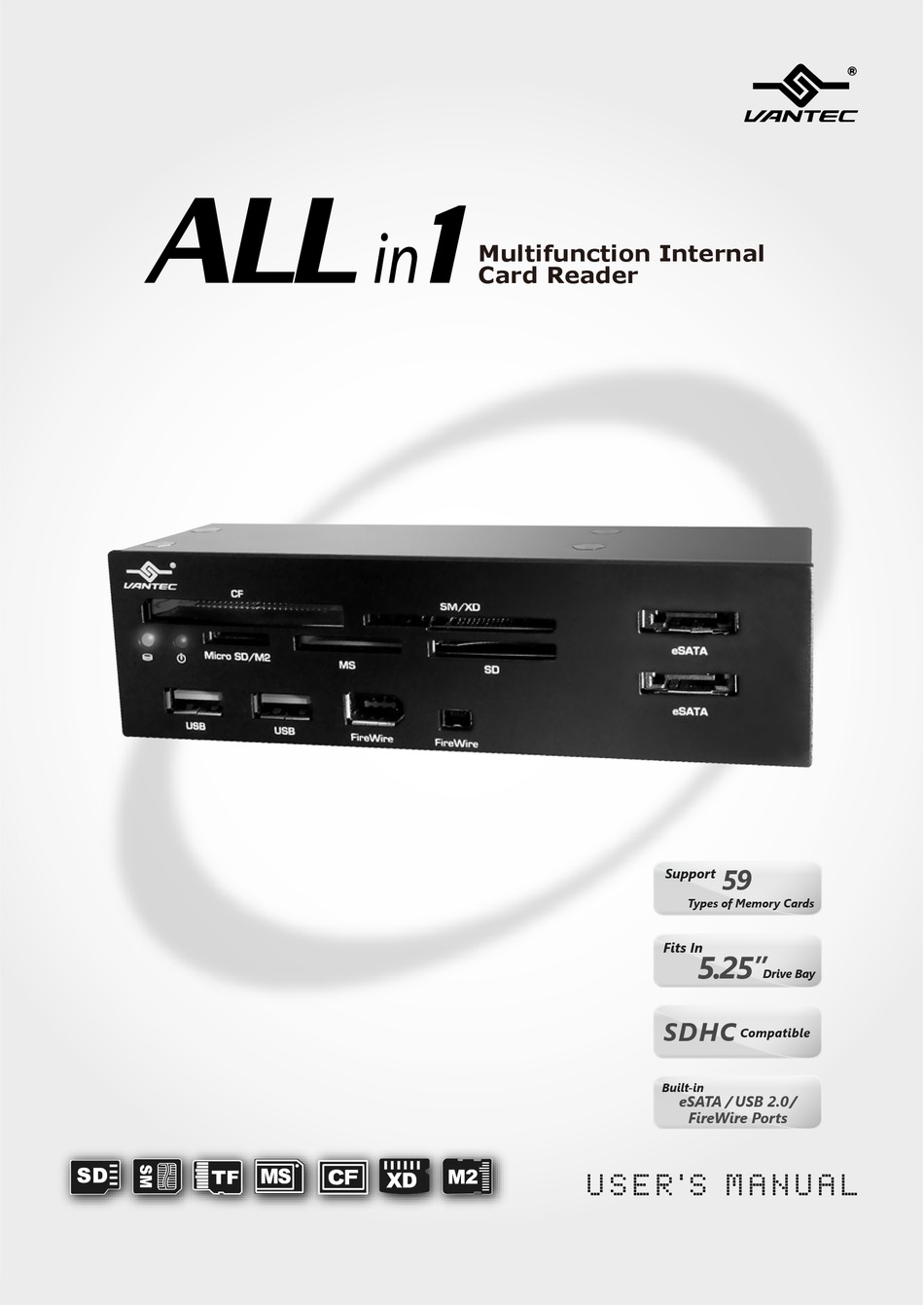

- Page 1 Multifunction Internal Card Reader Support Types of Memory Cards Fits In 5.25” SDHC Built-in eSATA / USB 2.0/ FireWire Ports U S E R ’ S M A N U A L Drive Bay Compatible...
-
Page 2: Package Contents
Package Contents : All in 1 Multifunction Internal Card Reader All in 1 Multifunction Internal Card Reader Installation Screws User’s Manual TRADEMARKS MS-DOS, Microsoft, Windows NT/2000/ME/XP/Vista are trademarks of Microsoft Corporation. Apple, Macintosh and Mac are trademarks of Apple Computer. *All other third-party brands and names are the property of their respective owners. -
Page 3: Table Of Contents
Table of Contents : 1. Introduction ... 02 2. Features/Specifications ...03 3. System Requirements/Parts Layout ...04 4. Installation ...05 5. FAQ/Warranty ... 07 6. Contact ... 08 Table of Contents... -
Page 4: Introduction
Unfortunately, with so many different types of memory cards, accessing them can quickly turn your computer into a mess of wires and adapters. The Vantec All-in-1 Multifunction Internal Card Reader brings you a convenient and compact way to share and exchange files stored in your flash memory cards from one simple panel. -
Page 5: Features & Specifications
2. Features / Specifications : All in 1 Multifunction Internal Card Reader Features: • Read/Write to 59 Types of Memory Cards • No Adapter Required for Micro SD (T-flash) • Fits in Any Standard 5.25” Drive Bay • Simultaneously Transfer Data Between Memory Cards •... -
Page 6: System Requirements/Parts Layout
3. System Requirements / Parts Layout : Intel Pentium II 350 MHz-compatible Microsoft Windows 2000/XP/ Vista 1. USB port, eSATA port, FireWire 400 (1394a) port 2. For USB 2.0 speeds, the system must support USB 2.0 specifications 3. For FireWire speeds, the system must support FireWire specifications 4. -
Page 7: Installation
4. Installation : All in 1 Multifunction Internal Card Reader (5-1) Please remove the side panels of the case to gain access to the chassis. Once inside, remove the 5.25" front panel where you wish to place the card reader. ( Figure 5-A ) (5-2) Insert the UGT-955-BK into the 5.25"... -
Page 8: Usb Cable
Installation : (5-5) Plug the two USB cables from the device to the USB ports on the motherboard (Please consult the user's manual from the motherboard for the location of the USB ports) (Figure5-E) (USB Cable) (5-6) Plug one 1394 cable to the 1394 port on the motherboard.(Please consult the user's manual from the mother- board for the location of the port) -
Page 9: Faq/Warranty
5. FAQ / Warranty : Why is the power indicator not illuminating? Why is the eSATA port not working? WARNING : The All in 1 Multifunction Internal Card Reader comes with a 1 year limited warranty (90 day parts) . If your unit should become defective within that time frame, please go to http://www.vantecusa.com for information on how to receive warranty... -
Page 10: Contact
6. / Contact : Contact Vantec Thermal Technologies 43951 Boscell Rd. Fremont, CA 94538 tel: 510-668-0368 fax: 510-668-0367 website: www.vantecusa.com Copyright © 2009 Vantec Thermal Technologies. All Right Reserved. All Registered Trademarks Belong To Their Respective Companies. Warranty / Contact...
