Westin 22-1395 Instructions

AUTOMOTIVE PRODUCTS, INC.
MOUNT KIT
EQUIPO DE MONTAJE
TROUSSE DE MONTAGE
22-1395
CHROME/ CROMADO /CHROME
22-0020, 22-5020
BLACK/NEGRO/NOIR
22-0025, 22-5025

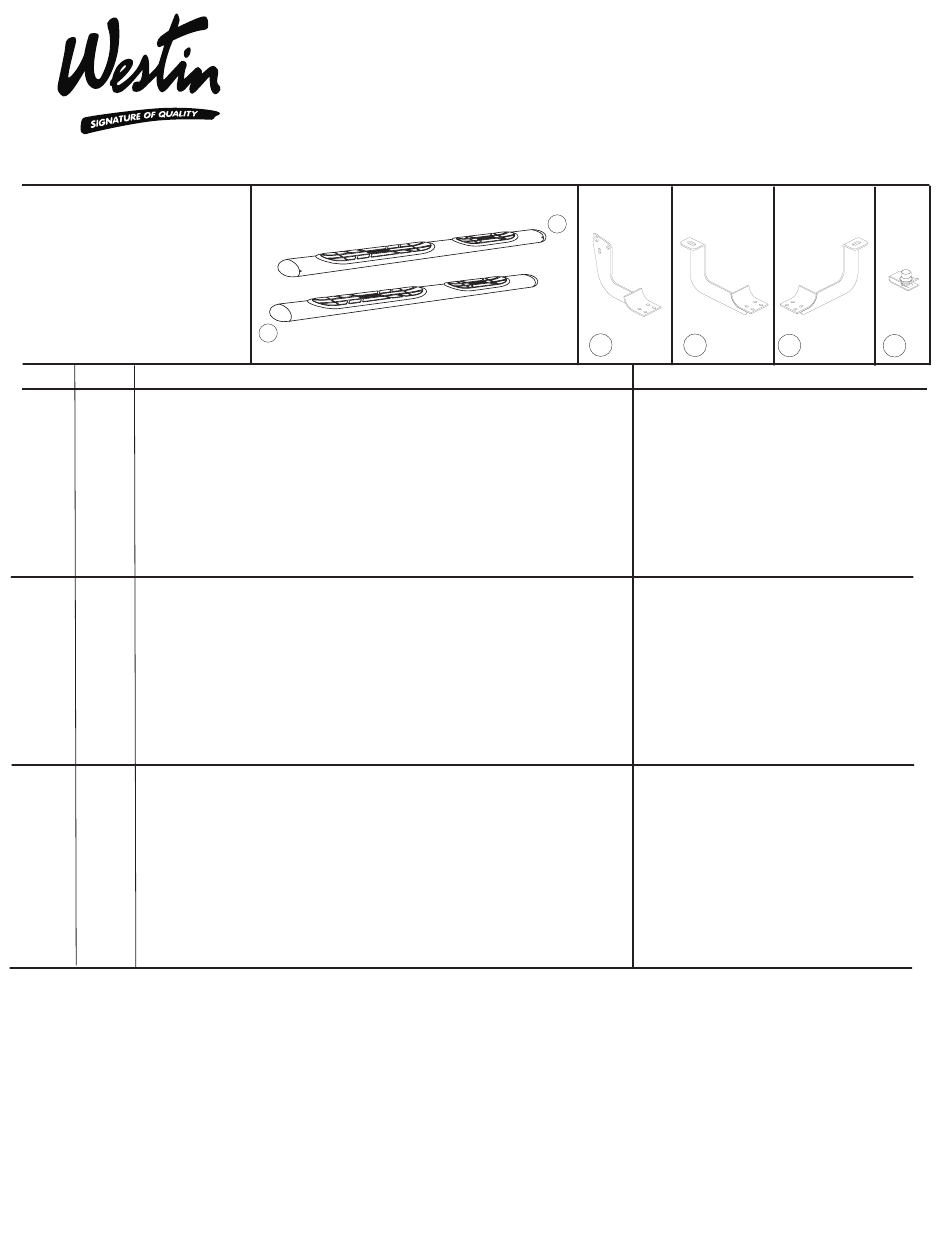

ITEM QTY

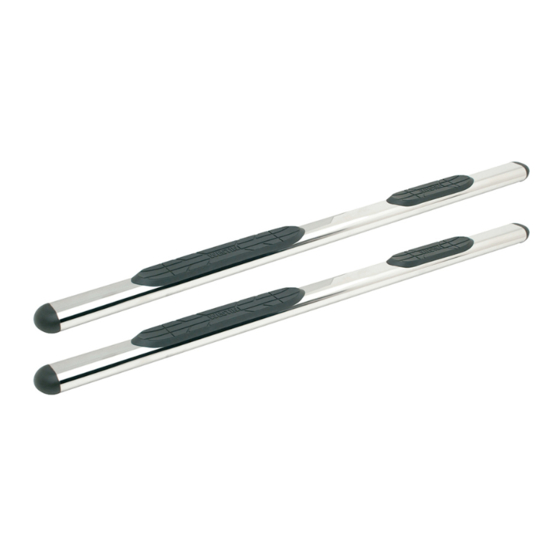

1,2 2 STEP BAR, PASSENGER (1) AND DRIVER (2) (PURCHASED SEPARATELY)
3 4 FRONT/CENTER BRACKET
4,5 2 REAR BRACKET, PASSENGER (4) AND DRIVER (5)
6 8 3/8-16 X 1.00" HEX HEAD BOLT
7 12 3/8" SAE FLAT WASHER
8 4 3/8" LOCK WASHER
9 4 3/8-16 HEX NUT
10 4 EXTRUDED U-NUT
11 12 1/4-20 X .75 T-HEAD BOLT
12 12 1/4" FLAT WASHER
13 12 1/4-20 NYLON INSERT LOCK NUT
1,2 2 ESTRIBOS, ACOMPAÑANTE (1) Y CONDUCTOR (2) (SE COMPRA SEPARADO)
3 4 SOPORTE DELANTERA/CENTRAL
4,5 2 SOPORTE TRASERAS, ACOMPAÑANTE (4) Y CONDUCTOR (5)
6 8 PERNOS CON CABEZA HEXAGONAL 3/8-16 X 1.00"
7 12 ARANDELA PLANA SAE DE 3/8"
8 4 ARANDELAS DE PRESIÓN DE 3/8"
9 4 TUERCAS HEXAGONALES DE 3/8-16
10 4 TUERCA A PRESIÓN EN "U"
11 12 PERNOS CON CABEZA EN T DE 1/4-20 X .75"
12 12 ARANDELAS PLANAS DE 1/4"
13 12 TUERCA DE FIJACIÓN HEXAGONAL 1/4-20
1,2 2 MARCHE-PIEDS, PASSAGER (1) ET CONDUCTEUR (2) (ACHETE
SEPAREMENT)
3 4 SUPPORTS AVANT/CENTRAL
4,5 2 SUPPORTS ARRIERE, PASSAGER (4) ET CONDUCTEUR (5)
6 8 BOULONS A TETE HEXAGONALE 3/8-16 X 1,00 PO
7 12 RONDELLES PLATE SAE 3/8 PO
8 4 RONDELLES A FREIN 3/8 PO
9 4 ÉCROUS HEXAGONAUX 3/8-16
10 4 ECROU EN U EXTRUDE
11 12 BOULONS A TETE-T 1/4-20 X .75 PO
12 12 RONDELLES PLATES 1/4 PO
13 12 1/4-20 ÉCROU DE BLOCAGE SIX PANS
Remove contents from box and check for damage. Verify all parts are present. Read instructions completely
STEP 1.
before beginning.
Insert extruded u-nuts in 2 of the mount brackets as shown. These are for the front mount locations.
STEP 2.
FIGURE 1.
Install front brackets as shown. Use knuckle extension(s) with socket wrench for easier installation of front
STEP 3.
brackets. N
OTE:
Install center brackets as shown. Hand tighten.
STEP 4.
Attach rear mount brackets by removing body mount bolt and inserting through bracket as shown. Hand
STEP 5.
tighten. SEE FIGURE 5.
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION: 2004-07 CHEVY COLORADO/GMC CANYON CREW CAB
2006-07 ISUZU i-370 CREW CAB
APLICACIÓN: CHEVY COLORADO/GMC CANYON CABINA DOBLE MODELO 2004-07
ISUZU i-370 CABINA DOBLE MODELO 2006-07
APPLICATION: 2004-07 CHEVY COLORADO/GMC CANYON, CABINE DOUBLE
2006-07 ISUZU i-370 CABINE DOUBLE
2
CONTENTS - CONTENIDO
Bolts are inserted up through bracket in body as shown.
1
3
- CONTENU
SEE FIGURE 4.
WO:
4 5
TOOLS - HERRAMIENTA
9/16" SOCKET
9/16" WRENCH
7/16" SOCKET
7/16" WRENCH
19MM SOCKET
MALLET
RATCHET
RATCHET EXTENSION
TORQUE WRENCH
3/8" DRIVE UNIVERSAL JOINT
DADO DE 9/16"
LLAVE DE TUERCAS DE 9/16"
DADO DE 7/16"
LLAVE DE TUERCAS DE 7/16"
DADO DE 19MM
MARTILLO
MANERAL
MANERAL EXTENSIÓN PARA MANERAL
LLAVE DE TORQUE
JUNTA CARDÁNICA UNIVERSAL DE 3/8"
DOUILLE 9/16 PO
CLEF 9/16 PO
DOUILLE 7/16 PO
CLEF 7/16 PO
DOUILLE 19MM
MARTEAU
CLIQUET
L'EXTENSION DE CLIQUET POUR CLIQUET
CLEF DE COUPLE
JOINT UNIVERSEL D'ENTRAINEMENT DE 3/8 PO
SEE FIGURES 2 AND 3.
75-0664 REVISION A 5/25/07
10
- OUTILS
SEE
