Vanguard SVFBC Owner's Operation And Installation Manual

Unvented (vent-free) logmate circulating stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

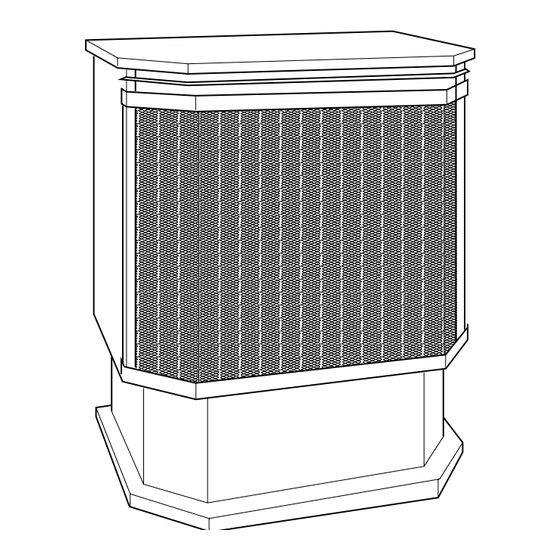

Unvented (Vent-Free) LogMate Stove
This stove may be installed in an aftermarket* manufactured (mobile) home, where not
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
(i.e. Installation of this product is permitted after the manufactured (mobile) home is sited).
OWNER'S
OPERATION
AND
INSTALLATION
MANUAL
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury, or
loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
prohibited by state or local codes.
Save this manual for future reference.
®
Circulating
WARNING: Improper installation, adjust-
ment, alteration, service, or maintenance
can cause injury or property damage.
Refer to this manual for correct installa-
tion and operational procedures. For
assistance or additional information
consult a qualified installer, service
agency, or the gas supplier.
WARNING: The SVFBC stove is to be
used only with certain vent-free gas log
heaters (see Table 1). Do not burn wood
or other materials in this stove.
This is an unvented gas-fired heater. It
uses air (oxygen) from the room in which
it is installed. Provisions for adequate
combustion and ventilation air must be
provided. Refer to section Air for Com-
bustion and Ventilation, page 6.
SVFBC
Stove
