Vanguard 3400 Series Installation Manual

3400 series access services gateway series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Vanguard 3400 Access Services
Gateway Series
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vanguard 3400 Series

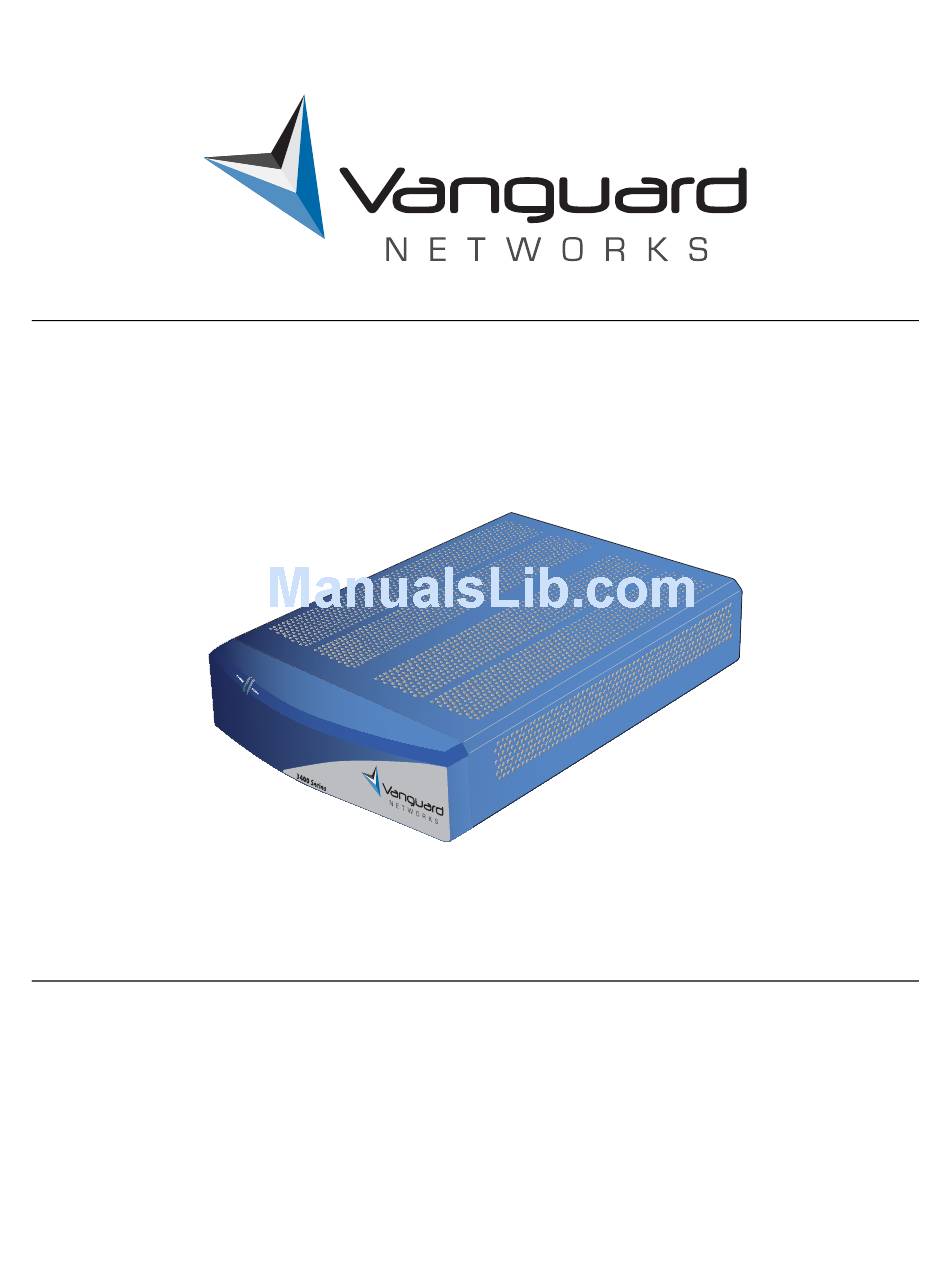

  • Page 1 Vanguard 3400 Access Services Gateway Series Installation Manual...
  • Page 2 Notice ©Copyright © 200X-2007 Vanguard Networks Solutions, LLC. All rights reserved. 25 Forbes Boulevard Foxboro, Massachusetts 02035 +1 (508) 964-6200 All rights reserved Printed in U.S.A. Restricted Rights Notification for U.S. Government Users The software (including firmware) addressed in this manual is a "commercial item" as that term is defined in 48 C.F.R.
  • Page 3 Proprietary Material Information and software in this document are proprietary to Vanguard Networks (or its Suppliers) and without the express prior permission of an officer of Vanguard Networks may not be copied, reproduced, disclosed to others, published, or used, in whole or in part, for any purpose other than that for which it is being made available.
  • Page 4 If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

  • Page 5: Table Of Contents

    Vanguard Networks Daughtercards ... Chapter 3. Installation and Replacement Overview ... Checking Your Shipment Contents ... Installing The Vanguard 3400 Series ... Installation ... Thermal Considerations ... Cabling Your Vanguard 3400 Series ... Cable Adapters and Special Cables ... Modifying Your Vanguard 3400 Series ...
  • Page 6 Contents (continued) Appendix A. Specifications Overview ... Appendix B. Software License and Regulatory Information Overview ... FCC Part 68 and Telephone Company Procedures and Requirements for DSU and T1 Interfaces ... Product Declarations and Regulatory Information ... Return Procedures Introduction ... Return-1...

  • Page 7: About This Manual

    Note For information on operating system software and configuration, see the Vanguard Basic Configuration Manual (Part Number T0113). This manual is intended for people who install and operate the Vanguard 3400 Series Audience products. The following table describes the contents of this manual:...
  • Page 8 This Page Intentionally Left Blank...
  • Page 9 The following notices emphasize certain information in the guide. Each serves a Special Notices special purpose and is displayed in the format shown: Note Note is used to emphasize any significant information. Caution Caution provides you with information that, if not followed, can result in damage to software, hardware, or data.
  • Page 10 Dutch De volgende vermeldingen besteden extra aandacht aan bepaalde informatie in Bijzondere de handleiding. Elke vermelding heeft een eigen nut en wordt in de volgende vermeldingen opmaak weergegeven: Opmerking Een opmerking wordt gebruikt om belangrijke informatie te benadrukken. Let op Dit kopje geeft aan dat u de beschreven instructies moet volgen om schade aan de software, hardware of gegevens te vermijden.
  • Page 11 Avertissement Un avertissement constitue le message le plus sérieux, indiquant que vous pouvez subir des blessures corporelles. German Durch die folgenden Hinweise werden bestimmte Informationen in diesem Besondere Handbuch hervorgehoben. Jeder Hinweis dient einem bestimmten Zweck und Hinweise wird im dargestellten Format angezeigt: Wichtig WICHTIG wird zur Betonung signifikanter Angaben zu Vorgehensweisen verwendet.
  • Page 12 Japanese Korean Norwegian Merknadstypene nedenfor representerer en bestemt type informasjon i håndboken. Spesielle merknader Hver merknadstype har en spesiell hensikt og vises på følgende format: Merk Merk brukes for å fremheve viktig informasjon. Forsiktig Forsiktig gir deg informasjon om situasjoner som kan føre til skade på programvare, datamaskin eller data dersom den blir fulgt.
  • Page 13 Portuguese/ Portugal Os avisos que se seguem realçam certas informações neste guia. Cada um deles serve Avisos Especiais um objectivo especial e é visualizado no formato apresentado: Nota Nota é utilizado para realçar qualquer informação importante. Atenção Atenção faculta-lhe informações que, se não forem cumpridas, poderão provocar danos no software, hardware ou nos dados.
  • Page 14 Varning Varning är den mest allvarliga beteckningen och den indikerar att du kan skadas fysiskt.

  • Page 15: Customer Information

    Customers who have questions about Vanguard Networks products or services Customer should contact your Vanguard Networks representative or visit this website for Questions product, sales, support, documentation, or training information: To help us improve our product documentation, please complete the comment card Comments About included with this manual and return it by fax to (508) 543-0237.
  • Page 16 This Page Intentionally Left Blank...
  • Page 17 Thank you for your help. Name _________________________________________________________________________ Company Name _________________________________________________________________ Address _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ Document Title: Vanguard 3400 Series Installation Manual Part Number: Please rate this document for usability: Excellent Good Average What did you like about the document? ______________________________________________...
  • Page 18 This Page Intentionally Left Blank...

  • Page 19: About The Vanguard 3400 Series

    Figure 1-1. Vanguard 3400 Series For a detailed description of the Vanguard 3400 Series and its features, refer to the “Features” section on page 1-2. For descriptions of the Vanguard 3400 Series Daughtercards and other hardware components, refer to the appropriate sections in Chapter 2, Hardware Description.

  • Page 20: Features

    This section summarizes the features available with your Vanguard 3410 and Introduction Vanguard 3460. For descriptions of the software running on your Vanguard 3410/ 3460, refer to the appropriate protocol document. This table lists the hardware features of the Vanguard 3400 Series: Hardware Features Memory OnBoard Flash...
  • Page 21 For additional information about the rear panel ports and the daughtercards, refer to appropriate section in Chapter 2, Hardware Description. For information about the physical specifications of the Vanguard 3400 Series, refer to Appendix A, Specifications. You can purchase daughtercards to expand the capability of your Vanguard 3400 Daughtercards Series.
  • Page 22 Features Vanguard 3400 Series Daughtercard Matrix (continued) Description V.90 (Modem) Note If a table entry contains the value "Yes", the daughtercard type will be supported in the DC Site for that platform. If a table entry contains the entry " --- ", the daughtercard type will not be supported in that DC Site of that platform.

  • Page 23: Applications

    Applications This section illustrates some typical applications of the Vanguard 3410/60. Introduction Vanguard 6841 Corporate Data Center Figure 1-2. ATM/Small Bank Branch Application About the Vanguard 3400 Series Vanguard 3410 Multiple Devices MPLS/FR Vanguard 3410 Back Up Applications Ethernet xDSL Modem...
  • Page 24 Applications Vanguard 6841 IPSec Corporate Data Center Figure 1-3. Retail Transaction Application Vanguard 3410 Multiple Devices IPSec MPLS/FR IPSec Vanguard 3410 Back Up About the Vanguard 3400 Series Serial xDSL Modem...
  • Page 25 Applications Soft Switch 6800 Series (IP/MPLS) Main Office PSTN 3460ASG Analog Phone IP Telephone Laptop Small/Medium Branch Office Figure 1-4. Hosted, SIP-based IP Telephony Application for Small/ Medium Branch Offices About the Vanguard 3400 Series...
  • Page 26 Applications Data Center SIP IPPBX Figure 1-5. SIP IPPBX-based, Centralized Telephony Application for Small/Medium Branch Offices 7300 Series IPSec PSTN IP Telephone Laptop Small/Medium Branch Office About the Vanguard 3400 Series IPSec 3460ASG Analog Phone...

  • Page 27: Hardware Description

    Overview This chapter describes the Vanguard 3400 Series. Introduction • Enclosure • Motherboard • Vanguard Daughtercards • Vanguard Modules Hardware Description Chapter 2 Hardware Description...

  • Page 28: Enclosure

    The enclosures contain a motherboard, (optional) daughtercards, and optional mini PCI modules. The front panel of the Vanguard 3400 Series (see Figure 2-1) has two LEDs that Front Panel provide node status. For a description of the LEDs refer to the “Powering Up Your Vanguard 3400 Series”...
  • Page 29 The Hardware Serial Number indicates the version of hardware in your unit. The Serial Numbers serial number label is located on ther rear panel of the Vanguard 3400 Series. Refer to the serial number when contacting your Vanguard Networks Service Representatives.

  • Page 30: Motherboard

    Motherboard Motherboard The Vanguard 3400 Series motherboard contains 16 MB flash and 64 MB of General SDRAM memory. It uses the MPC8270 CPU operated in single MPC 8270 mode. Description Additionally, the motherboard supports the following: • One or two daughtercards, depending on which model you have (see daugh- tercard matrix on page 2-6 for model-specific support) •...
  • Page 31 • For information about removing and installing the motherboard refer to the “Accessing the Motherboard” section in Chapter 3. • For information about removing or installing motherboard components, refer to the “Modifying Your Vanguard 3400 Series” section in Chapter 3. Hardware Description Future Expansion Connection for Upgradeablity...

  • Page 32: Vanguard Networks Daughtercards

    Vanguard Networks Daughtercards Vanguard Networks Daughtercards The table below identifies the daughtercards supported by each 3400 series model, as Supported well as any daughtercard slot restrictions that may apply. Daughtercards Vanguard 3410 Daughtercard Matrix Description 2P-SDC (2-Port Serial) 1130-10004 56K DSU Dual E&M...
  • Page 33 Older Vanguard Networks Daughtercards do not fit into the Vanguard 3400 Series. Daughtercard You can only use the newer daughtercards which are identified by a dimple as shown Compatibility in Figure 2-5. If the dimple is not present, do not attempt to use the Daughtercard in the Vanguard 3400 Series.
  • Page 34 Vanguard Networks Daughtercards The FT1/FE1 Daughtercards allow a Vanguard 3410 to transfer data over a T1 or E1 FT1/FE1 network. The daughtercards support full and fractional, channelized, T1 or E1, and Daughtercards PRI ISDN speeds. • The E1 Daughtercard provides line rates 2.048 Mbps and data rates of n x 64 kbps (where n is 1 to 31) per channel.
  • Page 35 The Vanguard Quad FXO Daughter Card is supported on the Vanguard 3460/3480. 4-Port Voice FXO The 4-Port Voice FXO Daughtercard has four RJ11 connectors for four FXO Ports. Daughtercard Figure 2-11 shows the 4-Port Voice FXO Daughtercard connectors as they appear on the back panel.
  • Page 36 Vanguard Networks Daughtercards This Page Intentionally Left Blank 2-10 Hardware Description...

  • Page 37: Installation And Replacement

    Overview This chapter provides instructions for the following tasks: Introduction • Checking Your Shipment Contents. • Installing the Vanguard 3400 Series. • Cabling the Vanguard 3400 Series. • Modifying Your Vanguard 3400 Series. Installation and Replacement Chapter 3 Installation and Replacement...

  • Page 38: Checking Your Shipment Contents

    Checking Your Shipment Contents Checking Your Shipment Contents Before you install the Vanguard 3400 Series, make sure your shipment contents are List of Contents complete. The Vanguard 3400 Series is packaged in shock-absorbent packing material. Inside your shipping carton, you should find the contents shown in Figure 3-1.

  • Page 39: Installing The Vanguard 3400 Series

    Installing The Vanguard 3400 Series This section explains how to install the Vanguard 3400 Series. It consists of these Introduction sections: • Selecting and preparing the installation site. • Installation. • Thermal considerations. • Cabling. After the Vanguard 3400 Series is installed and cabled, go to Chapter 4, Powering Up Your Vanguard 3400 Series for instructions for powering-up the unit.

  • Page 40: Installation

    Choose a site that is within an appropriate distance of a power source. Depending on your application, and the country in which the Vanguard 3400 Series is to operate, the power source must be a grounded 110 to 220 Vac outlet.
  • Page 41 Complete these steps to install the unit: Installation Step Note You can stack as many as three Vanguard 3400 Series units on top of each other. Caution Do not place items weighing more than 20 pounds (9 kg) on top of a Vanguard 3400 Series enclosure.

  • Page 42: Thermal Considerations

    After the unit is running, check the ambient air temperature. Make sure it does not Temperature exceed the operating temperature limits specified in Appendix A. Other conditions that could impact internal temperature of the Vanguard 3400 Series include: • Blocked vents •...

  • Page 43: Cabling Your Vanguard 3400 Series

    Also use proper cable strain relief to prevent damage due to excessive cable weight. Figure 3-3 shows the port numbering on the Vanguard 3400 Series rear panels. Rear Panel Port...
  • Page 44 Installing The Vanguard 3400 Series There are up to twelve physical ports (8 voice, 2 LAN, 1 Serial, and 1 CTP) on the Rear Panel Ports Vanguard 3400 Series rear panel. Some physical port numbers may vary from model to model. Port 1 Port 1 of the 3410 is a RS232 Serial Interface.

  • Page 45: Cable Adapters And Special Cables

    To emulate a high speed DTE interface V.11/X.21, V.35, or V.36 on any 3460 Series Universal Serial Port requires the use of a Cable Adapter (Figure 3-4) and special cables. Figure 3-4. Cable Adapters Installation and Replacement Installing The Vanguard 3400 Series Cable Adapter DCE-DTE crossover (one per port) Cable (one per port)
  • Page 46 Installing The Vanguard 3400 Series This table describes the DB25 connector pinouts for port 1: DB25 V.24 Pinouts (DCE) This port has an RJ-45 connector. Use Port 4 as the CTP for Use Port 4 as the CTP Port 4 for communicating with, configuring, monitoring, and for coldloading the node.
  • Page 47 19.2 kbps may degrade node performance. Port 23 and Port 24 This table shows the pinouts for the RJ45 Ethernet connector for Ports 23 and 24: Installation and Replacement Installing The Vanguard 3400 Series Port 4 (CTP) Signal...

  • Page 48: Modifying Your Vanguard 3400 Series

    Modifying Your Vanguard 3400 Series Modifying Your Vanguard 3400 Series You can modify your Vanguard 3400 Series by adding or replacing daughtercards or Introduction mini-PCI modules. This section explains how to make these modifications. Installing a Daughtercard You can install one Vanguard Networks Daughtercards in the Vanguard 3410 and Introduction two Vanguard Networks Daughtercards in the 3460.

  • Page 49: Accessing The Motherboard

    Accessing the Motherboard This section explains how to access the motherboard for the Vanguard 3400 Series. It Introduction also identifies the location of the key motherboard components. Before replacing modules, batteries, or daughtercards, you must access the Vanguard 3400 Series motherboard.
  • Page 50 Pull motherboard out of chassis by grabbing the bottom edge of rear panel and carefully sliding it out of chassis. Place the motherboard on a clean flat surface. Figure 3-7. Vanguard 3400 Series Motherboard Removal and Replace- ment 3-14 Caution When handling any components or cards, use ESD protection.
  • Page 51 Figure 3-9 shows the components on a Vanguard 3460 Series motherboard. Components Serial Number Figure 3-8. Location of 3410 Motherboard Components Installation and Replacement Future Expansion Connection for Upgradeablity Daughtercard Slot 1 Label Modifying Your Vanguard 3400 Series Encryption Module Battery 3-15...
  • Page 52 Modifying Your Vanguard 3400 Series Future Expansion Connection for Upgradeablity Daughtercard Slot 1 Encryption Module Battery Serial Number Daughtercard Slot 2 Label Figure 3-9. Location of 3460 Motherboard Components 3-16 Installation and Replacement...

  • Page 53: Installing And Removing The Encryption Pci Mezzanine Card

    Mezzanine Card Motherboard” section on page 3-13. Caution Some components used in the 3400 Series are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
  • Page 54 Modifying Your Vanguard 3400 Series Adding Encryption PCI Mezzanine Card Insert the module into the connector at an angle as shown. Push down on the module so that it is parallel to the motherboard and the release levers lock it into place.

  • Page 55: Installing/Removing The Lithium Battery

    Gerät beschädigen. Note After installing the battery, set the Vanguard 3400 Series’s date and time. This is done via the CTP in the Update System Parameter menu. Replace the lithium battery with lithium coin cell type CR1225 or its equivalent.
  • Page 56 The lithium battery should be replaced every two years. Follow the instructions in Routine Battery Figure 3-11 to replace the battery. Replacement Before you remove or install the battery, you must access the Vanguard 3400 Series Before Removing/ motherboard as described in the “Accessing the Motherboard” section on page 3-13. Installing the Battery Once you can see the motherboard, locate the battery as shown in Figure 3-11.

  • Page 57: Powering Up Your Vanguard 3400 Series

    Overview This chapter explains how to: Introduction • Power up your Vanguard 3400 Series. • Ensure that the unit powered up correctly and is up and running by reading the • Load the Vanguard 3400 Series software. Powering Up Your Vanguard 3400 Series Powering Up Your Vanguard 3400 Series front panel LEDs.

  • Page 58: Power Up Procedure

    Follow these steps to power up your Vanguard 3400 Series. Procedure Step To power down the Vanguard 3400 Series, unplug the power supply AC power cord from the power receptacle. Figure 4-1 shows the Vanguard 3400 Series LEDs and the table that follows LEDs describes them.

  • Page 59: Loading The Software

    Software Release Notice. A license refers to both a legal document that allows a customer to use features and to the software that contains the features. Powering Up Your Vanguard 3400 Series Loading the Software...
  • Page 60 Loading the Software This Page Intentionally Left Blank Powering Up Your Vanguard 3400 Series...

  • Page 61: Specifications

    This appendix describes the physical and electrical specifications for the Vanguard Introduction 3400 Series. Figure A-1 shows the exterior dimensions of the Vanguard 3400 Series. Dimensions Figure A-1. Vanguard 3400 Series Exterior Dimensions The Vanguard 3400 Series/ weights are listed below: Weight 3400 Series with one daughtercard installed.
  • Page 62 Input voltage: 5 VDC Nom. Power Requirements Input current: 3400 Series: 4 A Max. Maximum input power consumption: 3400 Series: 20 W...

  • Page 63: Software License And Regulatory Information

    Overview This appendix provides information about the following: Introduction • FCC Part 68 and Telephone Company Procedures and Requirements • Product Declarations and Regulatory Information Software License and Regulatory Information Appendix B...

  • Page 64: Fcc Part 68 And Telephone Company Procedures And Requirements For Dsu And T1 Interfaces

    FCC Part 68 and Telephone Company Procedures and Requirements for DSU and T1 Interfaces FCC Part 68 and Telephone Company Procedures and Requirements for DSU and T1 Interfaces Before a Vanguard 3400 Series can be connected to the network, you must do the Before You Begin following: •...
  • Page 65 FCC Part 68 and Telephone Company Procedures and Requirements for DSU and T1 Interfaces FCC regulations and telephone company procedures prohibit connection of Customer-Provided customer-provided equipment to telephone company-provided coin service Telephone (central office-implemented systems). Connection to party lines is subject to Equipment state tariffs.

  • Page 66: Product Declarations And Regulatory Information

    Product Declarations and Regulatory Information Product Declarations and Regulatory Information The following sections provide information about standards compliance, safety statements, and ISDN Type Approvals. The following special notices apply to all equipment handling procedures in this Warnings And installation guide. Cautions Warning Ports capable of connecting to ports on other apparatus are defined as Safety Extra...
  • Page 67 Declarations of Conformity English Hereby, Vanguard Networks declares that this Vanguard Router is in compliance with the requirement and other relevant provisions of Directive 1999/5/EC. Danish H e r m e d e r k l æ r e r V a n g u a r d N e t w o r k s a t i n d e s t å e n d e V a n g u a r d R o u t e r e r i o v e r e n s s t e m m e l s e m e d d e g r u n d l æ...
  • Page 68 Product Declarations and Regulatory Information Italian Con la presente Vanguard Networks dichiara che il router Vanguard soddisfa i requisiti essenzial e le altre disposizioni pertinenti della direttiva 1999/5/CE. Portuguese Através da presente, a Vanguard Networks declara que este encaminhador Vanguard se encontra em conformidade com os requisitos essenciais e outras disposições relevantes da Directiva 1999/5/CE.
  • Page 69 The following information includes the Industry Canada statement regarding ISDN Industry Canada and T1 equipment use. The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.
  • Page 70 Product Declarations and Regulatory Information This equipment has been tested and found to comply with the limits for a Class A Radio Frequency digital device, pursuant to Part 15 of the FCC Rules, CISPR 22 and EN 55022. These Interference limits are designed to provide reasonable protection against interference in a Regulations residential installation.

  • Page 71: Return Procedures

    Introduction The following sections apply to U.S.A. customers only. Non-U.S.A. customers with questions or concerns regarding return procedures should contact their Vanguard Networks subsidiary or distributor. If you have questions about equipment return procedures, on-site service or unit Equipment Return exchange service call the Vanguard Networks Technical Support Center at (800) Procedures 544-0062 for advice and assistance.
  • Page 72 To return equipment for factory repair, call the Vanguard Networks Technical Factory Repair Support Center at (800) 544-0062, for return authorization and instructions. When you call, you will be given a Return Material Authorization (RMA) control number. Mark this number clearly on the shipping container for ease of identification and faster service.
  • Page 73 Numerics 1- and 2-Port Serial Card Interface 2 Port Voice FXS Daughtercard 2-8, 56 K DSU/CSU Daughtercard Adding Components 3-12 Applications IPT Gateway Audience 1-vii Battery Disposal 3-19 Removal and Replacement Remove/Replace 3-19 Replacement Type 3-19 Cable Adapters Cabling Cable Adapters Canadian Regulatory Requirements Choosing a site Components...
  • Page 74 Optional Software Ordering Connections facility interface code interface type service code USOC jack connector Overview Pinouts DB25 connector 3-10 RJ-45 connector. 3-10 Port Numbering Ports numbers Rear Power Requirements Power Up LEDs LEDs Power Up Sequence Powering Up Product Declarations Rear Panel Regulartory Information Regulations...
