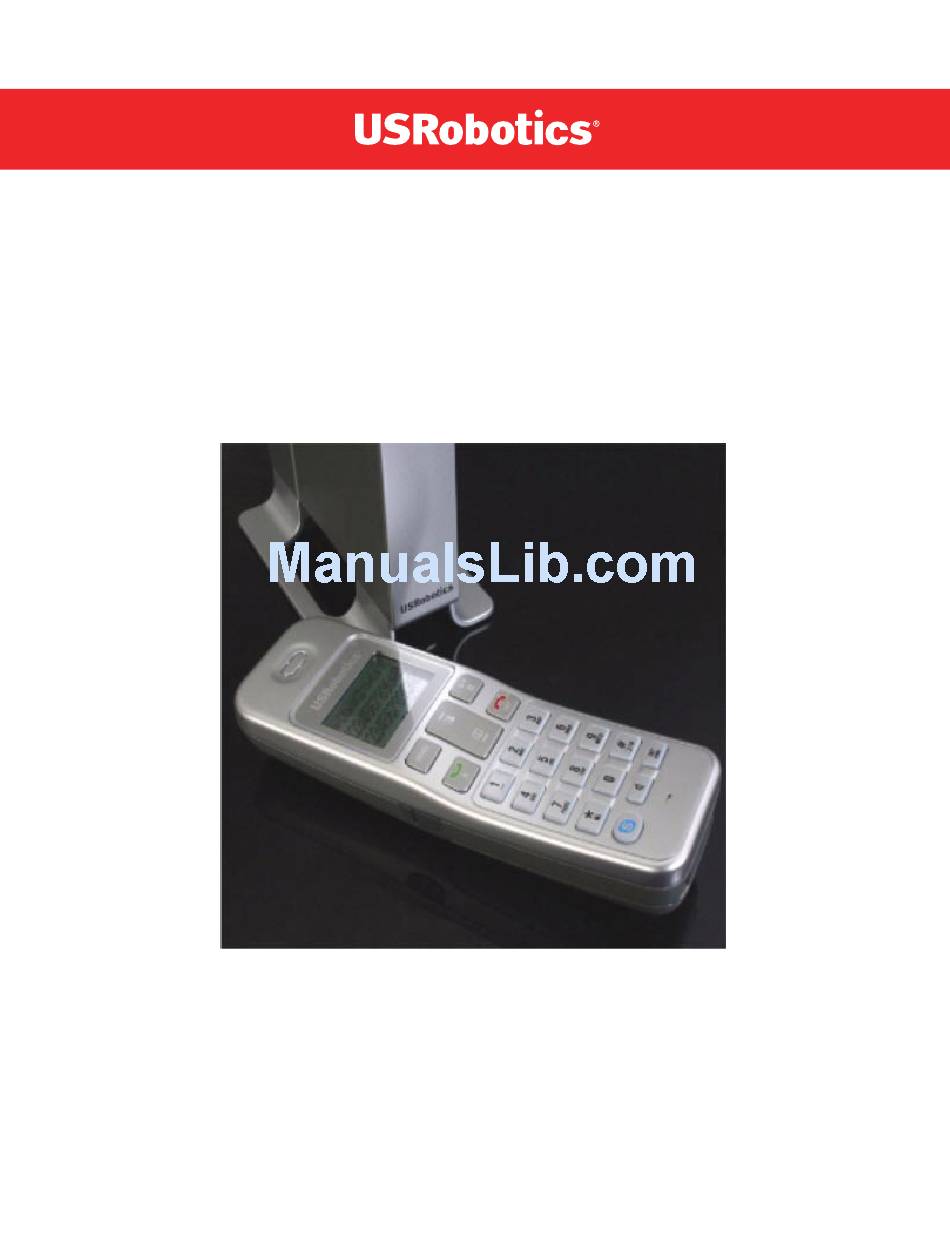

Cordless Skype Dual Phone
User Guide
R46.1396.00
rev 2 01/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for US Robotics 9630

Summary of Contents for US Robotics 9630

  • Page 1 Cordless Skype Dual Phone User Guide R46.1396.00 rev 2 01/07...

  • Page 3: Table Of Contents

    Contents Environment and Safety ..........7 Important Safety Instructions ...7 Introduction .
  • Page 4 Cordless Skype Dual Phone User Guide Radio and Television Interference Information ... 62 Noise... 63 FCC Radiation Exposure Statement... 63 Hearing Aid Compatibility (HAC)... 63 Privacy ... 63 UL Listing/CUL Listing ... 63 For Canadian Modem Users ... 63 U.S. Robotics Corporation Two (2) Year Limited Warranty ..... . 67...
  • Page 5 Cordless Skype Dual Phone User Guide...
  • Page 6 “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in USRobotics standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987) whichever is applicable.

  • Page 7: Environment And Safety

    Environment and Safety Skype is not a telephony replacement service. Any VoIP service used in conjunction with the Cordless Skype Dual Phone cannot be used for calls to emergency services or emergency telephone numbers (311, 911, 112, 999, etc.). Use a landline for calls to emergency services, such as police, fire, or ambulance.
  • Page 8 Cordless Skype Dual Phone User Guide to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
  • Page 9 E. If the product exhibits a distinct change in performance 17. Do not use the telephone to report a gas leak in the vicinity of the leak. 18. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
  • Page 10 Cordless Skype Dual Phone User Guide Because the phone works by sending radio signals between the base station and the handset, wearers of hearing aids may experience interference in the form of a humming noise. Your phone can interfere with electrical equipment such as answering machines, TV and radio sets if placed too close.

  • Page 11: Base Station

    Introduction Call around the world—no cords attached—with the USRobotics Cordless Skype Dual Phone. The base station connects to a USB port on your computer and to your existing phone line, so you can switch seamlessly between using the powerful Skype Internet voice application and making traditional phone calls. The bright, graphical LCD screen provides convenient access to your contacts and call lists, and it supports Skype Caller ID.

  • Page 12: Handset And Charger

    Cordless Skype Dual Phone User Guide Handset and Charger MENU Menu/OK Talk/Recall(Flash) PQRS Key lock Speaker Skype Battery compartment door LCD Display Icons Caller ID/Scroll up Redial/Mute/Back Off/Exit EXIT Phonebook/Scroll down WXYZ Ringer off/Pause Intercom/conference CONF Headset jack cover Contacts Battery status Ringer off Landline call...

  • Page 13: System Requirements

    Sy stem Re quirements To install and use the Cordless Skype Dual Phone and Skype™ Internet telephony service, your computer must meet the following minimum requirements: • Windows® XP or 2000 • 400 MHz processor • 128 MB RAM • USB port (USB 2.0 or USB 1.1) •...
  • Page 14 Cordless Skype Dual Phone User Guide...

  • Page 15: Installation

    Initial Installation Step One: Installing the Phone 1. Insert the USRobotics Installation CD-ROM into your computer’s CD-ROM or DVD drive. If the CD doesn’t start automatically, start it manually as follows: A. Windows XP: Click Windows Start > My Computer.

  • Page 16: Understanding The System Tray Icon

    Cordless Skype Dual Phone User Guide • Your hardware setup should look similar to this: Step Two: Select Your Country 1. Turn on the handset by pressing 2. When the handset indicates that it has established a link with the base station handset.

  • Page 17: Starting The Phone Program

    You can stop the phone program as follows: right click the icon in the system tray and select Exit. Starting the Phone Program If you stop the program, you can restart it as follows: click Windows Start > Programs > USRobotics Cordless Skype Dual Phone.

  • Page 18: Register The Handset

    Cordless Skype Dual Phone User Guide Register the Handset If the handset displays UNREGISTERED, you need to register the handset with the base station as follows: 1. Press MENU. The handset displays ADVANCED SET > REGISTRATION. 2. Press and hold the paging key on the base station until the In Use LED starts blinking. 3.

  • Page 19: Basic Operations

    Basic Operations Once you have installed the Cordless Skype Dual Phone, you will to make and receive calls. • Navigating the Menus • Entering Text • Basic Call Functions Navigating the Menus The phone’s menus provide options that let you change settings and review call history; they also provide access to both your Skype Contacts list and your landline phonebook.

  • Page 20: Menu Options

    Cordless Skype Dual Phone User Guide Menu Options Menu Option Skype Contacts User Status Voicemail Credits Phonebook Private View Edit Quick Dial To Shared Delete Delete All Status Shared View Edit To Private Delete Delete All Status Clock/Alarm Set Clock Set Alarm Alarm Tone Personal Set...

  • Page 21: Entering Text

    E n te r in g Text Some functions, such as adding an entry to your phonebook, require that you enter text. To enter text, repeatedly press the key labelled with the letter that you want until the letter appears in the phone’s display.

  • Page 22: Making A Skype-To-Landline Call

    Cordless Skype Dual Phone User Guide below shows the meaning of each icon. Icon Displayed Skype Presence on Handset Online / Skype Me Away Not Available Do Not Disturb Offline SkypeOut Entry 3. Press Press Making a Skype-to-Landline Call To call a landline phone via Skype, you must subscribe to SkypeOut™. You can subscribe as follows: 1.

  • Page 23: Direct Dialling

    If you add the landline number to your Skype Contacts list, you can call the landline by scrolling your contacts list and pressing the Skype key. Making a Call through Your Landline Direct Dialling 1. Enter the number that you want to call, up to 20 digits. The number appears on the display.

  • Page 24: Answering A Call

    Cordless Skype Dual Phone User Guide 1. Right-click the phone application’s icon in the sytem tray. 2. Select PC Initiated Calls as illustrated below: When you use the Skype program on your computer to place a call, the handset rings. You have two minutes to pick up the call on the handset by pressing the audio from the call remains on the computer and cannot be rerouted to the handset.

  • Page 25: Muting Your Voice

    You can increase or decrease the volume of the other party’s voice during a call. There are 5 volume levels for selection. To adjust the volume, during a call: 1. While the phone is off hook (i.e. dial tone is heard), press The display shows the current volume level.
  • Page 26 Cordless Skype Dual Phone User Guide 1. Press The phone displays MUTE. The caller cannot hear you, but you can hear the caller. 2. Press again to speak with the caller.

  • Page 27: Skype Features

    Skype Features Emergency Calling Although you cannot use Skype to make emergency calls, the Cordless Skype Dual Phone recognises emergency phone numbers for some countries. If you dial the emergency number and accidentally press instead of , the phone overrides your choice of lines and uses the landline to complete the emergency call. The emergency numbers are associated with the country that is selected on your phone.

  • Page 28: Making A Skype Conference Call

    Cordless Skype Dual Phone User Guide M ak in g a S kyp e C o n f e re n ce Ca l l To start a Skype conference call: 1. Make a Skype call to the first party. 2.

  • Page 29: Retrieving Voicemail

    Retrieving Voicemail If you see on the handset display, you have a message waiting. To retrieve it: 1. Press MENU. 2. Select SKYPE and press OK. 3. Select VOICEMAIL and press OK. 4. Scroll to the message you want to hear and press MENU. An asterisk (*) indicates that the message is new.
  • Page 30 Cordless Skype Dual Phone User Guide...

  • Page 31: Phonebook

    Phonebook The phonebook stores numbers that you call from your landline. It does not store Skype numbers; those are stored in the Skype contacts list. Your phone has one or more private phonebooks and one shared phonebook. A private phonebook is stored in the handset. If you have more than one handset, each has its own private phonebook.

  • Page 32: Dialling From The Phonebook

    Cordless Skype Dual Phone User Guide 6. Enter the phone number and press OK. If you need a dialling pause in the number, enter the pause by pressing and holding # until the handset dis- plays P. If you entered a duplicate name, the display asks whether to replace the entry. To replace the entry, press OK;...

  • Page 33: Editing Phonebook Entries

    Search by letter: to display names starting with a specific letter, press the key that has that letter on it. 3. Press TALK. Editing Phonebook Entries 1. Press MENU. 2. Select PHONEBOOK and press OK. 3. Select the phonebook, PRIVATE or SHARED, and press OK. 4.

  • Page 34: Delete All Entries

    Cordless Skype Dual Phone User Guide Delete All Entries 1. Press MENU. 1. Select PHONEBOOK and press OK. 2. Select the phonebook, PRIVATE or SHARED, and press OK. 3. Select DELETE ALL and press OK. The phone displays CONFIRM? 4. Press OK to confirm that you want to delete all entries. Copying Phonebook Entries You can copy your shared phonebook entries to your personal phonebook and vice-versa.

  • Page 35: Using Quick Dial

    2. Select PHONEBOOK and press OK. 3. Select the phonebook, PRIVATE or SHARED, and press OK. 4. Select STATUS and press OK. The phone displays the number of free and used phonebook entries. Using Quick Dial The quick dial feature lets you dial private phonebook entries by pressing and holding one key. You can assign 9 quick dial keys, keys 1–9.

  • Page 36: Deleting A Quick Dial Key

    Cordless Skype Dual Phone User Guide 4. Select QUICK DIAL and press OK. 5. Scroll to the key entry that you want to change and press OK. 6. Select EDIT and press OK. 7. Scroll to the phonebook entry that you want to assign to the selected key and press OK. Deleting a Quick Dial Key 1.

  • Page 37: Last Number Dialled

    Advanced Operations Advanced Call Functions Redialling From a List Your phone records the last 10 numbers or contacts that you have called, storing the first 32 characters of each name and phone number. To redial one of those numbers or contacts: 1.

  • Page 38: Make A Second Outgoing Call While On A Skype Call

    Cordless Skype Dual Phone User Guide Make a Second Outgoing Call While on a Skype Call To make a second Skype call: 1. While on a call, press The first call is put on hold and you hear a dial tone. 2.

  • Page 39: Chain Dialling

    Chain Dialling Chain dialling lets you link the numbers in multiple phonebook entries to form a single dialled number. To use chain dialling: 1. Enter the first number as follows: A. Press B. Select the first number that you want to dial. C.

  • Page 40: Phone Settings

    Cordless Skype Dual Phone User Guide 2. Plug the headset into the headset jack. You can hear the caller from the earpiece of the headset, and you can speak via the headset’s microphone. Speaker To use the built-in speaker: 1. While on a call, press You can hear the caller over the speaker and you can speak via the microphone;...

  • Page 41: Personal Settings

    On, Off, and Time 1. Press MENU. 2. Select CLOCK/ALARM and press OK. 3. Select SET ALARM and press OK. 4. Select ON or OFF and press OK. If you select ON, the alarm time is displayed. Use the numeric keys to enter the alarm time in 24-hour format. 5.

  • Page 42: Adjust The Contrast

    Cordless Skype Dual Phone User Guide 1. Press MENU. 2. Select PERSONAL SET and press OK. 3. Select HANDSET NAME and press OK. The handset name is displayed. 4. Edit the handset name. The name can be up to 10 characters long and can contain letters, numbers, and spaces. 5.

  • Page 43: Advanced Settings

    4. Select your preferred language and press OK. Sounds Select your handset’s ringing melody 1. Press MENU. 2. Select PERSONAL SET and press OK. 3. Select HANDSET TONE and press OK. 4. Select the line for which you want to set the ringtone. Choose from telephone, Skype, or internal.

  • Page 44: Dial Mode

    Cordless Skype Dual Phone User Guide phone comes with two recall duration values. If the recall or flash function is not working, switch to the other. To change the recall duration: 1. Press MENU. 2. Select ADVANCED SET and press OK. 3.

  • Page 45: Area Code

    4. Use the number keys to enter the PABX number. 5. Press OK. Area Code (On North American models only) If you do not have to dial the area code for numbers within your area code, use this setting. With this setting, the handset ignores your area code on incoming calls so that when you save the number to your phonebook it is saved with only the 7 digits that you need to dial.

  • Page 46: Keypad Lock

    Cordless Skype Dual Phone User Guide Voicemail Waiting Indicator If you have voice mail on your landline, the phone displays a voicemail waiting indicator. To clear the indicator: 1. Press MENU. 2. Select ADVANCED SET and press OK. 3. Select VMWI and press OK. The phone displays DELETE.

  • Page 47: Caller Id First Ring Suppression

    Caller ID First Ring Suppression If you subscribe to caller ID service, your phone suppresses the first ring on your landline ensuring that you can see who is calling as soon as you hear the phone ring. If you reset your phone to its default settings, first ring suppression is deactivated.

  • Page 48: Delete All Call Records

    Cordless Skype Dual Phone User Guide 3. Scroll to a record and press to view the number. Call from a Call Record When you are viewing a call record, you can return the call by pressing . If the call comes in from the landline, the return call uses the landline;...

  • Page 49: Multi-Handset Functions

    Cordless Skype Dual Phone User Guide The phone displays your most recent outgoing call record. 2. Scroll to see the records of your last 10 outgoing calls. Save a Dial Record to Your Phonebook You can save dialled numbers to your phonebook. 1.

  • Page 50: Answer An Intercom Call

    Cordless Skype Dual Phone User Guide Call Someone in the House Make an Intercom Call 1. Press CONF 2. Press the number of the handset that you want to call. Select the handset you want to call and press OK. Answer an Intercom Call When you receive an intercom call, your handset plays the internal ringtone and displays the number of the calling handset.

  • Page 51: Base Station Functions

    3. Wait for the other handset to answer the call. to toggle between the intercom and external calls. CONF Transfer a Call to Another Handset 1. While on an external call, press 2. Press the number of the handset that you want to call. Select the handset you want to call and press OK.

  • Page 52: Selecting A Base Station

    Cordless Skype Dual Phone User Guide Selecting a Base Station If your handset is registered to more than 1 base station, you can select the base station that the handset will use. 1. Press MENU. 2. Select ADVANCED SET and press OK. 3.

  • Page 53: Selecting Country

    Resetting to Default Values You can reset the display, sounds, and other settings of your phone to their default values. 1. Press MENU. 2. Select ADVANCED SET and press OK. 3. Select RESET and press OK. 4. If the handset prompts you for a PIN, enter the PIN and press OK. Selecting Country The correct country setting properly configures your phone for the local telephone network and sets the default language for the handset display.
  • Page 54 Cordless Skype Dual Phone User Guide...

  • Page 55: Troubleshooting

    Troubleshooting Basic Procedure This procedure addresses a number of symptoms that you might experience with your handset: 1. Verify that the batteries are properly installed. The inside of the battery case has a picture showing the proper positions for the batteries. 2.

  • Page 56: Windows 2000

    Cordless Skype Dual Phone User Guide 1. Reseat the handset in the charger to make sure that the charging contacts are properly aligned. 2. Take the handset off the charger and clean the charging contacts with a clean, dry cloth. The handset has poor audio quality (such as crackling or echo).
  • Page 57 Cordless Skype Dual Phone User Guide G. Click OK. My system sounds are playing through the wrong device. If your computer has multiple sound cards, you may need to reset the preferred sound device as follows: Windows XP 1. Click Windows Start and select Control Panel. 2.

  • Page 58: I Cannot Switch Between Two Calls

    1. Remove and replace the handset batteries. 2. Disconnect the base station from power and reconnect it. 3. Exit and restart both Skype and the USRobotics Cordless Skype Dual Phone program. 4. Wait for 15 minutes and try again. +1 or ) only, while in some Euro- +2).

  • Page 59: Support Information

    FAQ and Troubleshooting Web pages for your product. The product number of the Cordless Skype Dual Phone is 9630. You may need to know this to obtain information on the USRobotics Web site.
  • Page 60 Cordless Skype Dual Phone User Guide...

  • Page 61: Regulatory Information

    Regulatory Information Declaration of Conformity U.S. Robotics Corporation 935 National Parkway Schaumburg, IL 60173 U.S.A. Declares that this product conforms to the FCC Part15, Class B specifications. This equipment complies with FCC Part 15 for Home and Office use. FCC Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA.

  • Page 62: Radio And Television Interference Information

    Cordless Skype Dual Phone User Guide temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E or Part 68, FCC Rules and Regulations.

  • Page 63: Noise

    Cordless Skype Dual Phone User Guide Noise Electrical pulse noise is present at one time or another. This is most intense during electrical storms. Certain kinds of electrical equipment, such as light dimmers, fluorescent bulbs, motors, fans, etc., also generate pulse noise.

  • Page 64: Do Not Attempt To Repair Or Modify This Equipment

    Cordless Skype Dual Phone User Guide Notice: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met.

  • Page 65: Eu Health Protection

    We, U.S. Robotics Corporation of 935 National Parkway, Schaumburg, Illinois, 60173-5157 USA, declare under our sole responsibility that the product, USRobotics Cordless Skype Dual Phone, Models 9630 and 9631, to which this declaration relates, is in conformity with the following standards and/or other normative documents.
  • Page 66 Cordless Skype Dual Phone User Guide...

  • Page 67: Robotics Corporation Two (2) Year Limited Warranty

    Cordless Skype Dual Phone User Guide U.S. Robotics Corporation Two (2) Year Limited Warranty 1. 0 GENERAL TERMS: 1.1 This Limited Warranty is extended only to the original end-user purchaser (CUSTOMER) and is not transferable. 1.2 No agent, reseller, or business partner of U.S. Robotics Corporation (U.S. ROBOTICS) is authorised to modify the terms of this Limited Warranty on behalf of U.S.

  • Page 68: Obtaining Warranty Service

    Cordless Skype Dual Phone User Guide 2.3 CUSTOMER assumes full responsibility to properly install and configure this product and to ensure proper installation, configuration, operation and compatibility with the operating environment in which this product is to function. 2.4 CUSTOMER must furnish U.S. ROBOTICS a dated Proof of Purchase (copy of original purchase receipt from U.S.
  • Page 69 Cordless Skype Dual Phone User Guide received as an authorised return at an authorised U.S. ROBOTICS Return Centre. 4.5 Authorised CUSTOMER returns will be unpacked, visually inspected, and matched to the Product Model Number and Product Serial Number for which the RMA was authorised. The enclosed Proof of Purchase will be inspected for date of purchase and place of purchase.

  • Page 70: Governing Law

    Cordless Skype Dual Phone User Guide EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF U.S.

This manual is also suitable for:
