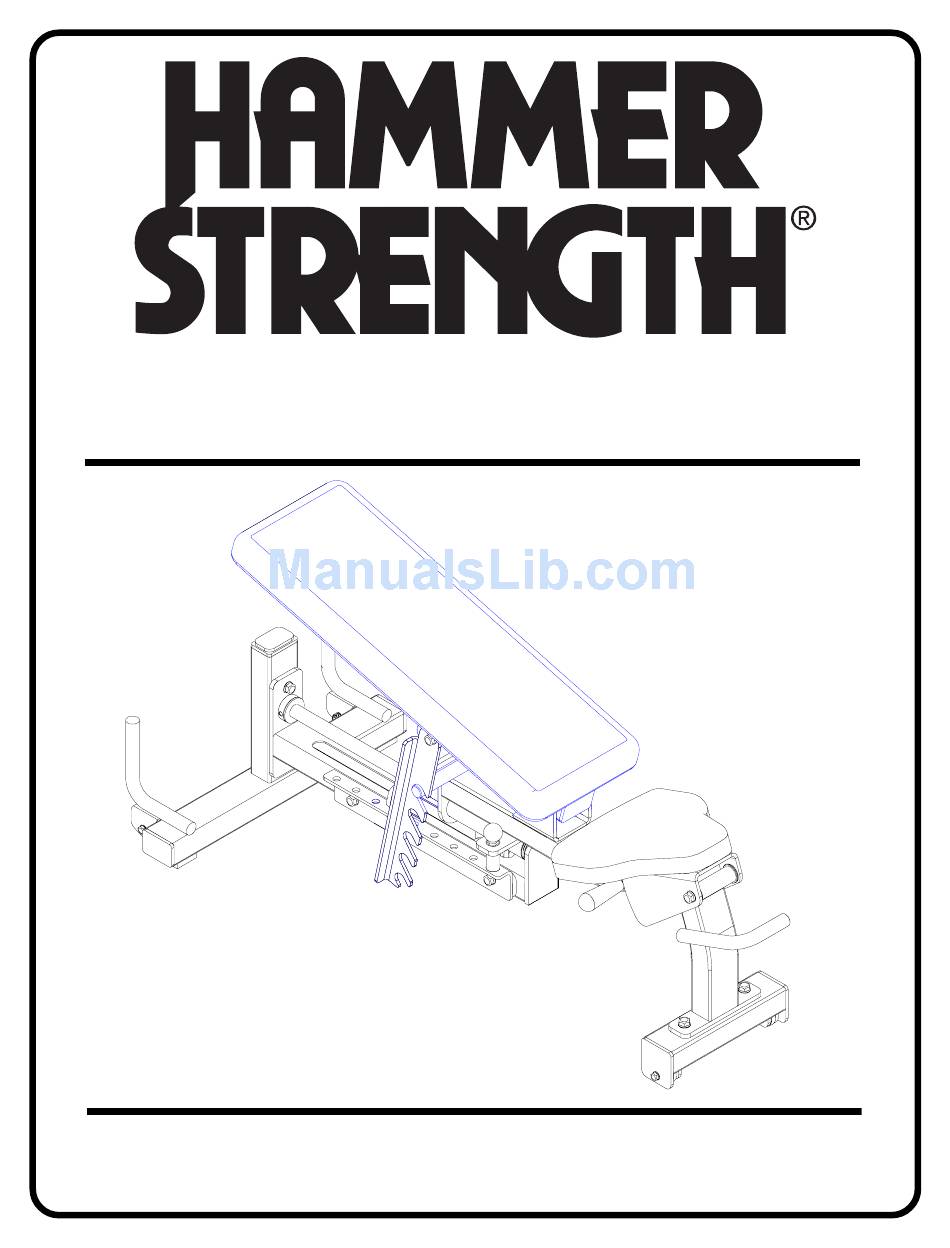

OLYMPIC HEAVY DUTY
ADJUSTABLE BENCH (OHDADJ)

ASSEMBLY INSTRUCTIONS

Part # 7627001
1
Revision:12/18/03
Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHDADJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Life Fitness OHDADJ

  • Page 1: Assembly Instructions

    OLYMPIC HEAVY DUTY ADJUSTABLE BENCH (OHDADJ) ASSEMBLY INSTRUCTIONS Part # 7627001 Revision:12/18/03 Rev. A...
  • Page 2: Parts List

    PART # DESCRIPTION LEA7595201 UPPER BENCH FRAME LEA7603101 BACK PAD SUPPORT LEA7605301 ADJUSTABLE SEAT SUPPORT LEA7605401 GUIDE ROD LEA7603401 LOWER BENCH FRAME LEA7605501 BENCH ADJUST ANGLE LEA7603901 REAR BENCH SUPPORT LEA7604401 FRONT BENCH SUPPORT LEA7604801 BACK PAD ADJUST LEA73519XX SEAT PAD LEA73540XX BACK PAD LEA7605701...
  • Page 3 14 M10 X 35mm FLAT HEAD BOLT 15 M10 X 35mm BOLT 16 3/8 X 2” BOLT 17 3/8 X 2-1/4” BOLT 18 1/2 X 1” BOLT 19 1/2 X 3-1/4” BOLT 20 1/2 X 4-1/2” BOLT 21 1/2 X 5” BOLT 22 1/2 X 10”...
  • Page 4 FIGURE 1 STEP 1: • Insert the GUIDE ROD (4) thru the SHAFT COLLAR and one 2” OD RUBBER WASHER (28) on the LOWER BENCH FRAME (5)as shown in FIGURE 1. • CAREFULLY slide the GUIDE ROD (4) through the HOUSING on the UPPER BENCH FRAME (1). (NOTE: Allow the GUIDE ROD (4) to push the plastic tube out of the end of the HOUSING.) See FIGURE 1.
  • Page 5 FIGURE 2 16 3/8 X 2” STEP 2: • SECURELY assemble two 2” OD WHEELS (13) to the REAR BENCH SUPPORT (7) using two 3/8 X 2” BOLTS (16), four 3/8” INT TOOTH LOCK WASHERS (24) and two 3/8” LOCK NUTS (27) as shown in FIGURE 2. (NOTE: Do not over tighten this connection, wheels should rotate smoothly.) •...
  • Page 6 FIGURE 3 STEP 3: • SECURELY assemble the REAR BENCH SUPPORT (7) to the LOWER BENCH FRAME (5) using two 1/2 X 3-1/4” BOLTS (19), two 1/2” INT TOOTH LOCK WASHERS (23), two 1/2” PLASTIC DOME WASHERS (25) and two 1/2” LOCK NUTS (26) as shown in FIGURE 3.
  • Page 7 FIGURE 4 1/2 X 1” 18 STEP 4: • SECURELY assemble the BENCH ADJUST ANGLE (6) to the LOWER BENCH FRAME (5) using two 1/2 X 1” BOLTS (18) and two 1/2” INT TOOTH LOCK WASHERS (23) as shown in FIGURE 4 FIGURE 5 M10 X 35mm 15 STEP 5:...
  • Page 8 FIGURE 6 1/2 X 5” 21 STEP 6: • SECURELY assemble the ADJUSTABLE SEAT SUPPORT (3) to the UPPER BENCH FRAME (1) using one 1/2 X 5” BOLT (21), two 1/2 INT TOOTH LOCK WASHERS (23), and one 1/2” LOCK NUT (26) as shown in FIGURE 6. •...
  • Page 9 FIGURE 8 1/2 X 4-1/2” 20 STEP 8: • SECURELY assemble the BACK PAD SUPPORT (2) to the UPPER BENCH FRAME (1) using one 1/2 X 4-1/2” BOLT (20), two 1/2 INT TOOTH LOCK WASHERS (23) and one 1/2” LOCK NUT (26) as shown in FIGURE 8. FIGURE 9 SERIAL NUMBER 1/2 X 10”...
  • Page 10: Preventative Maintenance Tips

    There is a risk assumed by individuals who use this type of equipment. To minimize risk, please follow these rules: 1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately. Failure to do so may result in serious injury. 2.
