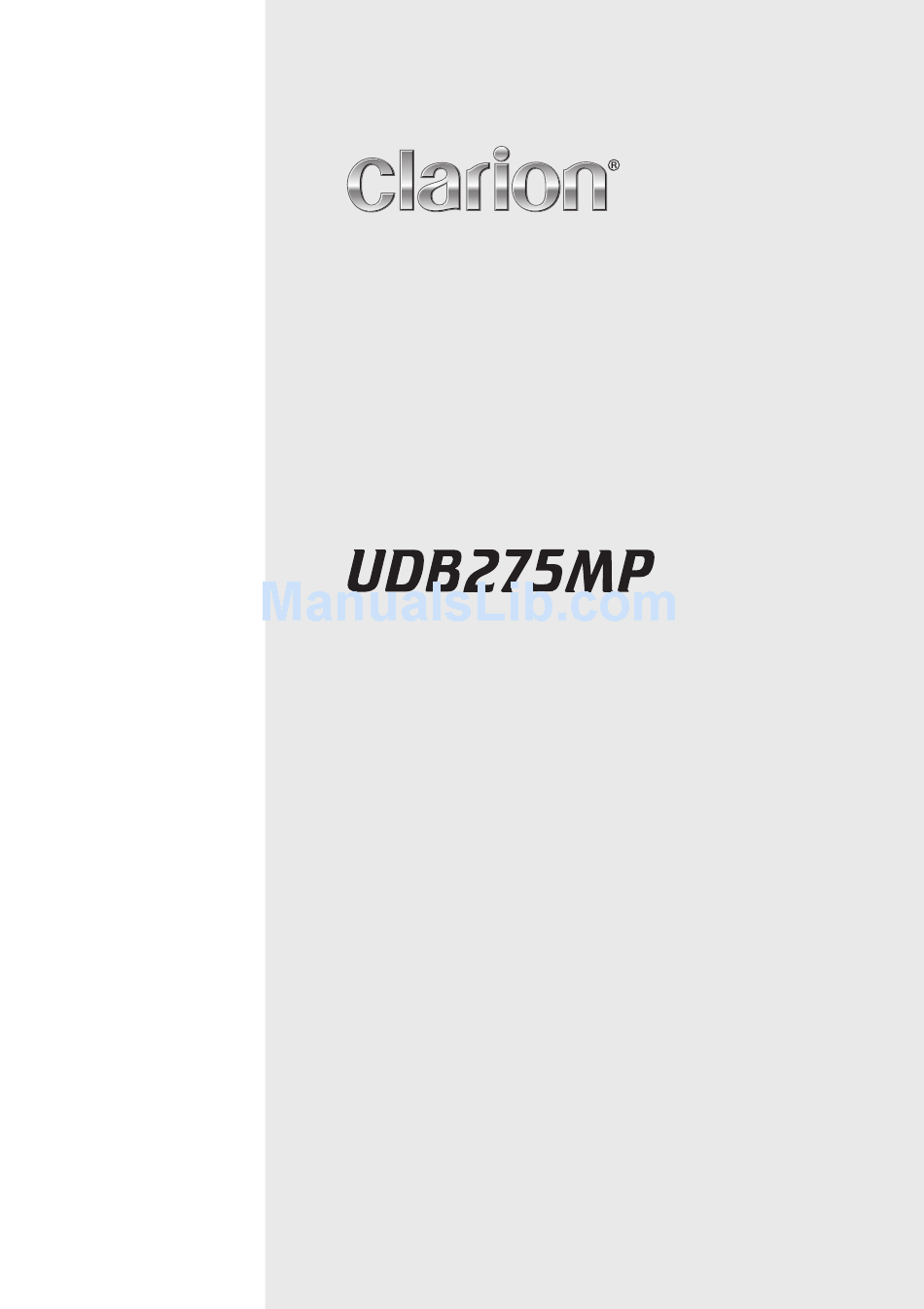

- Page 1 Owner’s manual Mode d'emploi Manual de instrucciones CD/USB/MP3/WMA RECEIVER RÉCEPTEUR CD/USB/MP3/WMA RECEPTOR CD/USB/MP3/WMA...
-
Page 2: Table Of Contents
Front USB and 3.5mm AUX Input 728-Variable Color Display and Illumination Keys 50W x 4 Built in MOS-FET Amplifier and 4ch RCA Output UDB275MP www.clarion.com Be sure to unfold and read the next page. Veuillez déployer et vous référer à la page suivante. -
Page 3: Controls
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre. Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas. UDB275MP / UNIDAD PRINCIPAL With the FLIP DOWN COVER opened... -
Page 4: Nomenclature
Track No./Play time Folder No./Track No. Title Display Clock Display Play time... UDB275MP ] button Perform preset scan while in the Radio mode. Press and hold the button for 2 seconds or longer to perform auto store. Play or pause a track while in the CD/USB mode. - Page 5 Recall ISR radio station in memory. Press and hold for 2 seconds or longer: Store current station into ISR memory (Radio mode only). [ DIRECT ] buttons Store a station into memory or recall it directly while in the Radio mode. UDB275MP...
-
Page 6: Display Items
Display Items LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. UDB275MP... -
Page 7: Precautions
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. INFORMATION FOR USERS: CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANU- FACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL. UDB275MP... -
Page 8: Handling Compact Discs
Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may get caught in the internal mechanism and damage the disc. UDB275MP Note on compact discs Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen. -
Page 9: Remote Control
Use only the designated battery. When replacing the battery, insert properly, with + /- polarities oriented correctly. Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. Dispose of used batteries properly. UDB275MP... -
Page 10: Functions Of Remote Control Unit Buttons
[ RPT ] No function. [ RDM ] No function. ∗ Some of the corresponding buttons on the main unit and remote control unit have different functions. UDB275MP MP3/WMA CD-DA ( Disc and USB ) Play the first track.Top play. -
Page 11: Operations
1. Push the [ PUSH OPEN ] cover to open the flip down cover that consists of the following buttons: [ DIRECT ] [ BAND ] [ A-M ] [ Z-EHCR ] [ ADJ ] [ ISR ] Clock display Main display Clock Display UDB275MP... -
Page 12: Adjusting The Balance
flipping down, you can close the cover back and push 2 sides of the cover to return to normal condi- tion. UDB275MP Audio mode adjustments 1. Press the [ A-M ] button to select the Adjustment mode. The mode switches as follows each time... -
Page 13: Aux Function
“Selecting AUX IN sensitivity” on page 24 for details. ] button, the Remove the audio jack from AUX mode will revert to Radio mode automati- cally. ( Z-EHCR 2 ) [ AUX ] input during UDB275MP... -
Page 14: Radio Operations
Step tuning: Press the [ ] button to perform manual tuning. UDB275MP Preset memory function Preset memory function can store up to 24 stations: six stations for each of FM1, FM2, FM3 and AM. -
Page 15: Cd/Mp3/Wma Operations
COPY PROTECT MUSIC. Then, reconstruct files. Notes: Personally constructed WMA files are used at your own responsibility. Disabling DRM can be done if the file is ripped from logo are ® OPTIONS COPY MUSIC MUSIC RECORD RIP MUSIC tab, then UDB275MP... -
Page 16: Folder Structure
Folder structure 1. A disc with a folder having more than 8 hierar- chical levels will be impossible. UDB275MP Number of files or folders 1. Up to 255 files can be recognized per folder. Up to 255 files can be played. -
Page 17: Ejecting The Cd
15 seconds and this will not automatically switch to CD/MP3/WMA mode. For CD/MP3/WMA playback, please refer to “CD/USB Common Operations”. Radio... indicator will lit on if the mark and CD-ROMs ] button, then the CD will be eject- UDB275MP... -
Page 18: Usb Operations
If the USB memory device supports mul- tiple partitions, only the first partition will be supported. UDB275MP The order in which tracks are recorded may differ depending on the USB memory device connected ( the actual playback order may not be the same as that indicated on your computer’s display ) . -
Page 19: Hot Plugging Function
Remove the USB memory device from the port during USB mode, the unit will revert to Radio mode automatically. indica- Alternatively, user can remove USB memory de- vice at any mode. It is safe to remove USB memory device during track playing. Radio... UDB275MP... -
Page 20: Cd/Usb Common Operations
The arrangement is shown below. MP3/WMA: The arrangement is shown below. ∗ For track number more than 999, only the last 3 digits will be displayed. UDB275MP Title display mode MP3/WMA: 1. There are 5 types of display for the Title Display mode. -
Page 21: Selecting A Track
] button for taining MP3/WMA files and start playing from the first track in the folder. 1. Press the [ F-UP ] button to move the next folder. 2. Press the [ F-DN ] button to move the previous folder. UDB275MP... -
Page 22: Top Function
∗ All scan play starts from the next track after the track currently being played. UDB275MP Repeat play CD-DA, MP3/WMA : This function allows you to play the current track repeatedly. -
Page 23: Operations Common To Each Mode
3-1. Turn the [ ROTARY ] knob to select “ON” or “OFF”. To scroll automatically. OFF: To scroll just 1 time when the title was changed or the [ TITLE ] button was pressed for 1 second or longer. Message knob UDB275MP... - Page 24 Each time you turn the [ ROTARY ] knob, the setting changes in the following order: MUTE UDB275MP OFF: This unit continues normal operation even when the cellular phone is used. You can listen to your telephone calls from the speakers connected to this unit.
- Page 25 Note: Since “R0 G0 B0” will not display anything, thus all values are prevented from setting to 0 at the same time. COLOR INDIGO-BLUE SURF-BLUE SILKY-WHITE AQUA-GREEN FRESH-GREEN LEAF-GREEN WARM-AMBER PASSION-RED VIVID-PINK PALE-PINK DARK-VIOLET PURE-PURPLE U-COLOR1 U-COLOR2 U-COLOR3 UDB275MP...
-
Page 26: Troubleshooting
Nothing happens when button are pressed. Display is not accurate. No sound heard. UDB275MP Cause Fuse is blown. Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. -
Page 27: Troubleshooting
Use ISO9660 level 1, 2 or JOLIET or Romeo rect. file system. The song may be copy Disable DRM as describe in the chapter “To protected ( DRM ) . disable DRM ( Digital Rights Management ). ” Measure UDB275MP... - Page 28 U n a b l e t o p l a y b a c k songs. UDB275MP Cause MP3/WMA files are ab- Write MP3/WMA files onto the USB memory sent in a USB memory device properly.
-
Page 29: Error Displays
System: Compact disc audio system Usable Discs: Compact disc Frequency Response: 10 Hz to 20 kHz (± 3 dB ) Signal-to-Noise Ratio: 85 dB ( 1 kHz ) IHF-A Dynamic Range: 80 dB ( 1 kHz ) Harmonic Distortion: 0.01% Measure Measure UDB275MP... - Page 30 If this is not done, severe damage to the source unit may happen. UDB275MP Power Output: 19 W RMS x 4 Channels at 4 Ω and ≤ 1% THD+N Signal to Noise Ratio: 86 dB ( reference: 1 W into 4Ω...
- Page 31 Clarion Co., Ltd. PE-2979B All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. 280-8530-00 Printed in Malaysia / Imprimé en Malaisie / Impreso en Malasia...
