Summary of Contents for anko KP398

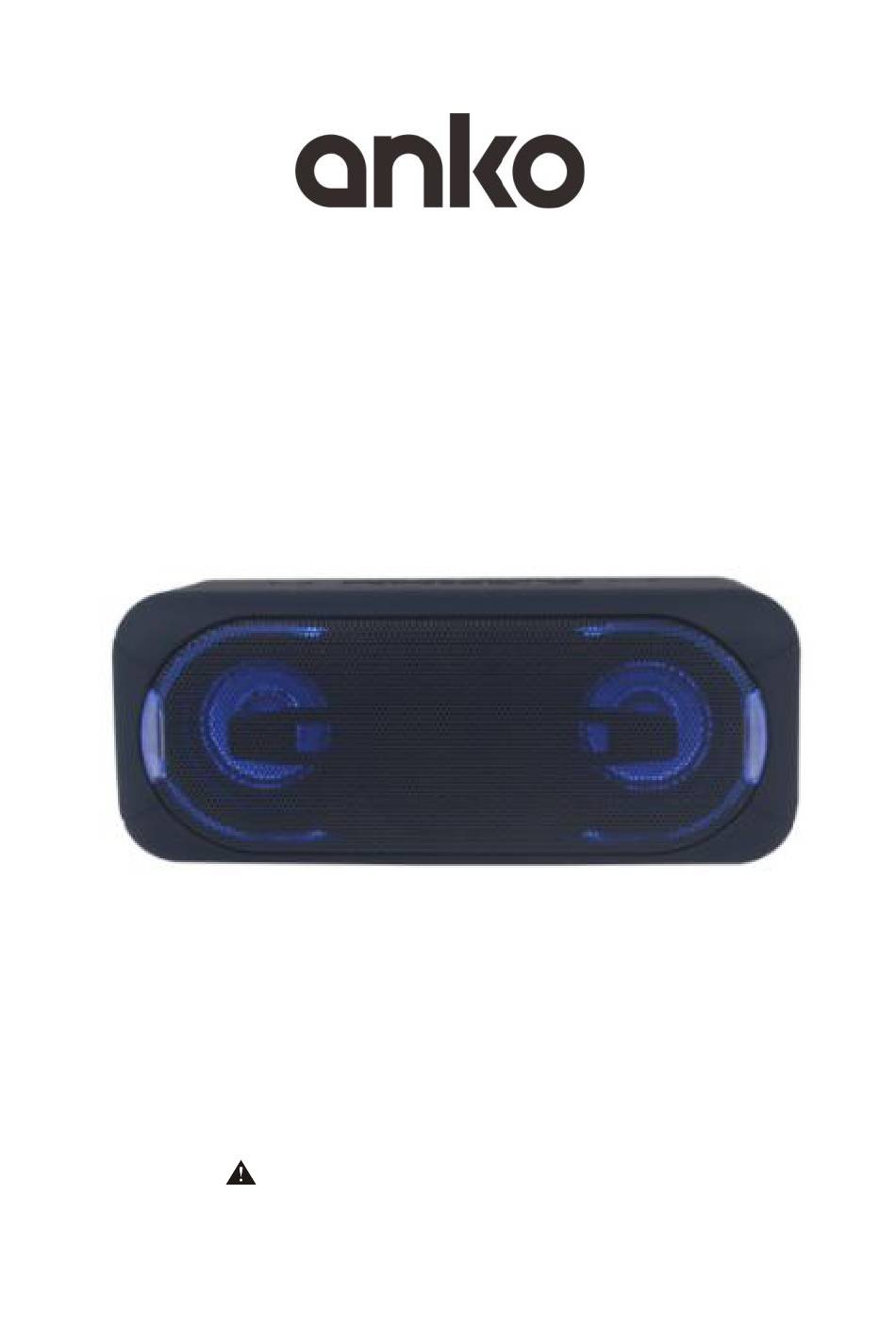

- Page 1 Instruction Manual Bluetooth Portable Speaker Model: KP398 42750475 IMPORTANT: Please read before using and keep for future reference. Unit must be fully charged before use.
-
Page 2: Important Notes
IMPORTANT NOTES INTRODUCTION Thank you for buying this product. Please read through these operating instructions, so that you will know how to operate your equipment properly. After you finished reading the instructions manual, put it in a safe place for future reference. CAUTION ... -
Page 3: Location Of Controls
LOCATION OF CONTROLS NAME OF CONTROLS Power ON/OFF button Bass button Volume + button Speakers Volume – button Speaker grill Play/Pause/Answer button 10. DC IN Jack Light button 11. AUX IN jack Pair button... -
Page 4: Basic Function
GETTING STARTED POWER SOURCE This unit works with a built-in rechargeable Li-ion battery, it can be recharged via DC 9V 1.3A adapter (included). The charging time is around 4 hours, and the playback time is around 8 hours at 50% volume after full charged. Plug the tail of adapter into DC IN socket on unit and the plug into household AC outlet, the POWER button will light up, when the battery is fully charged, the POWER button will turn off. -
Page 5: Bass Adjustment
BASS ADJUSTMENT Press the EX BASS button on unit to increase the bass effect, the EX logo will light up. Press it again to turn the BASS effect off. FLASHING LIGHT There are 9 flashing modes of the disco light, press the LIGHT button on unit to choose the desired mode: “LIGHT 01”... -
Page 6: Bluetooth Operation
BLUETOOTH OPERATION 1. When the unit is turn on, the default mode is Bluetooth mode, the PAIR indicator will flash at high speed. 2. Turn on the Bluetooth function on the external device, scan “KM42750475” and connect, then input the password 0000 if required, the PAIR indicator will light up to indicate connection done. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS GENERAL Power Requirements AC100-240V~60/50Hz DC 9V 1.3A Power consumption Power output 11Wx2 AUX in jack 3.5mm Work temperature 5°C - +35°C Bluetooth Version V5.0 Reception Range 10 meter (line-of-sight distance) Compatible Bluetooth profiles Advanced Audio Distribution Profile (A2DP) ACCESSORIES Instruction Manual x 1pc AC Adapter...
