Universal Remote Control 4 Function DTV Remote Control Operating Instructions

Operating Instructions
Introduction
1
The remote control is designed to
For 4 Function
operate the DTV series set top boxes
DTV Remote Control and the majority of TV, VCR/DVD and
AUDIO equipment on the market.
2 Replacing Batteries
Before you program or operate the
remote control, you must install two
new AA alkaline batteries.
STEP1 Remove the battery compartment cover
on the back of your remote control.
STEP2 Check battery polarity carefully,
and install the batteries as shown
in the illustration below.
STEP3 Replace the battery compartment cover.
4 Operations
Default State :
Device Default: DTV Cable box.
Volume Default: TV volume and mute
through the TV, with the option of
controlling volume and mute through
the Cable box or Audio. Refer to Section
F for programming the volume and mute
through your Cable box or Audio.
System On/Off button:
This button is designed to send out
Universal Remote Control, Inc.
power commands for two, three or all
www.universalremote.com
four devices with one button press.
OCE-0002A Rev 12(05/31/07)
Please refer to section E for details.

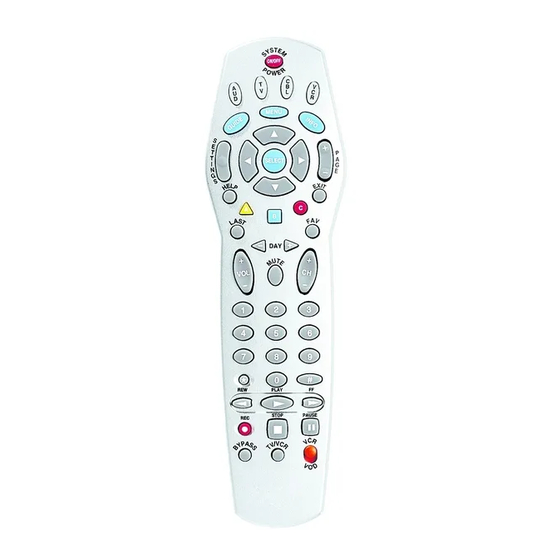

Button Functions
3
Programming the Remote Control
5
A. Programming For Your Devices.
The remote control can be programmed by pressing in a three digit code number
that corresponds to particular manufacturers and brands of Audio/Video
equipment. The three-digit code numbers are listed in the code table of the
instruction manual.
STEP1 Turn on the equipment you wish to program. (TV, VCR, DVD or AUDIO).
STEP2 Press the [DEVICE] button (TV , VCR or AUD) to be programmed and the
[SELECT] button simultaneously for 3 seconds. The device LED will turn
on indicating the unit is ready to be programmed.
*Tip : The device LED will light on for 20 seconds. The next step must be entered
while the LED is on.
STEP3 Point the remote control toward the equipment and enter the three-digit
code number assigned to your brand from the code tables.
*Tip : The equipment will turn off when STEP3 Press the [CH+] or [CH-] button
the correct three-digit code one step at a time or keep it
number has been entered. You
pressed. The remote will emit
can verify you have selected the
a series of Power ON/OFF
correct code by pressing the
commands. Release the [CH+]
[MUTE] button, the equipment
or [CH-] button as soon as the
should turn on or turn off.
equipment turns off.
*Note : If there is more than one
*Tip : You can verify that you selected
three-digit number listed for your
the correct code by pressing the
brand, try one code number at a time
[MUTE] button. The TV should
until your equipment turns off.
either turn on or turn off.
STEP4 Store the three-digit code
STEP4 Press the same [DEVICE]
number by pressing the same
button to store the code. The
[DEVICE] button once again.
Device LED will blink twice to
The device LED will blink
confirm that the code has
twice to confirm that the
code has been stored. been stored.
*Note : Try all the functions on the
C. To Find the Three Digit
remote control. If any of the functions
do not work as they should, repeat from
Code Number That was
Step 2 using the next three-digit code
Stored in the Device.
number from the same brand list. Make
sure that the VCR/VOD button is in the
STEP1 Press the [DEVICE] button (TV,
VCR position when using your VCR.
VCR or AUD) you wish to verify
and the [SELECT] button
simultaneously for 3 second.
B. Auto Search Method.
The device LED will turn on.
If the three-digit code numbers assigned
*Tip : The device LED will light on for
to your brand do not turn off your
20 seconds. The next step must
equipment or the code tables do not list
be entered while the LED is on.
your brand, you can use the Auto Search
Method to find the correct three-digit
STEP2 Press the [INFO] button.
code number for your equipment by the
following steps: The device LED will blink number of
times indicating the number of each
STEP1 Turn on the equipment you
digit of the code number. Each digit is
wish to operate.
separated by a 1 second pause of the
STEP2 Press the [DEVICE] button (TV,
LED being turned off.
VCR or AUD) to be programmed
Example : One blink, three blinks and
and the [SELECT] button
eight blinks with an interval of 1 second
simultaneously for 3 seconds.
of LED being turned off, indicates the
The device LED will turn on.
code number 138.
*Tip : The device LED will light on for
20 seconds. The next step must Note : Ten blinks is equal to the
be entered while the LED is on.
number 0.
D. Programming a second TV STEP3 Press the [DEVICE] button
you wish to store in the
to VCR Mode.
[SYSTEM ON/OFF] button
STEP1 Turn on the TV you wish to
and repeat this until you
program.
stored all the power
STEP2 Press the [VCR] button to be commands into
programmed and the [SELECT] [SYSTEM ON/OFF] button.
button simultaneously for 3
STEP4 Press the [CH+] button to save
seconds. The [VCR] device
the power commands you
LED will turn on.
stored. The [CBL] device LED
*Tip : The device LED will light on for
will blink twice to confirm the
20 seconds. The next step must
saving.
be entered while the LED is on.
F. Program the Volume
STEP3 Press the [TV] button to
Controls.
access the TV code table.
By following the steps below, you
STEP4 Point the remote control
toward the equipment and can program the volume controls
enter the three-digit code (Volume UP, Volume Down and
number assigned to your TV MUTE) to your TV, VCR and Audio.
brand from the code tables.
The default volume control settings
on the remote control is TV volume
*Tip : You can verify that you selected
control. If you wish you can control
the correct code by pressing the
[MUTE] button. The equipment the volume via your cable box or
should either turn on or turn off. audio equipment. Use the following
steps to change the volume control
STEP5 Store the three-digit code
settings:
number by pressing the [VCR]
button once again. The [VCR]
STEP1 Press the [CBL] button and
device LED will blink twice to
the [SELECT] button
confirm that the code has
simultaneously for 3 seconds.
been stored.
The [CBL] device LED will
turn on.
E. Programming the
*Tip : The device LED will light on for
20 seconds. The next step must
System On/Off Button.
be entered while the LED is on.
This button is pre-programmed to turn on
STEP2 Press the [ VOL + ] button.
all devices with one button press,
however you can also program to turn on
STEP3 Press the [ CBL ], [ AUD ]
one or two devices by following these
(whichever applicable) button.
steps:
The [CBL] device LED will
blink twice to confirm the
STEP1 Press the [CBL] button.
programming.
STEP2 Press the [SYSTEM ON/OFF]
button and the [SELECT] To return to original state:
button simultaneously for 3
If you wish to restore the TV volume
seconds. The [CBL] device
control in CABLE mode, repeat the
LED will turn on for 20
above steps by pressing [ TV ] button in
seconds.
G. Programming For
Advanced Function.
In the CABLE mode, the [ ] button can
*
be programmed to act as a macro or
favorite channel button to send out up
the
to 10 commands with one button press.
STEP1 Press the [CBL] button to
select the CABLE mode.
STEP2 Press the [ ] button and
*
[SELECT] button simultaneously
for 3 seconds. The [CBL] device
LED will turn on for 20 seconds.
STEP3 Press up to 10 buttons you
wish to store. The [CBL] button
LED will blink once for each
command entered.
STEP4 Press the [CH+] button to store
the functions that are selected.
The [CBL] device LED will blink
twice to confirm the storage of
functions.
H. Low Battery Warning.
When the battery is low (2.0V-2.3V) and
needs to be replaced with fresh
batteries, device LED will blink 2 times
in sequence whenever a [DEVICE]
button is pressed to turn on equipment.
I. Memory Lock System.
This remote control is designed to
retain programmed memory for 10
years even after batteries are removed
from the remote control.
J. Write your device Set-up codes.
TV Set-up Code Number :
VCR Set-up Code Number :
AUDIO Set-up Code Number :
