Summary of Contents for Universal Electronics URC-3021
- Page 1 CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 1...
-
Page 2: Table Of Contents
CTGAE3P 3021 manual booklet TABLE OF CONTENTS Introduction ..............3 Features And Functions . -
Page 3: Introduction
CTGAE3P 3021 manual booklet INTRODUCTION The One For All 3 Device Universal Remote Control (URC-3021) is designed to remotely operate up to three home entertainment devices. It also features intuitive and easy-to-use keys for instant control of DVD and PVR (or DVR) components. -
Page 4: Features And Functions

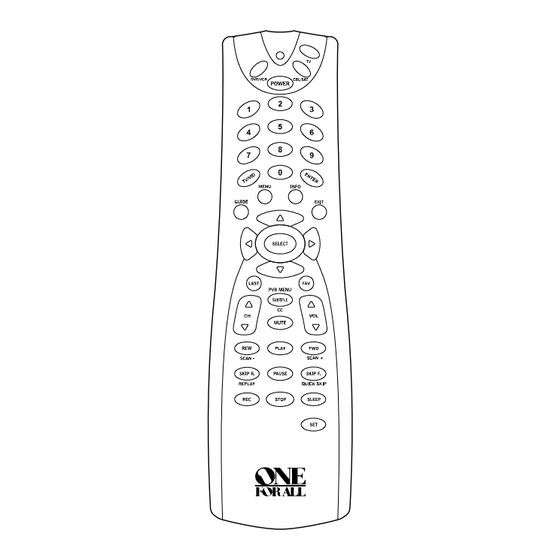

Page 4 FEATURES AND FUNCTIONS Use the illustration below to locate features on the One For All 3 Device Universal Remote Control (URC-3021) and then study the Key Charts the next two pages) to learn how they function. To find out what type of devices can be controlled by each device key after programming, see the on page 6. -
Page 5: Key Charts
CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 5 Key Charts When the LED (red light) blinks, the remote control is working and (after programming) is sending signals. Press DVD/VCR, CBL/SAT, or TV once to select a desired home entertainment device to control. Also see the Device Table on page 6. -
Page 6: Device Table
CTGAE3P 3021 manual booklet Use REW, PLAY, FWD, PAUSE,or STOP to control your VCR, PVR (or DVR), or DVD player. For a DVD player, use SKIP F. or SKIP R. to view the next or previous chapter. For a VCR, PVR (or DVR), or VOD (if available), use SCAN- or SCAN+ to quickly scan forward or back through a video program. -
Page 7: Installing Batteries
CTGAE3P 3021 manual booklet INSTALLING BATTERIES On the remote control’s back, push the tab and lift off the battery cover. Obtain two (2) new AAA alkaline batteries. Match the + and – marks on the batteries to the + and – marks in the battery case, then insert the new batteries. -
Page 8: Programming Device Control
CTGAE3P 3021 manual booklet PROGRAMMING DEVICE CONTROL The One For All 3 Device Universal Remote Control is preprogrammed at the factory to operate an RCA TV, a Toshiba DVD player, and a Motorola cable box. To control devices other than the default brands, perform the fol- lowing steps;... -
Page 9: Searching For Your Code
CTGAE3P 3021 manual booklet SEARCHING FOR YOUR CODE If your device does not respond to the remote control after trying all codes listed for your brand, or if your brand is not listed at all, try searching for your code. NOTE: Before performing a code search for a DVD player or a VCR, turn on the device and insert the required media. -
Page 10: Programming A Master Power Macro
CTGAE3P 3021 manual booklet Repeat step 4 (on the previous page) three more times for remaining digits. Use digit, and its in the remaining TV code boxes on page 8. 6. To check for codes of other devices, repeat steps 1 through 5 (starting on the previous page), but substitute the appropriate device key for each device you are check- ing.Write down the device’s code digits in the appropriate... -
Page 11: Clearing The Master Power Macro
CTGAE3P 3021 manual booklet PROGRAMMING A MASTER POWER MACRO (cont’d) Clearing The Master Power Macro Press and hold then release Enter once. Press and hold . The RE-ASSIGNING DEVICE KEYS The One For All 3 Device Universal Remote Control can be set to control a DVD player and a VCR (or a PVR) or a second DVD player by re-assigning the unused key as follows:... -
Page 12: Programming Favorite Channel Scan
CTGAE3P 3021 manual booklet PROGRAMMING FAVORITE CHANNEL SCAN In the mode, you can store a list of up to 10 favorite channels, CBL/SAT in any order, that will be immediately scanned when on the previous page). Using Channel Scan NOTE: Favorite channels can only be programmed for one mode. After programming, if FAV is pressed while in another mode, the remote control will start scanning all channels instead (if applicable to the selected device). -
Page 13: Unlocking Volume Control For A Single Device (Individual Volume Unlock)
CTGAE3P 3021 manual booklet CHANGING VOLUME LOCK (cont’d) Locking Volume Control To One Mode (Global Volume Lock) Enter Now, when you press the selected device (e.g., of the mode you have selected. Unlocking Volume Control For A Single Device (Individual Volume Unlock) After performing mode key where you want volume to be unlocked (e.g.,... -
Page 14: Clearing Custom Programming
CTGAE3P 3021 manual booklet CLEARING CUSTOM PROGRAMMING The One For All 3 Device Universal Remote Control contains an program. If desired, you can use it to clear custom program- Feature Reset ming, except your setup codes and reassigned device keys, and reset them to original factory settings.Also see IMPORTANT: Executing this program will erase all your custom settings for Power Macro, Favorite Channels, and Volume Lock. -
Page 15: Troubleshooting
CTGAE3P 3021 manual booklet TROUBLESHOOTING PROBLEM: (red light) does not blink when you press a key. SOLUTION: Replace batteries with two new AAA alkaline batteries. PROBLEM: blinks when you press a key, but home entertain- ment device does not respond. SOLUTION: Make sure the remote control is aimed at your home entertainment device and is not farther than 15 feet... -
Page 16: Lifetime Warranty
$3.95 to cover postage and handling. It will be repaired or replaced at the manufacturer’s option. The manufacturer reserves the right to substitute a currently manufactured model with equal or superior features. One For All: (330) 405-8655 URC-3021 March 2004... -
Page 17: Additional Information
One For All 3 Device ........ -
Page 18: Manufacturer's Codes
CTGAE3P 3021 manual booklet MANUFACTURER’S CODES Setup Codes for Cable Boxes Americast 0899 Bell South 0899 Director 0476 General Instrument 0476, 0810, 0276 GoldStar 0144 Hamlin 0009 Jerrold 0476, 0810, 0276 Memorex 0000 Motorola 0476, 0810, 0276 Pace 0237 Panasonic 0000, 0107 Paragon 0000... -
Page 19: Setup Codes For Pvrs (Or Dvrs)
CTGAE3P 3021 manual booklet MANUFACTURER’S CODES Setup Codes for PVRs (or DVRs) Panasonic 0616 Philips 0618 ReplayTV 0614, 0616 Setup Codes for Satellite Receivers AlphaStar 0772 DirecTV 0392, 0566, 0639, 0247, 0749, 1749, 0724, 0819, 1856 Dish Network System 1005, 0775 Dishpro 1005, 0775 Echostar... -
Page 20: Setup Codes For Tv/Dvd Player Combos
CTGAE3P 3021 manual booklet Hitachi 0145, 1145 Infinity 0054 Inteq 0017 0054 0000 0463, 0053 Jensen 0761 0180 0765, 0767 0180, 0030 Kenwood 0030 Kioto 0706 0047, 0054, 0154, 0156, 0178 0150, 0030, 0178 0060, 0030 Magnavox 0054, 0706, 0030, 1454, 1254 Marantz 0054, 0030 Matsushita... -
Page 21: Setup Codes For Tv/Vcr/Dvd Player Combos
CTGAE3P 3021 manual booklet MANUFACTURER’S CODES Setup Codes For TV/VCR Combos, continued 0240 Mitsubishi 0807 Optimus 0162 Orion 1479, 0479 Panasonic 0162, 1035 Penney 0240, 1035, 1237 Quasar 0162, 1035 RadioShack 0000 0240, 0807, 1060, 1035 Samsung 1014 Setup Codes For TV/VCR/DVD Player Combos Sharp 0807 Setup Codes For VCRs... - Page 22 CTGAE3P 3021 manual booklet Optimus 1062, 0162, 0037, 0048, 0104, 0432 Orion 0184, 0209, 1479, 0479 Panasonic 1062, 0035, 0162, 1035, 0616 Penney 0035, 0037, 0240, 0042, 0038, 1035, 1237 Pentax 0042 Philco 0035 Philips 0035, 0081, 0618 Pilot 0037 Pioneer 0067 Polk Audio...
