Canon RF 100-500mm F4.5-7.1 L IS USM Instructions Manual page 20

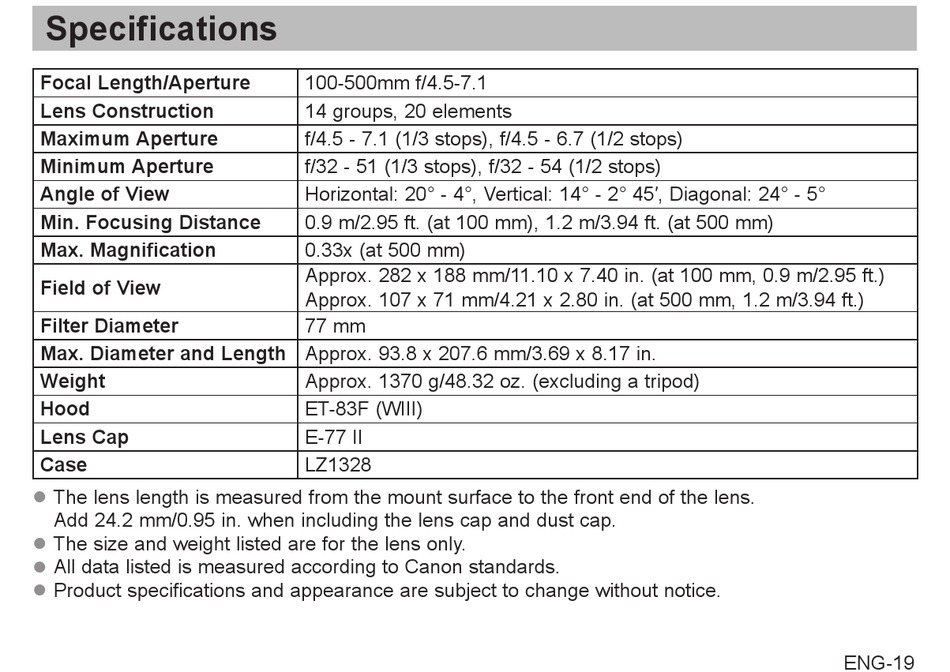

Specifications
Focal Length/Aperture
Lens Construction
Maximum Aperture
Minimum Aperture
Angle of View
Min. Focusing Distance
Max. Magnification
Field of View
Filter Diameter
Max. Diameter and Length Approx. 93.8 x 207.6 mm/3.69 x 8.17 in.
Weight
Hood
Lens Cap
Case
The lens length is measured from the mount surface to the front end of the lens.
z
Add 24.2 mm/0.95 in. when including the lens cap and dust cap.
The size and weight listed are for the lens only.
z
All data listed is measured according to Canon standards.
z
Product specifications and appearance are subject to change without notice.
z
100-500mm f/4.5-7.1
14 groups, 20 elements
f/4.5 - 7.1 (1/3 stops), f/4.5 - 6.7 (1/2 stops)
f/32 - 51 (1/3 stops), f/32 - 54 (1/2 stops)
Horizontal: 20° - 4°, Vertical: 14° - 2° 45', Diagonal: 24° - 5°
0.9 m/2.95 ft. (at 100 mm), 1.2 m/3.94 ft. (at 500 mm)
0.33x (at 500 mm)
Approx. 282 x 188 mm/11.10 x 7.40 in. (at 100 mm, 0.9 m/2.95 ft.)
Approx. 107 x 71 mm/4.21 x 2.80 in. (at 500 mm, 1.2 m/3.94 ft.)
77 mm
Approx. 1370 g/48.32 oz. (excluding a tripod)
ET-83F (WIII)
E-77 II
LZ1328
ENG-19
