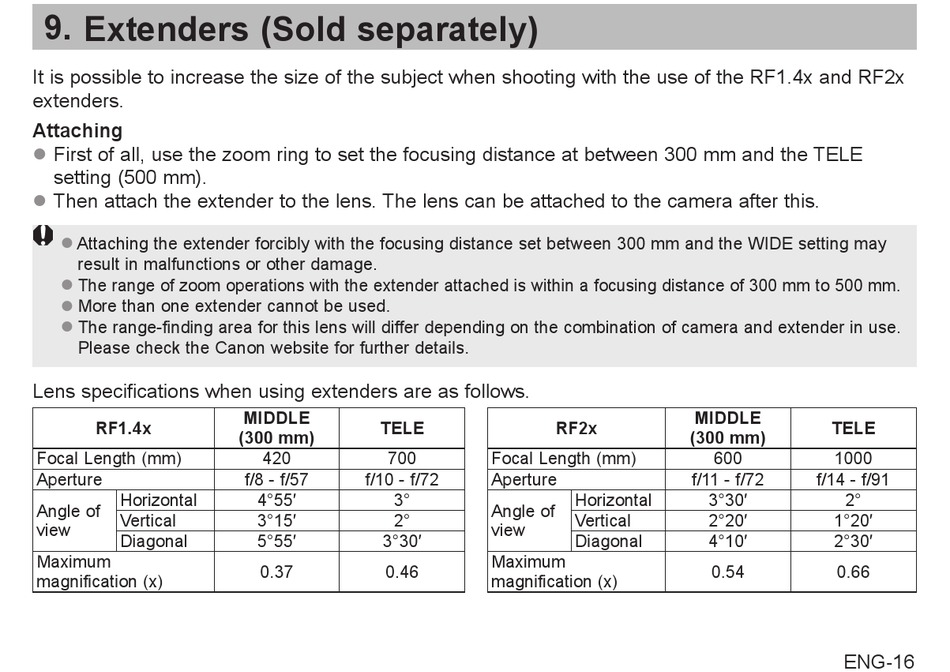

9. Extenders (Sold separately)
It is possible to increase the size of the subject when shooting with the use of the RF1.4x and RF2x
extenders.
Attaching
First of all, use the zoom ring to set the focusing distance at between 300 mm and the TELE
z
setting (500 mm).
Then attach the extender to the lens. The lens can be attached to the camera after this.
z
Attaching the extender forcibly with the focusing distance set between 300 mm and the WIDE setting may
z
result in malfunctions or other damage.
The range of zoom operations with the extender attached is within a focusing distance of 300 mm to 500 mm.
z
More than one extender cannot be used.
z
The range-finding area for this lens will differ depending on the combination of camera and extender in use.
z
Please check the Canon website for further details.
Lens specifications when using extenders are as follows.
RF1.4x
Focal Length (mm)
Aperture
Horizontal
Angle of
Vertical
view
Diagonal
Maximum
magnification (x)
MIDDLE
TELE
(300 mm)
420
700
f/8 - f/57
f/10 - f/72
4°55'
3°
3°15'
2°
5°55'
3°30'
0.37
0.46
RF2x
Focal Length (mm)
Aperture
Horizontal
Angle of
Vertical
view
Diagonal
Maximum
magnification (x)
MIDDLE
TELE
(300 mm)
600
1000
f/11 - f/72
f/14 - f/91
3°30'
2°
2°20'
1°20'
4°10'
2°30'
0.54
0.66
ENG-16
