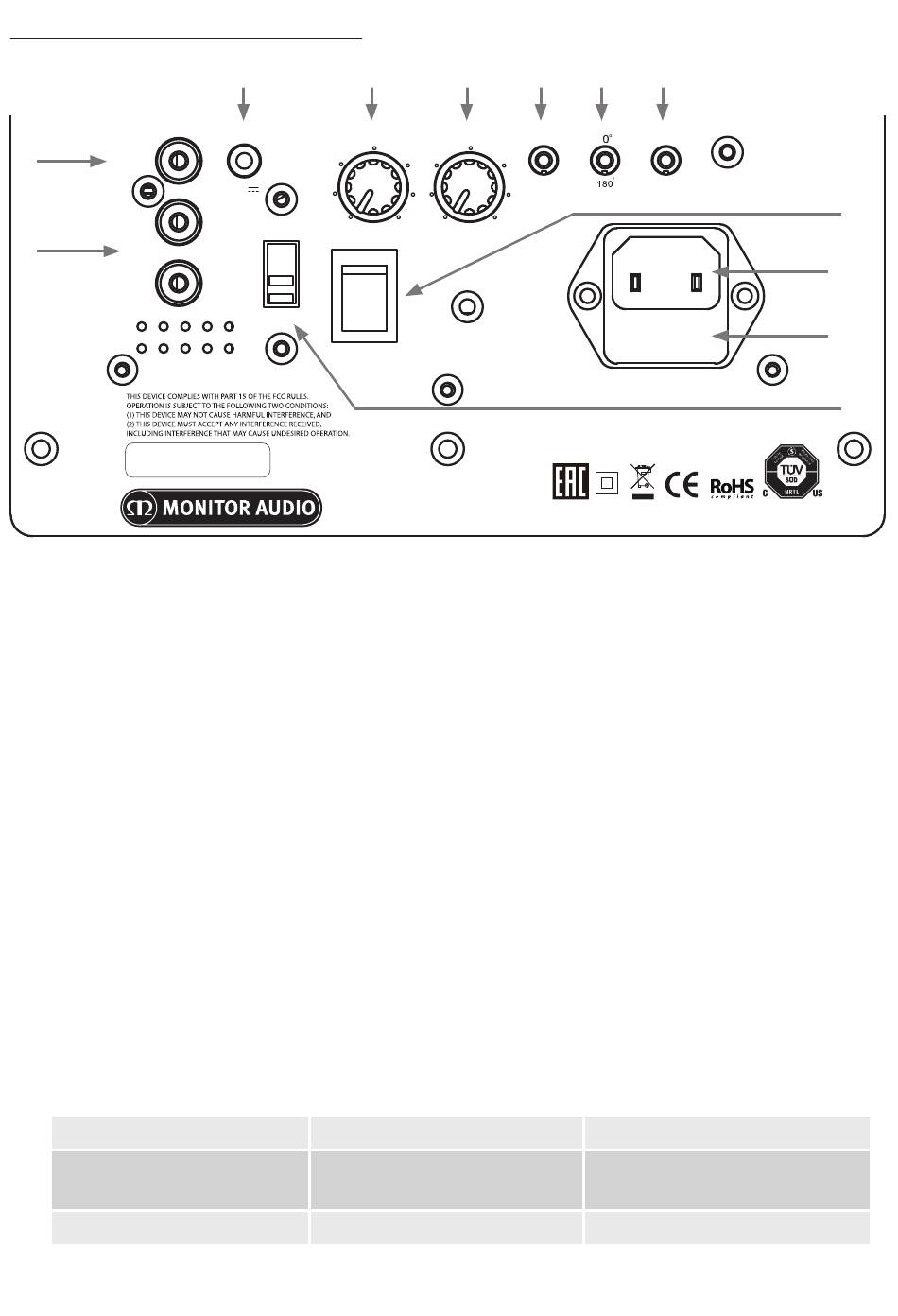

Amp Panel & Controls for MRW-10
INPUT
2
LFE
R
1
L
1. RCA Stereo Inputs (Left & Right)
This is the method of signal input when using a stereo amplifier system, connection can be provided by a pair of high-
quality signal cables from the pre-out section of an amplifier. The crossover frequency will need to be set if using this
method of connection. If using the Bronze Series speakers set the crossover dial to approximately 80Hz. This may vary
depending on room and tastes.
Note:- cable lengths should not exceed 10 metres to avoid interference from other electrical appliances.
2. LFE Input (RCA Type)
This input is to be used when connecting the subwoofer to an AV amplifier/ receiver. When using the LFE input, the crossover
frequency dial is not used. This is due to the crossover function being controlled by the AV amplifier/ processor to which
it is connected.
3. 12 Volt Trigger Input ~ Centre Pin = +12Vdc
For external power control from AV amplifier/ receiver to the MRW10. Monitor Audio recommend using this function and a
lead is supplied. A 12 volt signal is supplied by the AV amp/receiver and tells the MRW10 to turn on from standby mode.
This allows a more accurately controlled auto on/off function, and is far more energy efficient. When using the 12v trigger,
the Mode Switch (8) can be in either position, for it to function correctly.
4. Crossover Frequency Control
The crossover frequency control only operates when using the RCA stereo input (1) and is used to set the upper frequency
limit (low pass) of the subwoofer. The crossover control should be set in accordance with the size or bass output of the main/
satellite speakers. When using the Bronze Series speakers, set this to between 50 - 100Hz (depending on additional speakers).
Experimentation is advisable.
Type of Main Speaker
Small stand-mount/ bookshelf
speaker
Floor Standing Speaker
