USSC Wondercoal 2941 Owner's Manual

Thermostat controlled wood burning circulator
Hide thumbs

Advertisement

Table of Contents

Enlarged version

HOW TO ORDER REPAIR PARTS

This manual will help you to obtain efficient, dependable service
from the heater, and enable you to order repair parts correctly.
Keep this manual in a safe place for future reference.
When writing, always give the full model number which is on the
nameplate attached to the inside of the cabinet door of the
heater.
When ordering repair parts or options, always
give the following information as shown in this list:
1. The PART NUMBER
2. The PART DESCRIPTION
3. The MODEL NUMBER: 2941
4. The SERIAL NUMBER:________________
Before installing your heater, fill in the serial number of your
heater in the space provided above.
United States Stove Company
227 Industrial Park Rd.
P.O.Box 151
South Pittsburg, TN 37380
(423) 837-2100
www.USSTOVE.com
OWNERS MANUAL
Model 2941

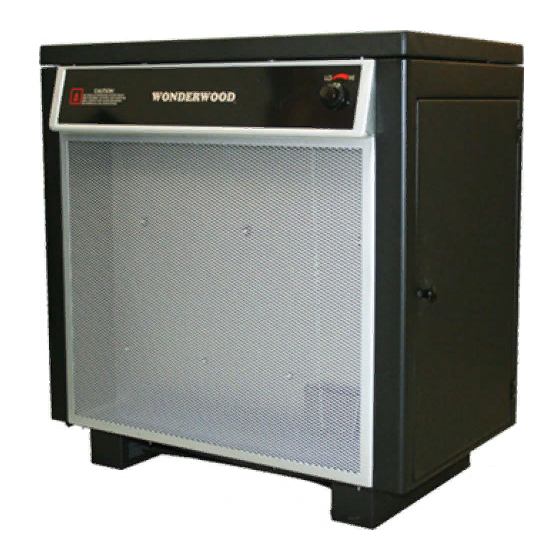

WONDERWOOD
THERMOSTAT CONTROLLED WOOD BURNING CIRCULATOR
*ASSEMBLY
*INSTALLATION
*OPERATION
*REPAIR PARTS
SAFETY NOTICE:
If this heater is not properly installed, a house fire may result.
For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and
inspection requirements in your area.
CAUTION:
Read all instructions carefully before starting the installation
or operation of this heater.
Improper installation may void your warranty.
DO NOT USE THIS HEATER IN A MOBILE HOME OR TRAILER
Tested to UL 1482 & CAN/ULC-S627
United States Stove Company
227 Industrial Park Rd.
P.O.Box 151
South Pittsburg, TN 37380
S
C
U
S
(423) 837-2100
www.USSTOVE.com
85947-J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wondercoal 2941 and is the answer not in the manual?

Questions and answers

Related Manuals for USSC Wondercoal 2941

Summary of Contents for USSC Wondercoal 2941

  • Page 1: How To Order Repair Parts

    1. The PART NUMBER 2. The PART DESCRIPTION 3. The MODEL NUMBER: 2941 4. The SERIAL NUMBER:________________ Before installing your heater, fill in the serial number of your heater in the space provided above.

  • Page 2: Circulator Dimensions

    CHIMNEY CONNECTOR F36 BLOWER KIT An Optional Blower kit is available for the 2941 Wonderwood automatic wood burning circulator heater. If this kit is not available where you have purchased this Wonderwood heater, you can purchase the F36 Blower Kit directly from the factory. To order contact the United States Stove Company at the address and telephone number given on the back page.

  • Page 3: Safety Notice

    DETECTORS IN YOUR HOME IF NOT ALREADY INSTALLED. SAFETY NOTICE In the unlikely event that your 2941 "overfires" (a condition evidenced by elbows, stovepipes, and connectors glowing red in appearance or otherwise discoloring), then your installation is subject to excessive draft created by either a chimney too tall or too great in diameter in conjunction with its height, or some other factor of an indeterminate cause.

  • Page 4: Locating Heater

    STRAIGHT UP AND THROUGH THE WALL INSTALLATION 32 1/4" 4 3/4" 16" 17" FLOOR PROTECTOR SIDEWALL (TOP VIEW) REPAIR PARTS LIST - MODEL 2941 (SEE PAGE 18) Key No. 25" Fig. 3 35" 12" AUTOMATIC WOOD BURNING CIRCULATOR Description Qty.

  • Page 5: Chimney Connection

    Do not expect your stove or furnace to 1987, all heaters and furnaces create draft. Draft is not a function of the manufactured by United States Stove appliance. Draft is purely a function of Company should be installed using a the chimney.
  • Page 6 6" MIN. FLOOR PROTECTOR APPROVED COWL 3 FT. MIN. REPAIR PARTS AUTOMATIC WOOD BURNING CIRCULATOR HEATER MODEL NUMBER 2941 (SEE PAGE 16) REPAIR PARTS LIST KEY NO. PART NO. DESCRIPTION 89062 Cabinet Door Knob 83005 Screw (10-24 x 1/2) FL...
  • Page 7 VENTING INTO A FIREPLACE (Not recommended) Many people may wish to convert an Many prefabricated fireplaces fall into existing fireplace to heater use. Usually, the "zero-clearance fireplace" category. safe connection of stovepipe to a ma- This is a factory metal fireplace with sonry chimney requires more effort than multi-layered construction.
  • Page 8 FIREPLACE INSTALLATION Connection of the stovepipe directly into Install the stovepipe as far as possible the existing masonry chimney over the into the thimble, but not past the inside fireplace opening is the only approved of the flue lining. There should be a method.
  • Page 9 CABINET DOOR KNOB ASSEMBLY The door knob is mounted inside of the cabinet door to facilitate shipping and must be reversed for proper usage. To get cabinet door open, place hand under cabinet frame (right hand side of cabinet door) and push door out. INSTALL THE CABINET DOOR KNOB USING THE STEPS BELOW: 1.

  • Page 10: Connector Pipe Installation

    RULES FOR CONNECTOR PIPE INSTALLATION 1. The crimped end of the stovepipe fits 5. Seal each connector pipe joint with inside the heater flue collar. Install ad- furnace cement. Also seal the pipe at ditional pipe and elbow with the the chimney.
